| Prod Model: |
PUC1065 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standards: |

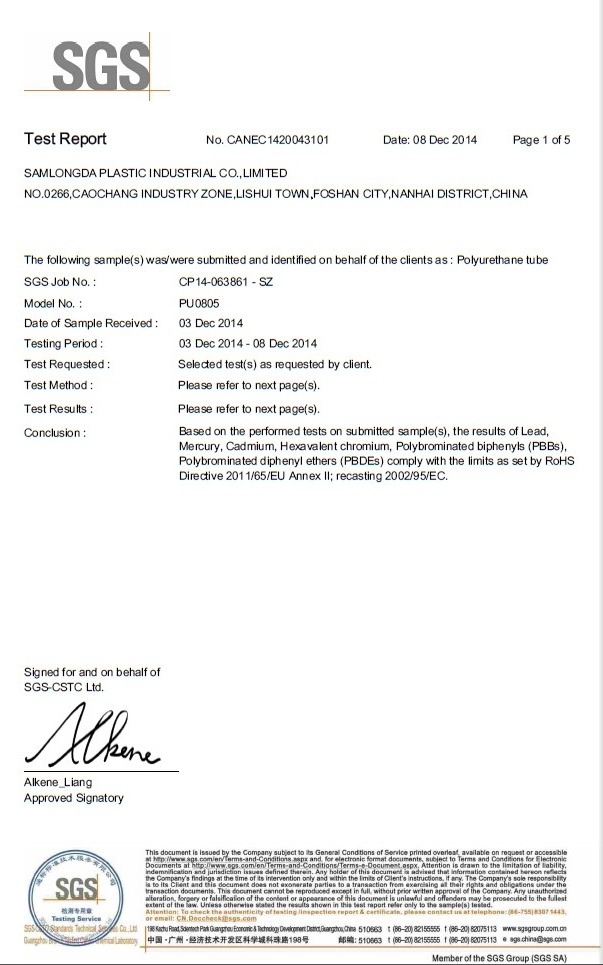

SGS, Rosh |
| Length: |
6m |
| Usage 1: |
Air Hose |
| Usage 2: |
Pneumatic Robot |
| Usage 3: |
Air Compressed System |
| Imported Material: |
EMS, Ube |
| Small Size: |
2mm |
| Usage In: |
Air |
| Brands: |
Samlongda or OEM |
| Hardness: |
95A or 98A |
| Color: |
Color |
| Material: |
PU |
| Capability: |
Air Hose |
Product Description

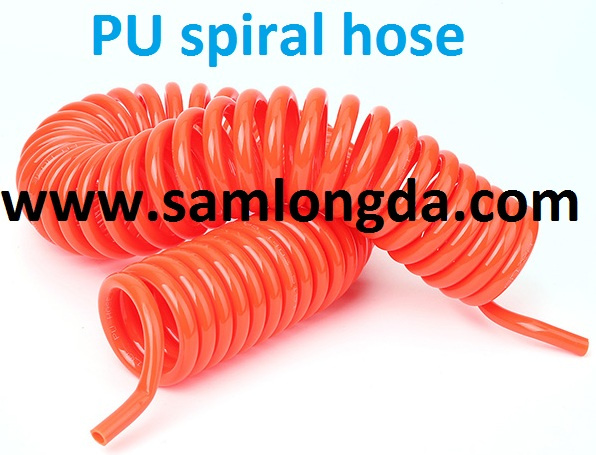

PU Spiral Air Hose, PU air hose,Pneumatic PU Spiral Tube from samlongda are made by 100% new TPU material from PU straight hose with imported material from Taiwan, Germany, Swden etc.
Polyurethane coil tube with other name: PU spiral hose are important elements of even the most basic pneumatic systems,also called Pneumatic tubing, robot tube, air hose etc. Assemble with pneumatic tubing, quick coupler for air line etc.
High elasticity Coil tube with 4hours heating process !
· Alternative to rubber and PVC hose.
· Lightweight and tough.
· Oil, grease & abrasion resistant.
· Flexible even in cold environments.
· PU spiral air hose Available with reusable fittings for easy on-the-job repair.
· Bend restrictors that prevents kinks at compressor and air tools.
*100% Brand New material !
*OEM service for world top 500 company from Europe !
*Quick delivery time --40GP per month ! About 18000pcs PU coil tube per 40GP container.

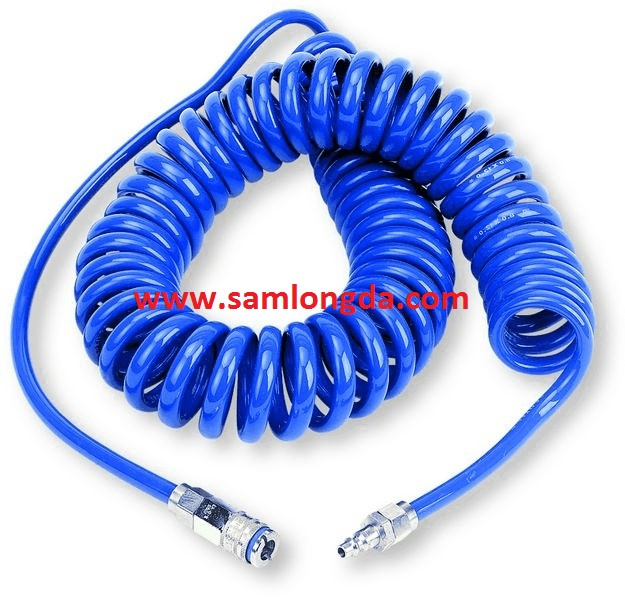

*Available with Brass NPT fittting, BSPT fitting, Swivel coupler etc.
PU recoil air hose Length: 6m, 7.5m, 9m, 12m, 15m etc.
| Code | Sizes(mm) | W.P. | Total Length | Spiral O.D. | Tails |
| OD | ID | bar | m (A) | mm(E) | mm(BD) |
| PUC0604 | 6 | 4 | 8 | 6, 9, 12, 15 | 38 | 0-500 |
| PUC0805 | 8 | 5 | 10 | 6, 9, 12, 15 | 63 | 0-500 |
| PUC1065 | 10 | 6.5 | 10 | 6, 9, 12, 15 | 78 | 0-500 |
| PUC1208 | 12 | 8 | 8 | 6, 9, 12, 15 | 82 | 0-500 |
| PUC1612 | 16 | 12 | 8 | 6, 9, 12, 15 | 130 | 0-500 |
SAMLONGDA Plastic Industrial Co., Ltd is the high tech enterprise of plastic tubing, Pneumatic tubing--Polyurethane tubing (PU tube) from 2005.
Our feature products are PU tube and Nylon tubing for Pneumatic system, which is made by 100% new raw material. We are continual in designing, developing, marketing other kinds of plastic tube, such as EVA Braid tubing, Nylon tubes(PA6 and PA 12 air brake hose), High pressure hoses, PE tubing for drinking water filter, Garden Hoses, extruded through the weave layflat hose, Japan quality PVC Braid Hose, concentrating our efforts to supply high quality pneumatic component & Parts.
Our Products range:
> Polyurethane Tubing (PU tube) for pneumatic system.
> TPU Braid Hose_high pressure
> Nylon Tubing_(PA 6 or PA 12 tubing)Hihg pressure & Temperature pneumatic system, painting industry.
> EVA Tubing_low pressure air tools, Anhydrous Ammonia & Liquid Fertilizers.
> Garden Hose_Garden watering in Wrap and Knitted structure.
> PE Tubing_drinking water system, RO water filter, low pressure pneumatic system;
> PVC Hose_normal industrial, Food industry, Irrigation system;
> Layflat Hose_Drip irrigation, Riego, water pumping;
> Pneumatic Component--Fitting, Quick Coupler, Auto hose reel, Air Blow Gun, Duster.
