| Prod Model: |
C0150L |
| Material: : |
Steel Bar |
| Finish: |
Hot DIP Galvanized ASTM a-153 |
| Usage: |
Pole Accessories |
| Standard: |
ANSI |
| Duty: |
Light Duty, Heavy Duty |
Product Description

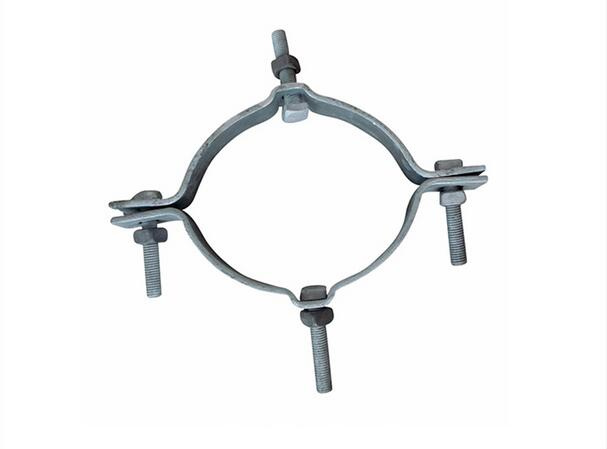

RE Pole banding clamp, hot dip galvanized, pole line hardware fittings, good price, large production.
1> These clamp are designed to adapt to circular and octagonal concrete steel pole. Alternatively can be adapted to wood poles at the end user option.
2>The C150H clamps are heavy duty type band, They are designed with forged reinforcing rib/stiffener on its corner bond for extra flexural, used for attaching brace for heavy primary line cross arm or side arm construction.
3>The C0150L series are used for light cross arm or side arm primary line construction.
4>Both clamps can be used for attaching extension arm, aerial cable attachment on straight run, attaching cable on corner run, down guying or deadend guying application.
Light Duty
Stock No. | Dimension mm
| Standard Pkg.
Qty./Bundle |
| Range mm | Inch | A mm | B mm | Width mm | Gauge mm |
| C0150L-06 | 127-152 | 5-6 | 152 | 127 | 38 | 6 | 5 |
| C0150L-07 | 152-178 | 6-7 | 178 | 152 | 38 | 6 | 5 |
| C0150L-08 | 178-203 | 7-8 | 203 | 178 | 38 | 6 | 5 |
| C0150L-09 | 203-229 | 8-9 | 229 | 203 | 38 | 6 | 5 |
| C0150L-10 | 229-254 | 9-10 | 254 | 229 | 38 | 6 | 5 |
| C0150L-11 | 254-279 | 10-11 | 279 | 254 | 38 | 6 | 5 |
| C0150L-12 | 279-305 | 11-12 | 305 | 279 | 38 | 6 | 5 |
| C0150L-14 | 330-356 | 13-14 | 356 | 330 | 38 | 6 | 5 |
| C0150L-15 | 356-381 | 14-15 | 381 | 356 | 38 | 6 | 5 |
Heavy Duty
Stock No. | Dimension mm | Width
mm | Gauge
Mm | Standard Pkg.
Qty./Bundle |
Diameter
Inch mm | Range
mm | Inch |
| C0150H-08 | 8 (203) | 178-203 | 7-8 | 50 | 6 | 5 |
| C0150H-09 | 9 (229) | 203-229 | 8-9 | 50 | 6 | 5 |
| C0150H-10 | 10 (254) | 229-254 | 9-10 | 50 | 6 | 5 |
| C0150H-11 | 11 (279) | 254-279 | 10-11 | 50 | 6 | 5 |
| C0150H-12 | 12 (305) | 279-305 | 11-12 | 50 | 6 | 5 |
| C0150H-13 | 13 (330) | 305-330 | 12-13 | 50 | 6 | 5 |
| C0150H-14 | 14 (356) | 330-356 | 13-14 | 50 | 6 | 5 |
