| Prod Model: |
C0150L&C0150H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Material: |
Mild Steel |
| Surface: |
HDG (Min 65 Micron ) |
| OEM: |
Accept |
| ODM: |
Accept |
| Type: |
Poleline Hardware |
Product Description

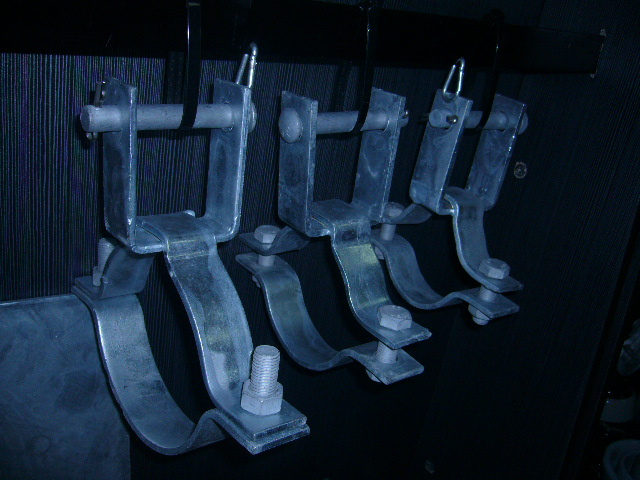

Pole Bracket / Mounting Clamp Adapter
These clamps are designed to adapt to circular & octagonal concrete steel or wooden pole. Alternatively can be adapted to wood poles at the end user option.
The C0150H clamp are heavy duty type band. They are designed with forget reinforcing rib / stiffener on its corner bond for extra flexural strength, used for attaching brace for heavy primary line cross arm or side arm construction.
The C0150 series are used for light cross arm primary line construction.
Both clamps can be used for attaching extension arm, aerial cable attachment on straight run, attaching cable on corner run, down guying or deadend guying application.
Accept special size and OEM.
Light Duty
| Stock No. | Range mm | Inch | Dimension (mm) |
| A | B | Width | Gauge |
| C0150L-06 | 127-152 | 5-6 | 152 | 127 | 50 | 6 |
| C0150L-07 | 152-178 | 6-7 | 178 | 152 | 50 | 6 |
| C0150L-08 | 178-203 | 7-8 | 203 | 178 | 50 | 6 |
| C0150L-09 | 203-229 | 8-9 | 229 | 203 | 50 | 6 |
| C0150L-10 | 229-254 | 9-10 | 254 | 229 | 50 | 6 |
| C0150L-11 | 254-229 | 10-11 | 279 | 254 | 50 | 6 |
| C0150L-12 | 279-305 | 11-12 | 305 | 279 | 50 | 6 |
| C0150L-14 | 330-356 | 13-14 | 356 | 330 | 50 | 6 |
| C0150L-15 | 356-381 | 14-15 | 381 | 356 | 50 | 6 |
Light Duty
| Stock No. | Clamp Range | Clamp Range | Clamp Range | Width | Gauge |
|
| Dia Inch (mm) | Range mm | Inch | | |
| C0150L-08 | 8(203) | 178-203 | 7-8 | 64 | 6 |
| C0150L-09 | 9(229) | 203-229 | 8-9 | 64 | 6 |
| C0150L-10 | 10(254) | 229-254 | 9-10 | 64 | 6 |
| C0150L-11 | 11(279) | 254-229 | 10-11 | 64 | 6 |
| C0150L-12 | 12(305) | 279-305 | 11-12 | 64 | 6 |
| C0150L-14 | 13(330) | 305-330 | 12-13 | 64 | 6 |
| C0150L-15 | 14(356) | 330-356 | 13-14 | 64 | 6 |
We also produce other type poleline hardware, welcome contact us.
Pole line hardwares including:
| Machine bolt | Double arming bolt | Square nut | Washer | Carriage bolt |
| Brace bolt | Alley arm brace | Thimble clevis | Guy hook | Shoulder oval eye bolt |
| Angle bracket | Cross arm clevis | Thimble eye nut | Thimble eye rod | Twin eye rod |
| Forged thimble eye bolt | Triple eye rod | Crossarm | Arm brace | Double arming plate |
| Socket clevis | Insulated clevis | Ball clevis | Insulator pin /Insulator spindle | Socket eye |
| Flat crossarm brace | Secondary rack | Thimble Clevis | U bolt | Secondary bracket |
| Cross arm plate | Ground plate | guy attachment | Preformed deadend clamp | Pole bands /Pole Clamp |
| Guy clamp | Strain Clamp | Dead end clamp | Tension clamp | Suspension clamp |
| Deadend Grip | Anchor Shackle | U shackle | Wire rope clip / Guy clip | Transformer lead pins |
| Single/double upset bolt | Anchor expanding | Lug screw | Cross plate anchor | Pole top pin |
| Anchor rod / Stay rod | Ground rod clamp | D Iron Bracket | Ground rod/earth rod | Staple gound wire |
| Guy bonding clamp | Anchor assemble | Oval eye nut | Parallel groove clamp | And so on |
