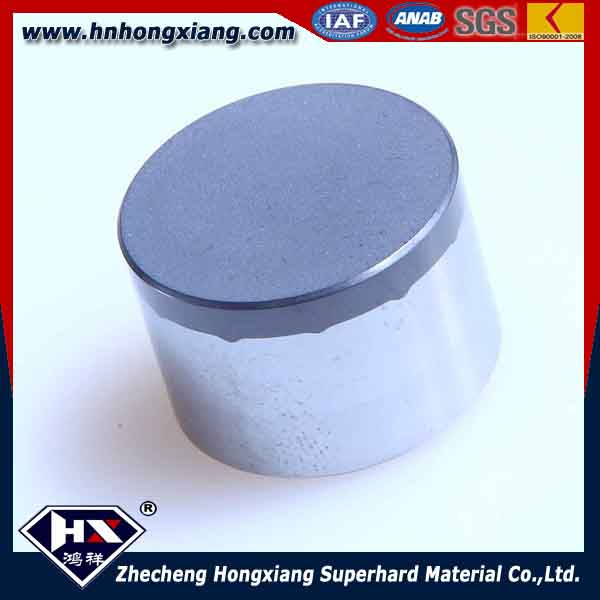

Polycrystalline Diamond Compact PDC Cutter

Polycrystalline Diamond Compact PDC Cutter
Price: US $ 10/Piece
Trade Terms: CIF,EXW
Min Order: 10/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: HONGXIANG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: PDC for Oil Drilling Industry
Certificate: ISO9001
Factory History: 26 Years
Factory Address: Shangqiu, China
Factory Brand: Hongxiang

Product Description

Introduction
PDC bits uses PDC as main cutting components, with the excellent wear-ability and impact toughness of the PDC.
It has a long useful life, high-efficiency, and good cost performance.
PDC bit is mainly used for drilling soft and big drainage.

Specifications
1)Size from 75mm to 450mm
2)Super quality and competitive price
3)Meet the needs of the new and old customers

All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information.
Product NumberDiameter
(D)(mm)
Height
(T) (mm)
Diamond Thickness
(t) (mm)
Diamond
Chamfer
(mm)
130813.44±0.038.00±0.102.30±0.200.30±0.10
131313.44±0.0313.20±0.102.30±0.200.30±0.10
160815.88/16.00±0.038.00±0.102.30±0.200.30±0.10
161315.88/16.00±0.0313.20±0.102.30±0.200.30±0.10
190819.05±0.058.00±0.102.30±0.200.30±0.10
191319.05±0.0513.20±0.102.30±0.200.30±0.10
191619.05±0.0516.31±0.102.30±0.200.30±0.10

Key words PDC cutter , Polycrystalline diamond compact cutter ,
Oil drilling bit part PDC
Diameter6mm - 20mm
Thickenss 3mm - 20mm
Diamond Thickness2.5mm , 1.0mm , 1.5mm , 2.0mm , 2.3mm
Application For oil drilling bit ; For coal drilling bit ; For stone cutting ;
 For mining drilling bit ;
Standard Tolerance0.001mm
BondCobalt based
Grit 1um  - 3um - 5um - 10um - 25um - 50um
Temperature resistant 650 degree
Quality GuaranteeQuality problem , we will exchange new one for you .
Note 1.Mount at temperautres not exceeding 650 degree .
2.Maximu recommend bearing diameter for "soft" nonferrous wire .
" Hard " wire diameter normally should not exceed 65% of this diameter .
Packingplastic bag & carton ; plastic box .
Shipping ways TNT ,DHL,FEDEX,EMS,UPS ,AIR SHIPPING ,SEA SHIPPING
Shipping time5-7 work days
Payment terms 100% prepayment by T/T , western union , Paypal , Credit
Factoty ZHECHENG HONGXIANG
Websitewww.hnhongxiang.com
Factory address Shangqiu city , Henan province , China
Factory history26 years
Factory main products 1. PCD die blanks   & PCD die
2. PDC cutter for oil drilling bit
3. PCD cutting tools
4. Diamond powder

Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.

Our products include,

Synthetic diamond

Diamond powder

Diamond saw blade

Diamond drill bit

Poly crystalline Diamond composite ( PDC )

PCD wire drawing dies

Diamond glass tools

Diamond polishing pad

Diamond cutting tools

Diamond grinding tools

Diamond wheels

Diamond tools, etc.

Why choose us?

1. Since 1990, with over 27 years diamond tools manufacturer experience.

2. Rich experience in OEM order

3. Advanced production equipment

4. Own design team, can help you custom the packaging

5. Own provincial engineering technology center

6. D&B and ISO9001 Certificates

We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.

Warmly welcome all partners to join us for mutual benefits cooperation.
