Polycrystalline Diamond PDC Insert Cutter 1313, Oilfield Pdccutter 1613 for Export
| Price: |
US $ 15/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
PDC insert cutter |
| Application: |
for Drilling and Cutting |
Product Description

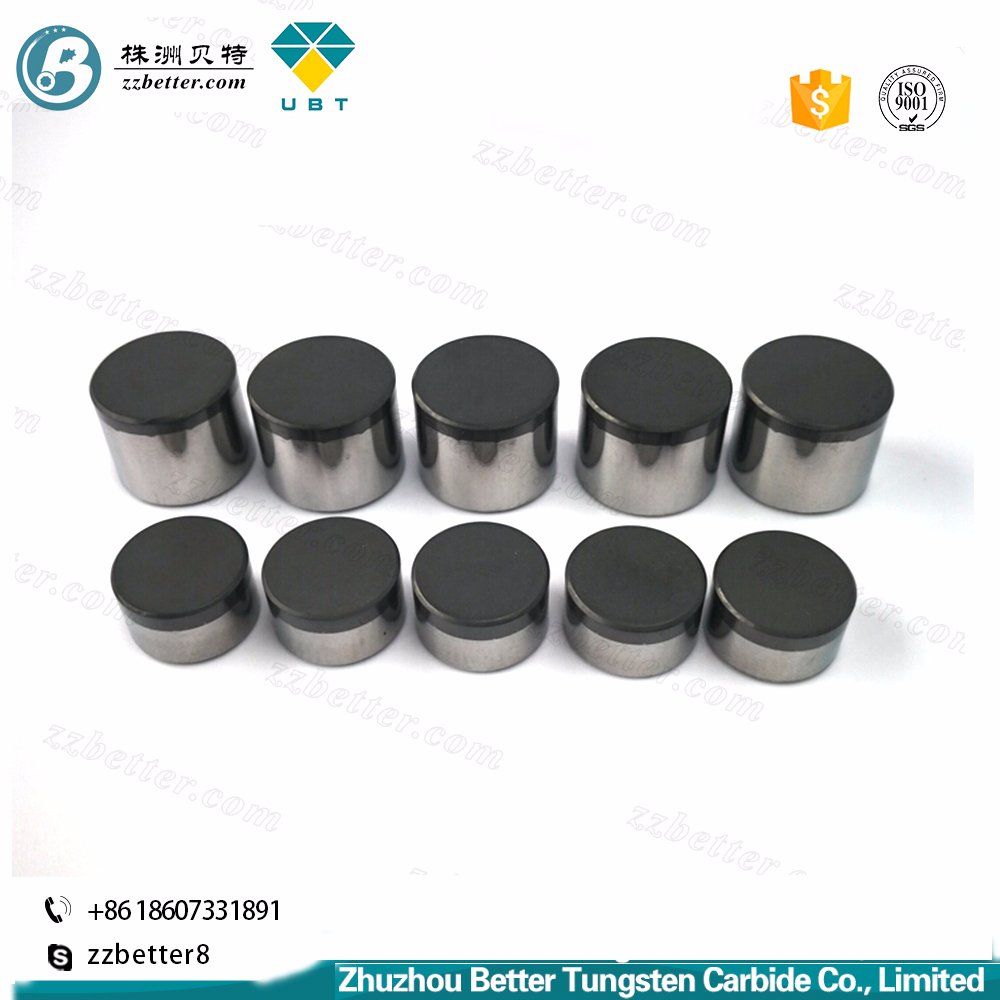

UBT PDC cutter which can be embedded into oilfield drilling bits is sintered at extremely high pressure and temperature. It is composed of diamond and Tungsten Carbide. In order to ensure its quality, we adopt the most advanced technical formula and synthetic techniques from both China and abroad. Item | Diameter(D) | Height(H) | Diamond Layer(E) | Diamond Chamfer(α) | Tungsten Carbide Chamfer(β) |
PDC1-1 | 13.44mm | 8.00mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° | |
PDC1-2 | 13.44mm | 13.20mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° | |
PDC1-3 | 16.00mm | 8.00mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° | |
PDC1-4 | 16.00mm | 13.20mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° | |
PDC1-5 | 16.00mm | 16.00mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° | |
PDC1-6 | 19.05mm | 8.00mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° | |
PDC1-7 | 19.05mm | 13.20mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° | |
PDC1-8 | 19.05mm | 16.00mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° | |
PDC1-9 | 19.05mm | 19.00mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° | |
Zhuzhou Better Tungsten Carbide Co., Ltd is located in Zhuzhou City, Hunan Province, China, where is the largest tungsten carbide producing area in China.
Our main products inclue: Tungsten carbide rods, carbide strips, carbide dies and bushes, tungsten carbide roll rings, carbide disc cutters, carbide end mill cutters, carbidestud and pins, tungsten water jet cutters, precision tools, tungsten carbide grits and powder, welding rods, ceramet inserts, PCD and CBN tools, non-standard and deep-processing products and so on. We also provide very good quality of boron carbide, silicon carbide nozzles.
Our company gathered the professional staff members for designing, producing and saling. Our workers are well trained and experienced. Our team is honest, positive, keeping promise, working hard and carefully. We sincerely hope we can provide our clients with good quality, moderate price together with professional service. We have got ISO9001: 2008 certificate, with advanced equipment, test facilities and professional employees. We strictly carry on ISO9001: 2008 requirements to guarantee the quality.
We have good relations with many factories in tungsten carbide line. We have large stock to keep the fastest delivery. In this way, Our products are 100% quality guaranteed and delivery fast.
Trust us, and you will win!
