Portable Electric Torque Wrench Pumps Enerpac Pme, Pmu-Series

Prod Model:	PMU-10427
Brand:	Enerpac
Material:	Stainless Steel
Structure:	General Cylinder
Power:	Hydraulic
Standard:	Standard
Pressure Direction:	Single-acting Cylinder
Double-Acting Cylinder Type:	Common Cylinder
Special Cylinder Type:	Number of Cylinders
Combination Cylinder Type:	Pressurized Cylinder

Product Description

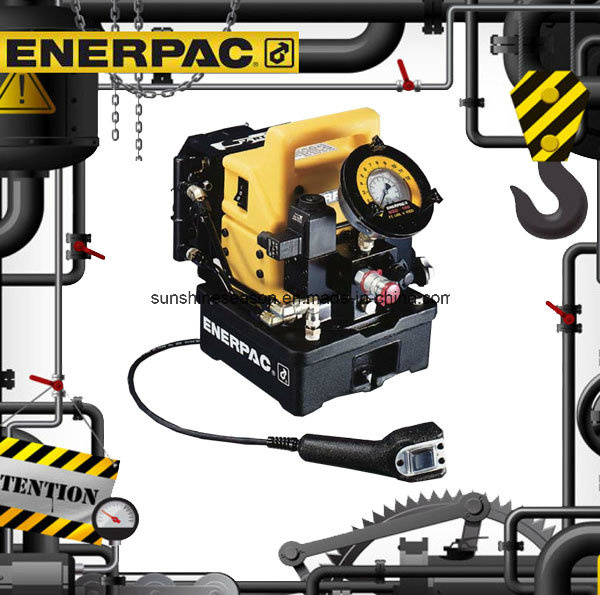

1>. PME, PMU-Series, Portable Electric Torque Wrench Pumps
Enerpac portable electric torque wrench pumps features a powerful two-speed pump which is lightweight and easy to carry
Standard heat exchanger package on PMU-Series keeps pump cool under extreme use
Glycerin filled gauge with scales reading in psi and bar
Transparent overlays in Nm and Ft.lbs for all Enerpac torque wrenches provide a quick torque reference
Universal motor for a high power-to-weight ratio; generates full pressure on as little as 50% of the rated line voltage
Adjustable pressure relief valve for accurate torque adjustments and precise repeatability.


For Use With Torque Wrenches		Maximum Pressure Rating (bar)		Oil Flow Rate (l/min)		Model Number with Heat Exchanger *	Useable Oil Capacity	Electric Motor	Dimensions L x W x H	Weight
		1ststage	2ndstage	1ststage	2ndstage		(litres)	(Volt-phase-Hz)	(mm)	(kg)
S1500X S3000X	W2000X W4000X	48	700	3,3	0,33	PMU-10427-Q	1,9	115 - 1 - 50/60	431x280x381	21
		48	700	3,3	0,33	PMU-10447-Q	3,8	115 - 1 - 50/60	431x330x381	24
		48	700	3,3	0,33	PMU-10422-Q	1,9	230 - 1 - 50/60	431x280x381	21
		48	700	3,3	0,33	PMU-10442-Q	3,8	230 - 1 - 50/60	431x330x381	24
SQD-25-I SQD-50-I	HXD-30 HXD-60	48	800	3,3	0,33	PMU-10427	1,9	115 - 1 - 50/60	431x280x381	21
		48	800	3,3	0,33	PMU-10447	3,8	115 - 1 - 50/60	431x330x381	24
		48	800	3,3	0,33	PMU-10422	1,9	230 - 1 - 50/60	431x280x381	21
		48	800	3,3	0,33	PMU-10442	3,8	230 - 1 - 50/60	431x330x381	24

2>. XC-Series, Cordless Hydraulic Pump
Performance of a Powered Pump. Portability of a Hand Pump.
Lightweight design with integrated handle and carrying strap for portability
Bladder reservoir prevents contamination and allows pump usage in any position
Powerful 0,37 kW motor and 28 Volt Lithium-Ion battery deliver exceptional speed and run time
High-strength fiberglass reinforced composite shroud for superior durability in demanding job site environments
Cordless technology eliminates tripping hazards found in other electric or air powered pumps
Available in both single-and double-acting valve configurations.

3>. PE-Series, Hydraulic Submerged Electric Pumps
Enerpac high pressure hydraulic submerged electric pump is best suited to power small to medium size cylinders, hydraulic tools or whenever a quiet, intermittent duty cycle is needed.
Two-speed pump operation reduces cycle times for improved productivity
Powerful 0,37 kW induction motor is submerged in the oil reservoir to run cooler, protect the motor, simplify the pump interface, save space and reduce noise
Large 5,5 litres reservoir allows operation of a wide range of cylinders
24 VDC remote pendant control on certain models for safer operation
Externally adjustable relief valve allows control of operating pressure without opening the pump
40-micron internal return line filter keeps oil clean, promoting longer pump life
Full length side tube for easy monitoring of oil level.

4>. ZU4-Series, Hydraulic Portable Electric Pumps
Enerpac high pressure ZU4 series electric pumps feature Z-Class high-efficiency hydraulic pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
Powerful 1,25 kW universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
High-strength, moulded composite shroud protects electric pump motor and electronics, while providing an ergonomic, non-conductive handle for easy portability.
Pro-Series models only
* Back-lit LCD readout provides pressure display and a number of
  diagnostics and readout capabilities never offered on a portable
  pump before
    - pump usage information, hour and cycle counts
    - self-test, diagnostic and read-out capabilities
    - pressure readout and auto-mode pressure settings.
