| Prod Model: |
CMV-19 |
| Model No.: |
Xqd-19/25 |
| Strap Width: |
13-19mm |
| Tool Size: |
280X160X180mm |
| Tool Net Weight: |
3.8kgs |
| Color: |
Silver |
| Material: |
Aluminum |
| Application: |
Light Steel Industry, Metal, Paper-Making, Stone a |
| Strapping Material: |
Strip |
| Packaging Type: |
Cartons |
| Automatic Grade: |
Semi-Automatic |
| Strapping Mode: |
Welding Type |
| Driven Type: |
Pneumatic |
| Structure: |
Hand Strapping |
Product Description

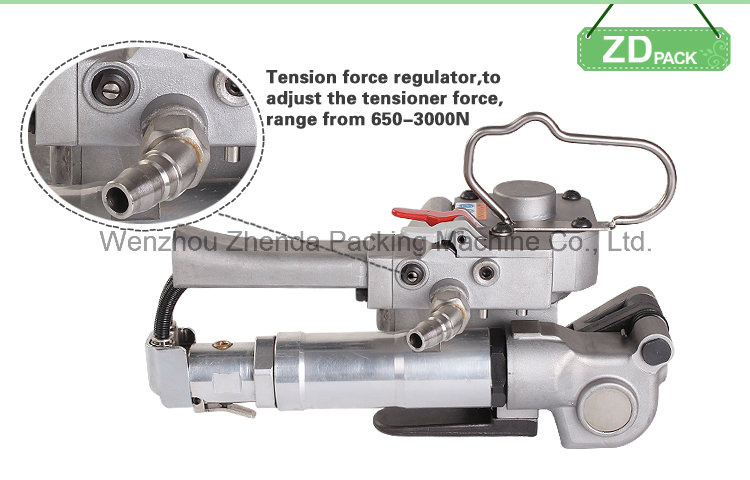

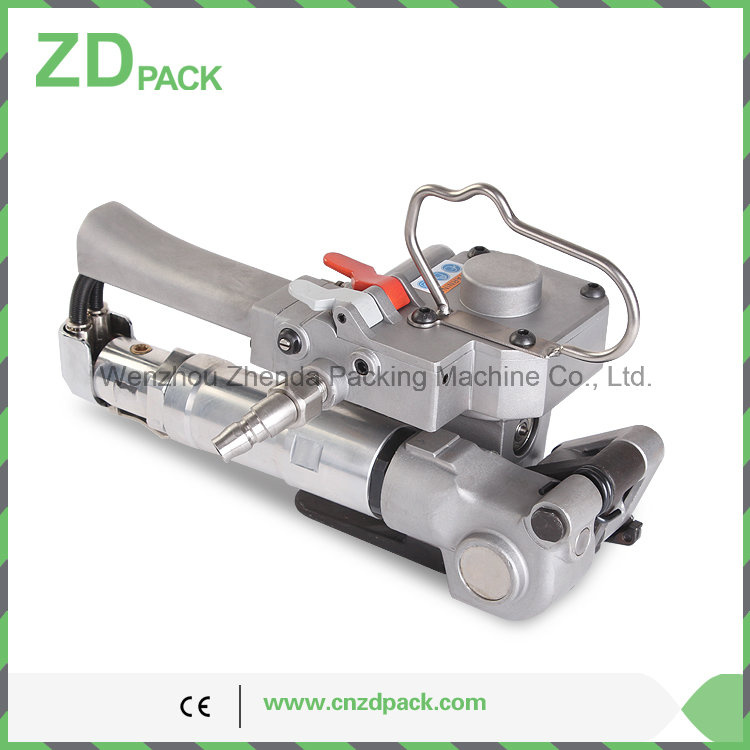

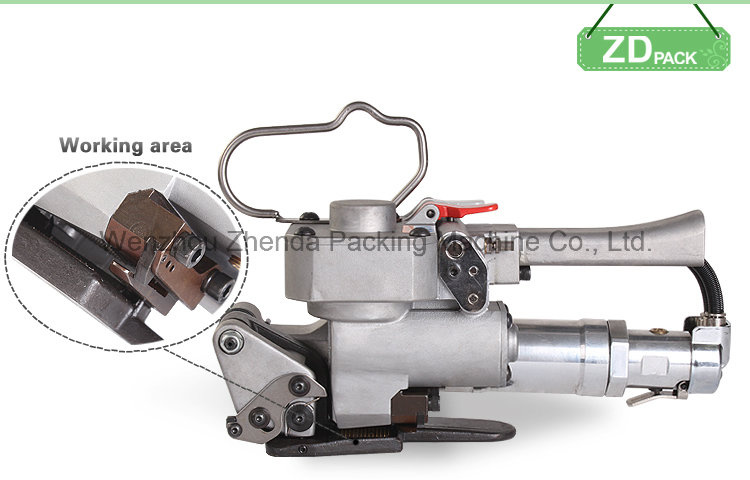

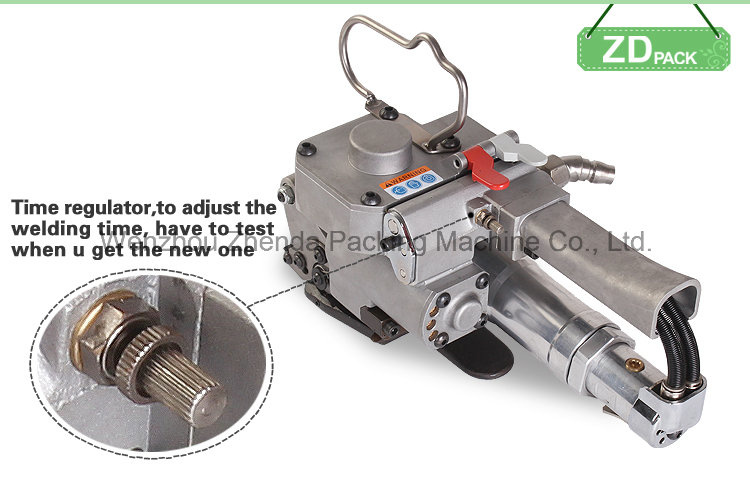

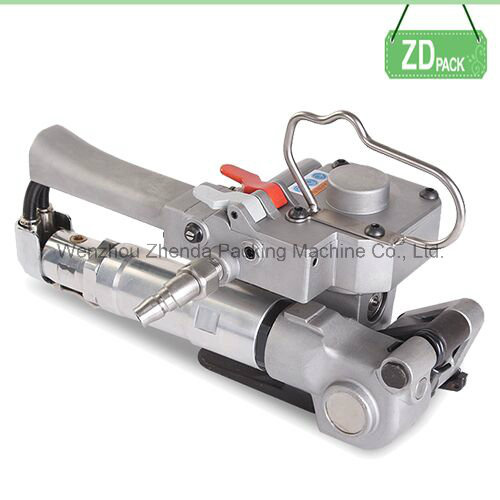

Portable Handheld Poly Strapping Tool (Cmv-19)
The strapping tool works on the polyester or polypropylene strap, friction weld. Popularly apply to the wodden case baling,barrel,big size carton or Steel coil packaging.
The air compressor is required for the air supply. It is good at strap size: 19mmx0.8mm.
Technology imported from Switzerland, XQD-19E-25E PET Pneumatic Packing Tool adopts high pressure air supply to tension and friction welding at high speed and finish the packing at one time . It is swift and tidy with flat and tact welding point, and is widely applied to light steel industry, metal, paper-making, stone and wood material packing tools.
Specification:
Specification
Model |
Max belt thickness |
Max shrinking force |
Average air pressure | (mm)
Dimension |
Weight |
| XQD-19E | 13-19x1.0mm | 259kg | 0.65Mpa | 280x160x180mm | 3.8kg |
| XQD-25E | 16-25x1.2mm | 259kg | 0.65Mpa | 280x160x180mm | 3.8kg |
