Portable Petrol Pionjar 120 Rock Drill for Vertical Breaking

Portable Petrol Pionjar 120 Rock Drill for Vertical Breaking
Price: US $ 300-1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: YN27C/Pionjar 120
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: SGS & CE
Usage: Breaking/Drilling/Mining/ Quarrying
Suitable: Drilling Blast Holes in Medium-Hard Rock
Drilling Type: Vertical
Shank Of Drill Rod Or Breaking Rod: Hex22*108mm
Color: Green/Yellow/Blue/Red or Depends on Your Request
Drilling Depth: 6m
Drill Speed: 250mm/Min
Bore Diameter: 28-42mm
Delivery Time: Within 15days After Receipt Your Advanced Payment
Precision: High Precision
Automatic Grade: Manual
Structure: Vertical Drilling Machine
Layout: Vertical
Number Of Shaft: Gasoline/Petrol
Controlling Mode: Portable

Product Description

1. Very compact structure, Less of the-easy-to-damage-parts, very easy to control. It can adapt to these outside situations there is no water and no electronic power.
2. It is a Kind hand held drill built up with gasoline engine, Air pump, rock drill and the rotation plumbum equipment for running or stop.
3. It can be used for breaking, drilling, blasting, tamping splitting and ramming.

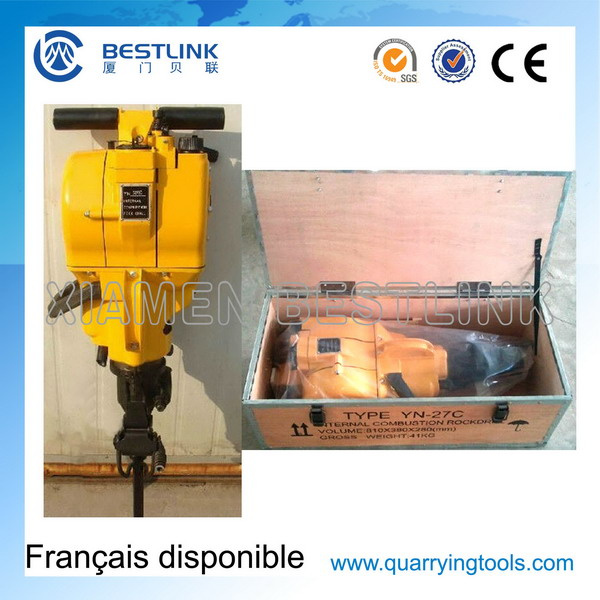

Gasoline rock drilling machine: YN27C/Pionjar 120

Advantages of hand-held rock drill:
a: Reasonable design
b: Convinient operation
c: Fast drilling velocity
d: Engery-saving
e: Efficient
f: Long service life of parts
g: Parts highly interchangeable and reliable performance etc
h: Both hand held and with airleg available.

Type
YN27C/Pionjar 120
Weight of main machine27kg
Overall dimensions(L*W*H)746*315*229mm
Type of engineSingle cylinder, air cooled two strokes
Cylinder diameter*stroke of pistonΦ58*70mm
Rotation speed of engine≥2450rpm
Displacement of engine piston185cm³
Type of carburetorhand needle valve, floatless type
Ignition systemcontrollable silicon, contactless system
Drilling speed (mean value of five holes)≥250mm/min
Drilling hole diameter28-42mm
Max drilling depth6m
Fuel consumption≤0.12L/m
Tank capacity≥1.5liter
Mixture ratio of gasoline and lubrication oil (in volumes)12:01
Drill rod and breaker shankHex22*108mm
Rotating speed of drill rod≥200rounds/min
Clearance of spark plug0.5-0.7mm

Catalogue download:

1.General catalogue: http://www.quarryingtools.com/downloadRepository/fc6d7f13-fd64-474e-96b7-ccc7a78b84aa.pdf
2. Expansive mortar: http://www.quarryingtools.com/downloadRepository/d7a67d54-4fc2-426b-ac71-3526df69b790.pdf
3. Rock drill tools: http://www.quarryingtools.com/downloadRepository/8c890428-2bf1-4b33-b5c9-1373a2c23962.pdf
4. DTH rock drill tools: http://www.quarryingtools.com/downloadRepository/9d3c352e-dd2d-4e11-8ad8-13dc8045bda7.pdf
