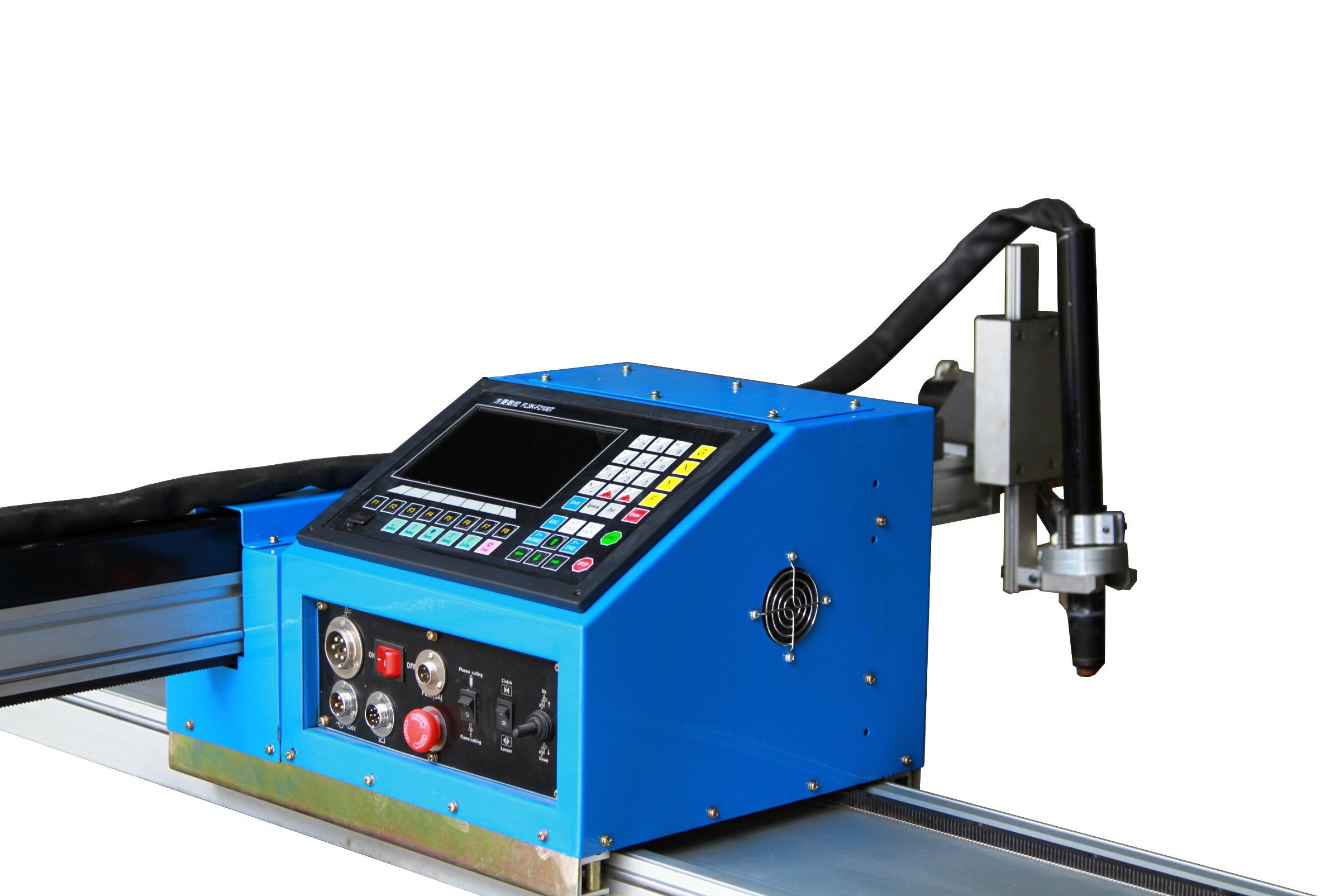

portable ZNC-1500D CNC cutting machine CNC cutter
| Price: |
US $ 1350-1650/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
ZNC-1500D |
| Warranty: |
1 Year |
| Lead Time: |
15 Working Days |
| Cutting Way: |
Support Plasma Cutting and Gas Cutting |
| Control System: |
Shanghai Fangling |
| Nesting Software: |
Fastcam |
| Plasma Power Source: |
CHD LG Series Plasma Cutter |
| THC: |
built in THC |
Product Description

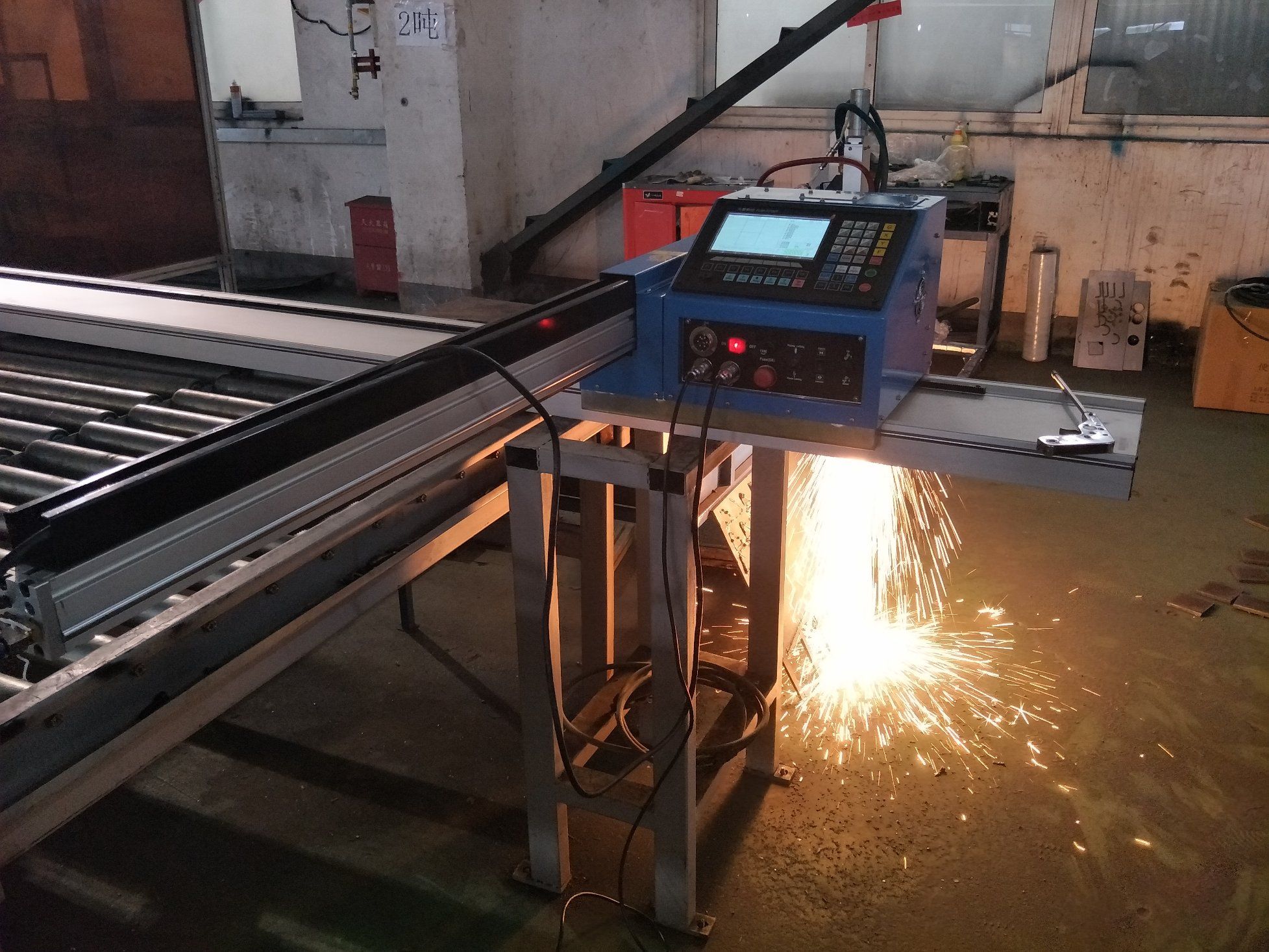

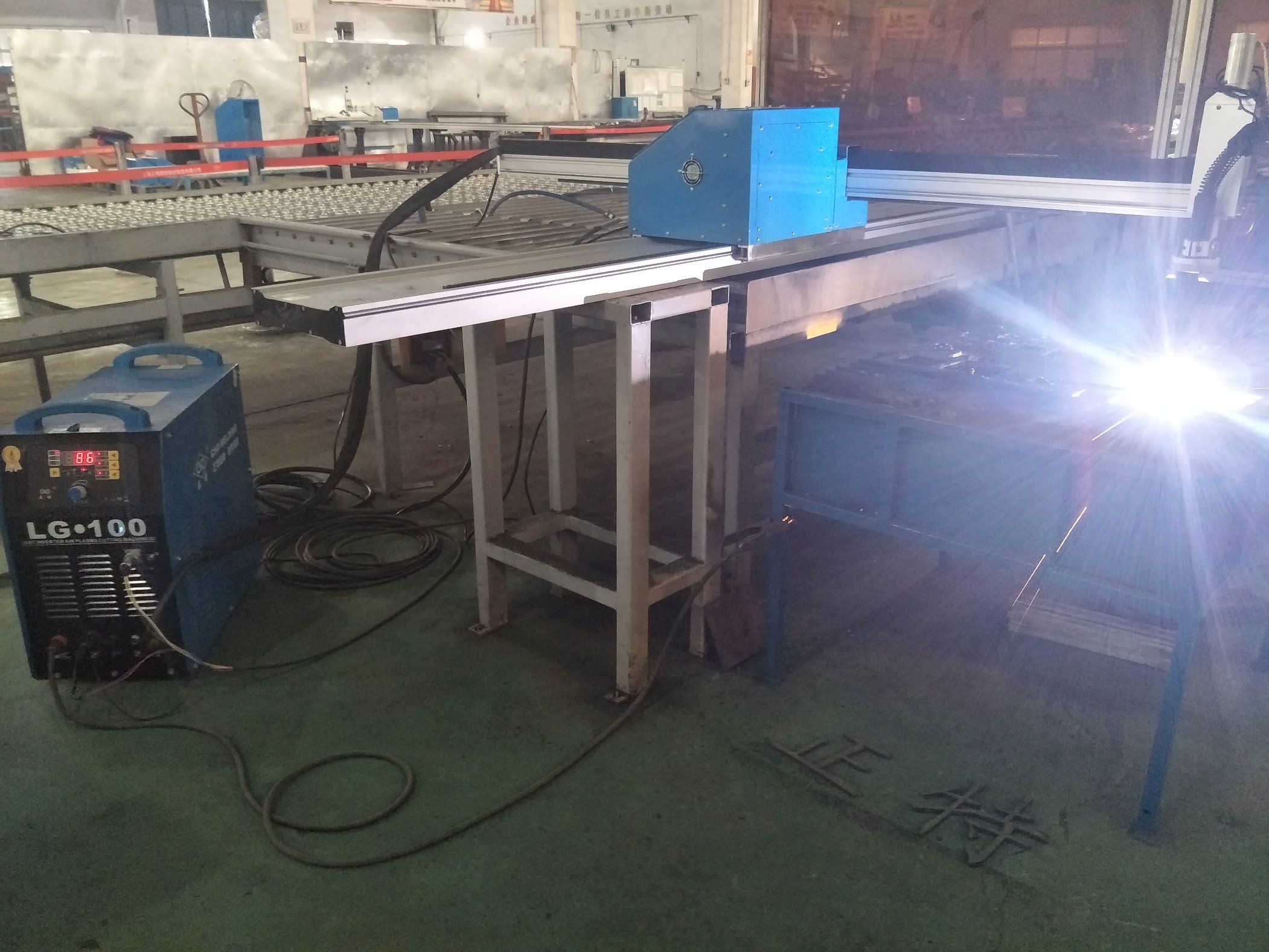

portable CNC cutting machine Product SummaryThe CHD CNC cutting machine can be matched with gas torch or plasma torch. Plasma cutting machine can be used to cut a variety of metal material which is difficult for gas cutting,plasma cutter have very obvious cutting effects specially for non-ferrous metal such as stainless steel,aluminum.it's main advantage is its amazing speed when cut light steel plate,can be 5 or 6 times faster than gas cutting for ordinary carbon steel sheet,with smooth and thinner kerf and smaller thermal warping.almost no heat-affected area. Currently the most widely used kind is the air plasma cutting machine which adopts compressed air as its working gas.
The cutting machine is a digital program controlled modern cutting equipment, in addition to the automation of cutting operations, it also has High cutting precision, high material utilization, high production efficiency. With the Progress of machine electronics and computer technology, CNC cutting machine is being paid more and more enterprises attention,and more and more widely used in the production process with its good man-machine dialogue interface, a strong support function.
Support gas cutting and plasma cutting(optional THC inside )
Gas cutting:CNC cutting machine+flame cutting torch+gas tank
plasma cutting:CNC cutting machine+plasma cutting torch+plasma cutting power
Main Feature
★ The machine's CNC function can cut any complex flat and graphics, adapted toOxygen, gas flame cutting and plasma cutting just like gantry-type large-scale CNC cutting machine. It is convenient and flexible, free move, not occupy fixed field ★The machine's nesting programming is simple, you can manually program the simple graphics, can also perform any automatic programming of complex graphics through the random gift of programming software. The software uses interactive dialogue, graphics data automatically converted, without manual editing Write code, directly deposit and take DXF files after AutoCAD drawings be cleaned, and then through the programming software for emissions, generate the required G code file to cut after Selecting the appropriate programming parameters.★ file transfer storage convenient and flexible: support USB interface, the user can output the required cutting file to the U disk, and thenInsert the micro-cutting machine USB interface to achieve the file transfer.★ easy to operate: the operation can be the same as semi-automatic car manual cutting. Can also be the same as large-scale CNC automatic cutting.★ 5.7-inch high-resolution dot matrix LCD display, full Chinese menu, Chinese characters prompts, dynamic and static processing graphics display, intuitive and Easy to learn.
★what is different from ZNC-1500A is that ZNC-1500C's guide rail is made of aluminum,so it is cheaper and lighter.and the THC which is used to adjust the height of the plasma torch is placed inside the machine.making the price cheaper too.ApplicationCan be widely used in automobiles, shipbuilding, petrochemical, boiler and pressure vessels, construction machinery, light industry machinery and other industries. Apply to carbon Steel (flame cutting), stainless steel, aluminum, copper (plasma) and other metal sheet cutting and cutting. Particularly suitable for profiled surface Single and batch production.
Technical parameter| Product | Portable CNC plasma cutting machine for metal cutting |
| Model | ZNC-A series | ZNC-C series | ZNC-D series |
| Input voltage | AC 220V±10% 50/60Hz |
| Effective cutting width | ≤1500mm | ≤1500mm | ≤1500mm |
| Effective cutting length | ≤7500mm | ≤5500mm | ≤5500mm |
| Cutting mode | Flame cutting / plasma cutting |
| Motor style | Step motor |
| Drive mode | single-side |
| Gas cutting thickness | 5-100mm |
| Plasma cutting thickness | Depends on plasma source |
| Cutting speed | 10-2000mm/min |
| Working precision | ±0.3mm/meter03mm/meter | ±0.5mm/meter0.5mm/meter |
| Cutting gas | Oxygen + Acetylene/ Oxygen + Propane |
Torch height control
For flame cutting | Controlled by Electric motor drive |
| Display screen | 7"LCD color screen |
| Nesting software(program) | FASTCAM |
| Option | Plasma torch height controller (THC)
|
what's includedThe main parts of the machine components are: host, vertical and horizontal drive devices and rails, torch components, gas supply system and electric control system Unified. FAQ1. Q: Are you manufaturer or trading company?A: We are a factory with 28 years manufacturing experience.our main products is IGBT inverter air plasma cutter,CNC cutting machine,welding machine,beveling machine.2. Q: what certificate do you get?A: CE ,ISO,CCC and SGS.3 Q:How many days for mass production? A:15 working days after receipt of remittance.4 Q:what is your garantee period? A:1 year.5. Q:cutting material?cutting range?A:All kind of sheet metal,aluminum,copper,brass. effective cutting width is 1500mm,effective cutting length is 3000mm.6 Q:what after-sale service do you offer?A: 24 Hours Online Service, Free spare parts for breakdown machine in warranty service7.Q:cutting speed? A:0-2000mm/minute8.Q: working voltage? A:AC220V About CHDFounded in 1989, WenZhou CHD Welding Equipment Factory is China's famous cutting machine, beveling machine, welding machine and accessories manufacturer, with 3 production bases located in Shanghai, Wenzhou and Chengdu and plant area of 53,000 square meters.have passed authoritative certification such as the ISO9001 and Switzerland SGS, France BV.10 kind of products has passed the EU CE certification.Wenzhou CHD have applied for more than 10 patents, have participated in the drafting of three Chinese national standards, been rated as famous brand in Shanghai. With marketing and service agencies covering more than 70 countries.
Exhibition
CHD have participated in all kinds of the welding exhibitions more than 100 times since 1989 when enterprise started to run over the last decade.we attend at least exhibitions annually.
1989-2015 all the Beijing Essen Welding&Cutting Exhibitions
1989-2015 all the China welding expositions.
and exhibitions in Russia,Austrilia,India,Brazil,Vietnam&all over the mainland China.
Sincerely recruit Global distributor!

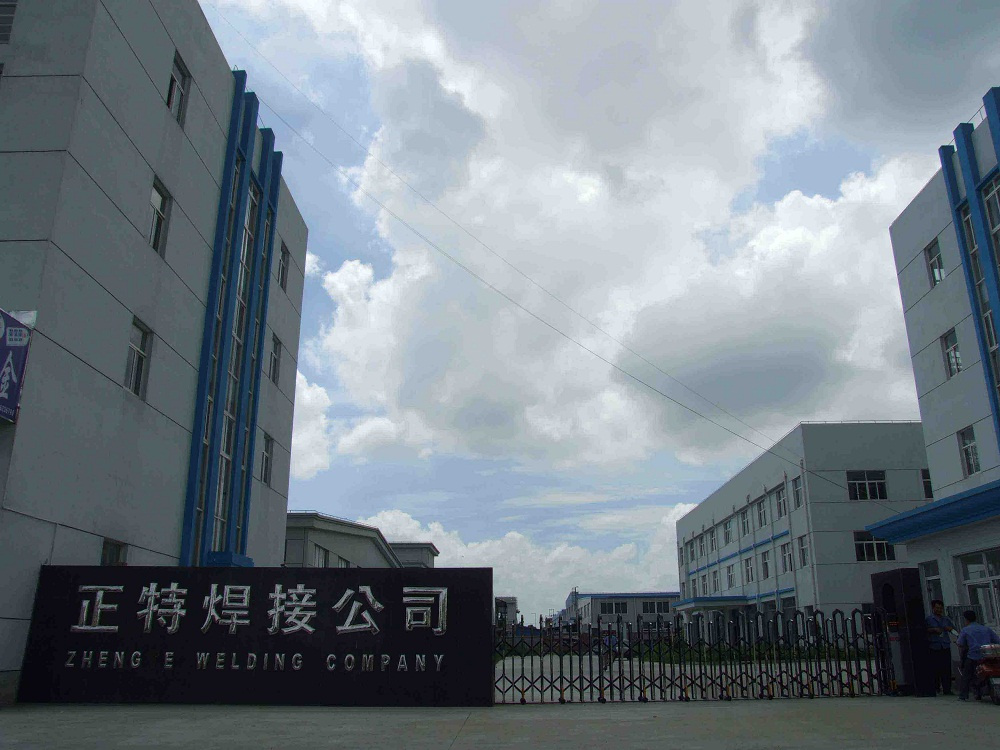

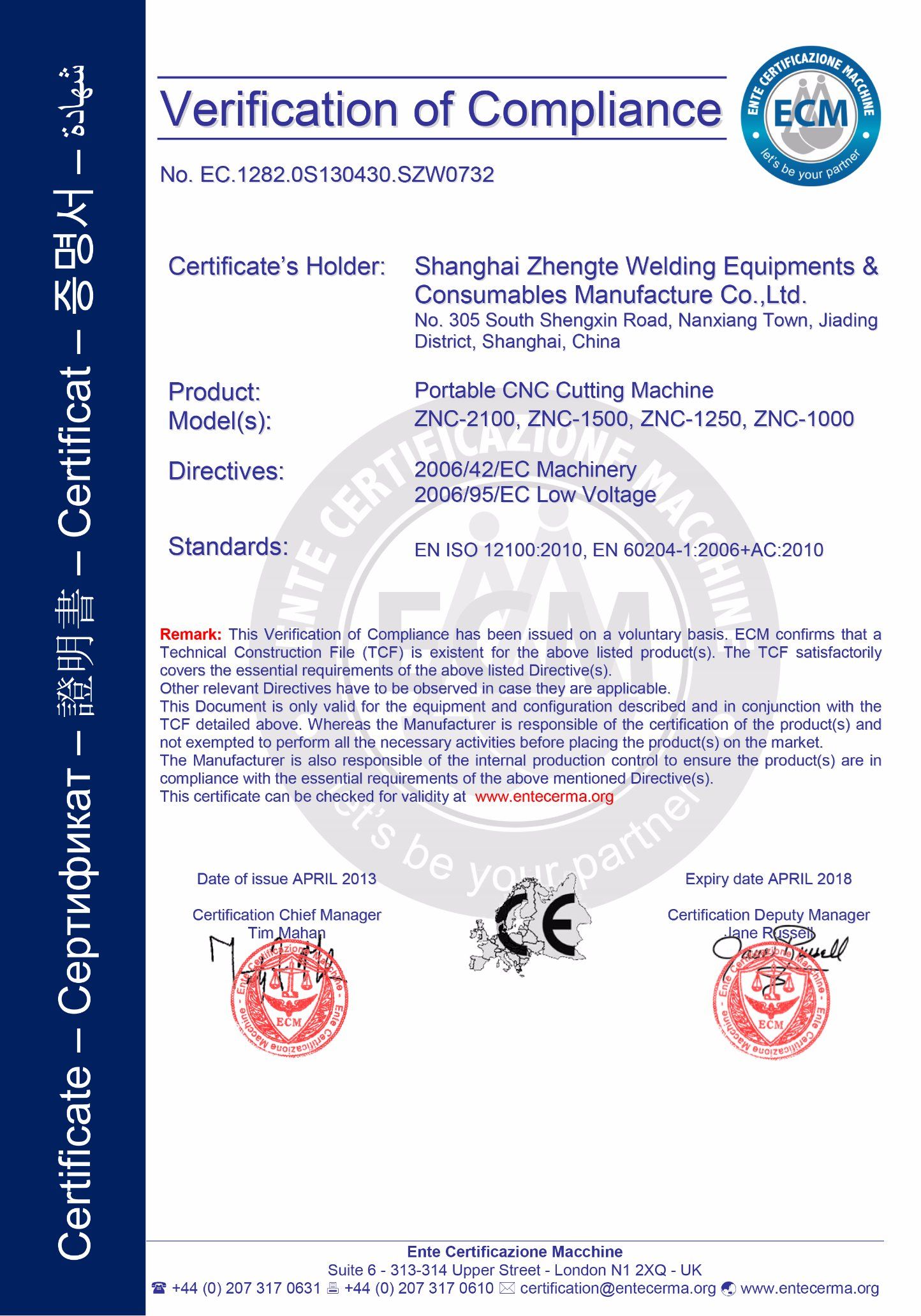

Founded in 1989, CHD Welding and cutting equipment Co., Ltd is China's famous manufacturer of CNC plasma cutting machine, pipe and steel plate beveling machine, welding machine and accessories, with 3 production bases located in Shanghai, Wenzhou and Chengdu and plant area of 53, 000 square meters. Have passed authoritative certification such as the ISO9001 and Switzerland SGS, France BV. 10 kind of products has passed the EU CE certification. Wenzhou CHD have applied for more than 10 patents, have participated in the drafting of 3 Chinese national standards and own 9 invention patents. CHD has been rated as famous brand in Shanghai. With marketing and service agencies covering more than 70 countries. The sales quantity of cutting machine are more than 10000 every year.
CHD have participated in all kinds of the welding exhibitions more than 100 times since 1989 when enterprise started to run over the last decade. We attend at least 6 exhibitions annually.
1989-2015 all the Beijing Essen Welding&Cutting Exhibitions
1989-2015 all the China welding expositions.
And exhibitions in Russia, Austrilia, India, Brazil, Vietnam&all over the mainland China.
