| Price: | US $ 67-78/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | ZSY-02 |
|---|---|
| Application: | SUV |
| Type: | Hydraulic Jack |
| Structure: | Hydraulic Jack |
| Power Source: | Electric |
Features:
1. The whole set of Car Repair Tool Kit for Electric Car Jack and Electric impact Wrench.

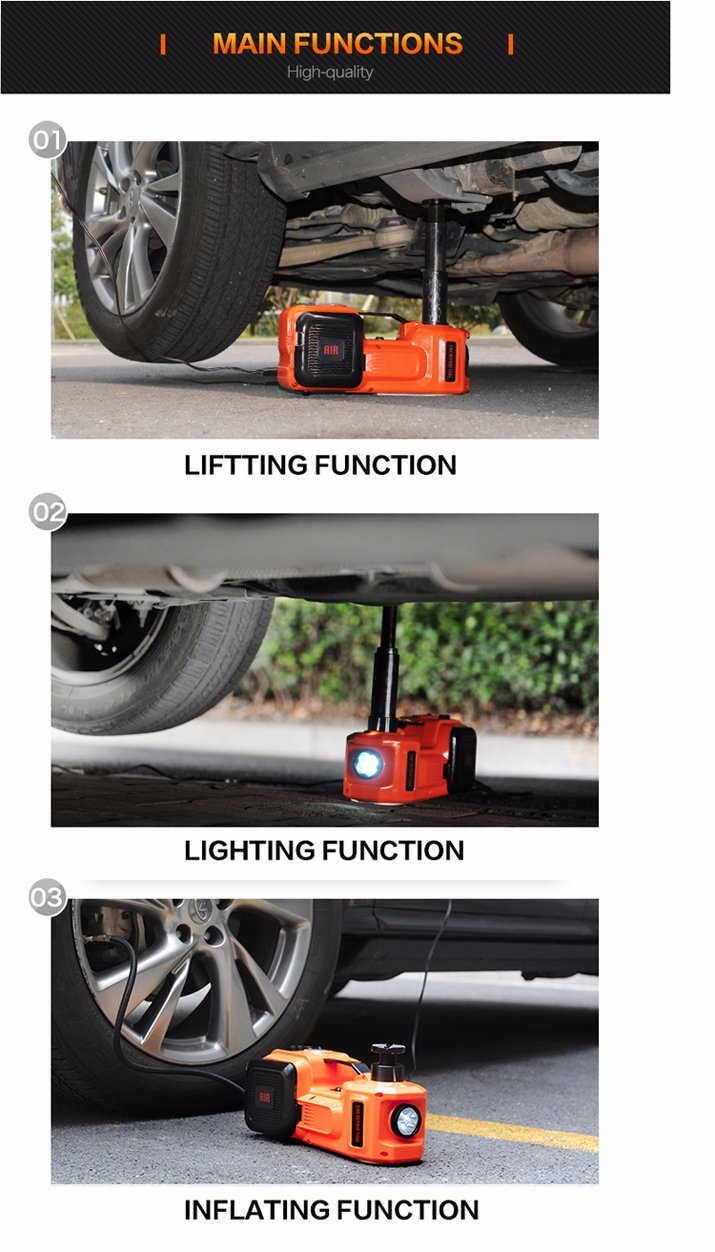

2. 3 in 1:Lifting+inflating+changing the wheel.
3. With BMC packing, easy to carry.
4. Super low pressure rod, set for the sports car.
5. With LED light in the front, easy for night illumination.
6. Portable, economical, practical tool kit.
7. Matching with the relevant complete small tools, like safety hammer, gloves.
8. Convenient to operate, and solve the problem in one step.
9. With CE, USANSI 2009. ROHS, ISO9001 certificates, quality is guaranteed.
More hidden heat dissipation mouth to prevent water splashing.
Non-slip cross groove design. Freely adjustable height. More widen aluminum plate to make it stable.
New appearance design, It looks like a car. Enjoy yourself. Double motor driver inside, work independently.
Engineering ABS shell to make it stronger.
3.5M power cord in side cover on the right.
Usage:
1. Connect the power plug into the car cigarette lighter
2. Ensure the centre of pressure rod to align the loading part of automobile chassis
3. Adjust the function switch to "jack" the direction switch to up, the jack will start to work till the distance between the car tyre.
| Model: ZYT02 (ZSY02+ ZYB01) | ZSY02 (2 in 1: Lifting+Inflating) | ZSB01 |
| Lifting Function Specification | ||
| Rated power | 150W | 100W |
| Operating Voltage | DC12V | DC12V |
| Max. Current | 15A | 15A |
| Max. Loading Car Weight | 5T | |
| Lifting range | 155-450mm | |
| Max. Torque | 480N. M | |
| Inflating Function Specification | ||
| Max Pressure | 150psi | |
| Air Flow | 35L/min | |
| Current | 10A | |
| Air hose length | 0.65m | |
| Power cable | 3.5M | |
| ZYT02 PACKING | ||
| Jack weight | 5kgs | |
| Jack size | 32*15*15cm | |
| Wrench weight | 1.5kg | |
| Wrench size | 28*10*11.5 | |
| Plastic box size | L34.5*W38*H18.5 | |
| Weight | 9.27/9.83kg | |
| Set/CTN | 3PCS/CTN | |
| N. W/G. W | 27.8/29 | |
| Carton size | L57.0*W39.5*H37.5 cm | |
| 20FT | 1016 PCS | |

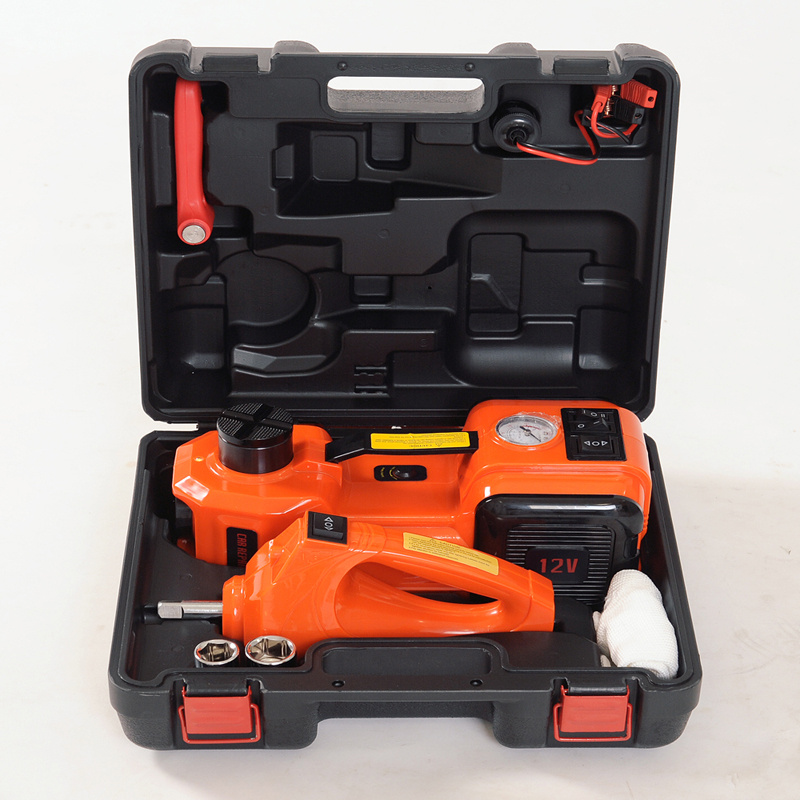

| PACKING LIST | |
| 2 in 1 Electric jack | 1PCS |
| Electric wernch | 1PCS |
| Safety Hammer | 1PCS |
| Plastic Tool box | 1PCS |
| Battery Clamp Connecting Cable | 1PCS |
| Gloves | 1pair |
| Power Cable | 1PC |
| Socket Adapters | 2PCS |
| Fuse | 2PCS |
| Instruction Manual (One is for jack, the other is for wrench) | 2PCS |
