Post Press Packing Machine Foil Stamping and Die Cutting
| Price: |
Negotiableset |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Ecoo-TDS790 |
| Imprinting Type: |
Platen |
| Placing Form Of Template: |
Horizontal |
| Die Cutting Tool: |
Steel Blade |
| Automatic Grade: |
Automatic |
| Application: |
Dust-proof Material |
Product Description

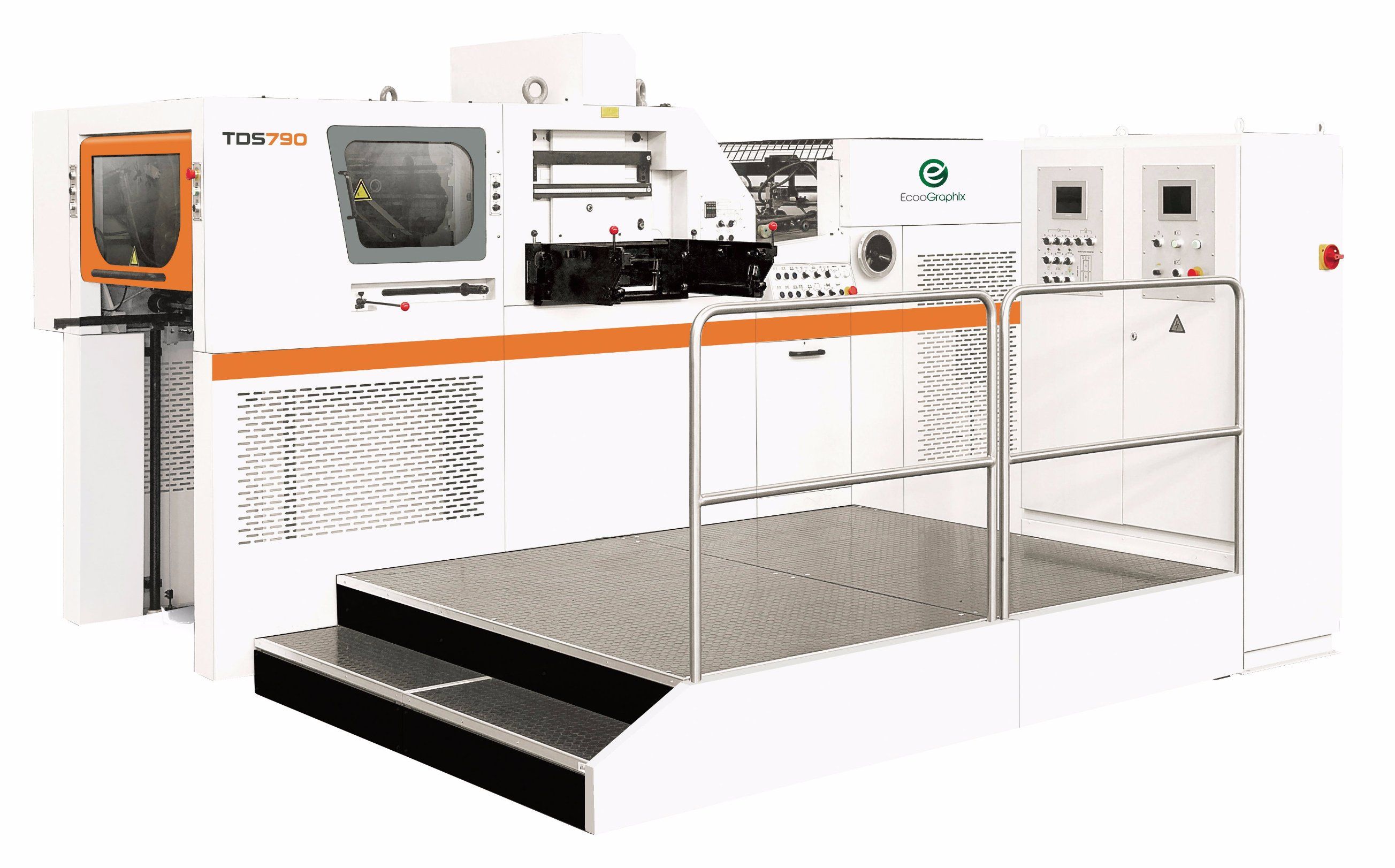

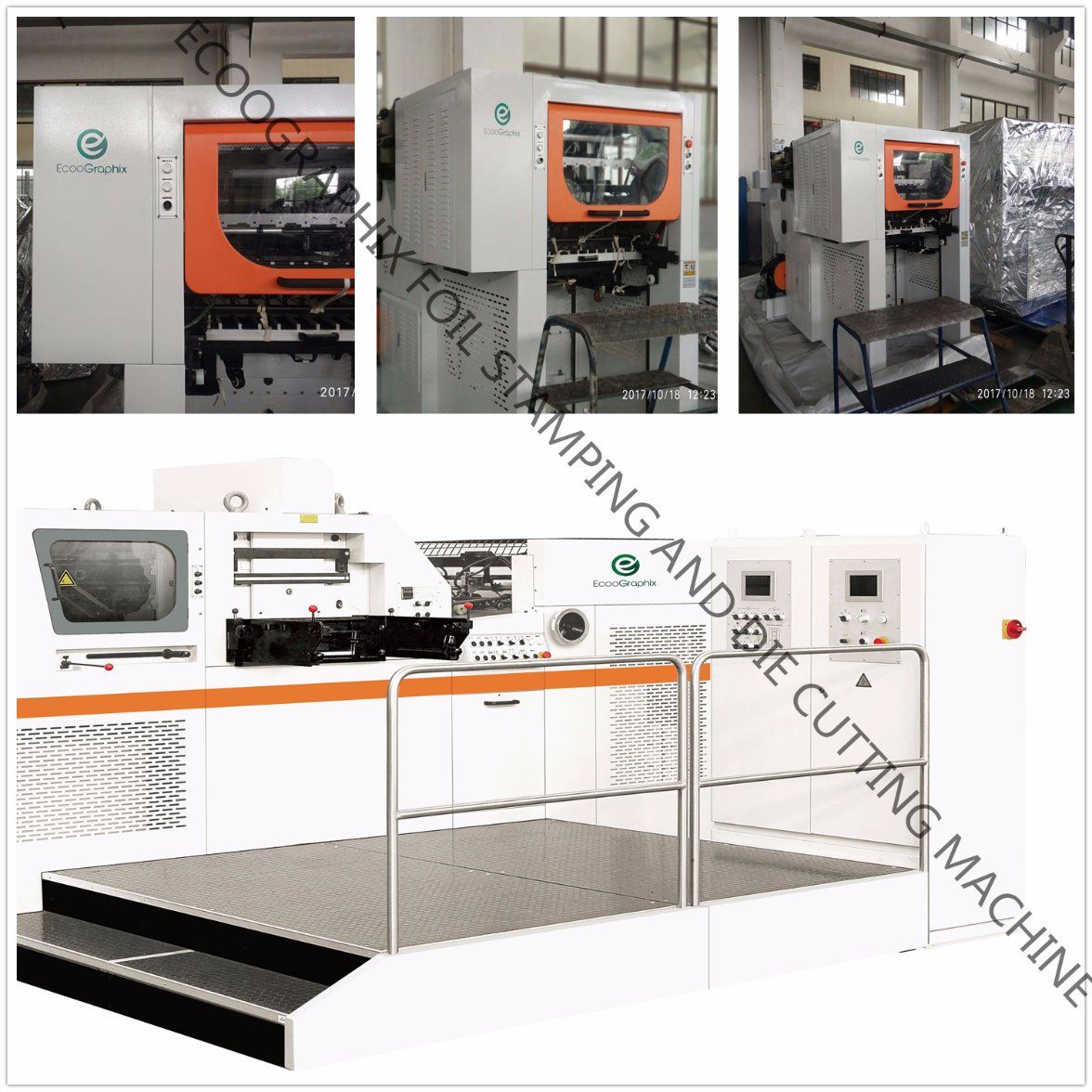

EcooGraphix Automatic Foil Stamping and Die Cutting Machine | Model | TDS790 |
| Max. Sheet size(mm) | 790x560 |
| Min. Sheet size(mm) | 310x210 |
| Max. Die cutting size(mm) | 760x520 |
| Max. Stamping size(mm) | 760x525 |
| Inside chase size(mm) | 780x530 |
| Height of cutting rules(mm) | 23.8 |
| Inter-platen distance(mm) | 51.5 |
| Max. pressure (N) | 120x104 |
| Stock range | Min. Sheet 90g/m2, Cardboard 157-2000g/m2,E,B flute |
| Min. gripper margin(mm) | 6 |
| Max. machine speed(s/h) | 5500 |
| Max. Stamping speed(s/h) | 5000 |
| The thickness of stamping plate(mm) | 5(optional 4+1) |
| Longitudinal feeding shafts | 3 |
| Transversal feeding shafts | 2 |
| Feeding pile height(mm) | 1200 |
| Delivery pile height(mm) | 1100 |
| Electric heating system | 8 zones |
| Min. foil width(mm) | 40 |
| Foil reel core(mm) | 25(1'') 76(3'') |
| Rated power(kw) | 26 |
| Air supply | 0.8-1.0MPa, ≥0.6m³/min |
| Overall dimension(mm) | 3855x3650x2210 |
| Weight of machine(kg) | 8500 |
UNITS OF THE EQUIPMENT
Feeding/delivery unit
- Automatic feeder rolls back quickly to give easy access for make ready and locks up in seconds
- One feeding bar for suitable paper infeed
- One delivery hand with 6 delivery fingers, adjustable according to paper size
- Automatic elevated feeding pile
Main machine
- Delivers accurate, adjustable impression for foil stamping, embossing and die cutting
- Two horizontal, cross pull foil feeds are fully programmable to provide maximum versatility and excellent foil economy
- Air blast system helps to separate foil from stock on critical jobs
- Micrometer adjustment on side guide and front guide
- Adjustable dwell on impression
- Honeycomb base is convenient for loading
- Missed sheet detector
- 4 heating zones with digital control
- 24 hours preheating device
- Control system with touch screen HMI, PLC and servo system.
