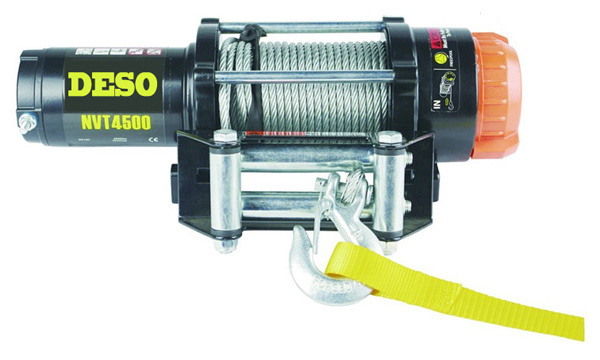

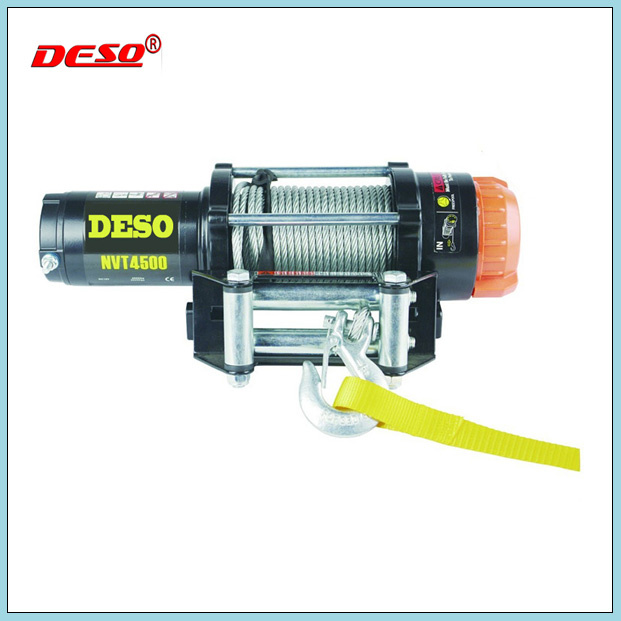

Power Electric Cable Winch with Ce Certificate

Power Electric Cable Winch with Ce Certificate
Price: US $ 100-200/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: NVT4500
Payment: T/T L/C
Delivery Time: 20-40days
Type: Electric Winch
Power Type: Permanent-magnet DC
Pull Direction: Backward
Electric Winch Model: ATV
Working Voltage Of Electric Winch: Low Voltage
Applicable Environment: Mountain Road
Certification: CE
Brand: Deso

Product Description

Electric Cable Winch
Rated line pull4500lbs(2043kg)single line
Motor (Series wound)DC 12V: 3.4hp/2.5kw
Gear train3 stage planetary gear
Gear ratio180:1
ClutchSliding ring gear
Braking actionAutomatic in the drum
Fairlead4-way roller fairlead
Wire rope7/32"×55.8' (Φ 5.4mm×17m)
Drum size1.73"×4.86" (44mm×123.5mm)

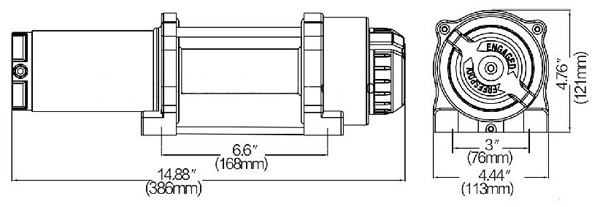

Dimensions14.88"×4.44"×4.76" (386mm×113mm×121mm)
Bolt pattern6.6"×3" (168mm×76.2mm)
Net Weight30.6lbs (13.9kg)

 Line speed and motor current (first layer)
Line pull(Lbs/Kgs)Line speed(FPM/MPM)Motor current(Amps)
0/013.1/4.030
1500/6819.8/375
2500/11358.2/2.5105
3500/20436.6/2.0135
4500/20434.3/1.3185

Line pull and cable capacity
Layer of cableRated line pull per layer (Lbs/Kgs)Cable capacity per layer (Ft/M)

14500/204311.5/3.5
23691/167625.6/7.8
33129/142142.3/12.9
42715/123355.8/17.0


If you need more details or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!
Chongqing DESO Lifting Co., Ltd is committed to the developing and manufacturing High quality products which are widely used for operations of heavy duty lifting, rigging, fastening, and material handling in mines, oil rigs, mills, docks, and on ships. All the products we provide can be certified by registers BV, ABS, Lloyd' S, etc.

Deso' History can be dated back to 1987, following The Policy Of Reform And opening of China, Our domestic and global market with huge demand for lifting material, we begin our business first with Chain Hoist and Lever Hoist. Our products with good reputation in China, and we also export goods to a few countries like USA, Germany etc. By cooperating with some National stae-owned Imp&Exp enterprises.

Deso gained the right to export in 2002 following the step of China' S joining WTO(World Trade Organization), we are among the first companies with the authority to export in China. In order to meet the demand of our client(Mainly for European and MID-East at that time), we expanded our products from Chain Block&Lever Block to more lifting material. After the development of the past years, our high quality products with good price including:

*Chain Block&Lever Block.

*G80 Chain, Hook, Master Link, Connecting Link, Chain Sling.

*G100 Chain, Hook, Master Link, Connecting Link, Chain Sling.

*US Type Shackles and Other Rigging Hardware.

*Steel Wire Rope.

*Electric Hoist&Winch.

Deso invested new factory and facility in Jiangsu Province2010, updated production line and facility guarantee us improved quality and capacity, combined with our 27 years' S experience in the field of international trade. We find our advantages to Survive and the right way to help our customer win the marketshare, that' S quality and service.

When Buying From Deso You Are Buying More Than Products, You Are Buying Quality And Service
