| Process Usage: |
Metal-Forming CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Open-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description
Machine Property
1.High speed
2.High quality
3.Easy operation
4.High safetyMachine Parameters | Project | Unit | XK1332 | XK1740 | XK1850 | XK2250 |
| Working Table Area(L*W) | mm | 1300*320 | 1700*400 | 1800*500 | 2200*500 |
| T-solt Size | mm | 90*18*3 | 90*18*3 | 90*18*5 | 90*18*5 |
| X/Y/Z Travel | mm | 800/400/500 | 1000/400/500 | 1200/550/600 | 1600/550/600 |
| Spindle Speed | rpm | 50-1430 | 50-1430 | 50-1430 | 50-1430 |
| Spindle Taper | | NT50 | NT50 | BT50 | BT50 |
| Shafts connect Threads Type | | M24 | M24 | M24 | M24 |
| Spindle nose to Working Table | mm | 50-550 | 50-550 | 50-650 | 50-650 |
| Spindle axis to Column | mm | 550 | 550 | 650 | 650 |
| Max Movement Speed(3 axis) | mm/min | 5000 | 5000 | 5000 | 5000 |
| Positioning Accurate | mm | 0.02 | 0.02 | 0.02 | 0.02 |
| Repeat Positioning Accurate | mm | 0.01 | 0.01 | 0.01 | 0.01 |
| Mini setting unit(3 axis) | mm | 0.001 | 0.001 | 0.001 | 0.001 |
| Working Table Load | kg | 800 | 1000 | 1500 | 1500 |
| CNC System | | GSK | GSK | GSK | GSK |
| Servo motor | kw | 2.2, 2.2, 2.2 | 2.2, 2.2, 2.2 | 4.6,4.6,2.2 | 4.6,4.6,2.2 |
| Main motor | kw | 7.5/11 | 7.5/11 | 7.5/11 | 7.5/11 |
| Lubrication Motor | w | 200 | 200 | 200 | 200 |
| Cooling pump Motor | w | 125 | 125 | 125 | 125 |
| Pneumatic Lock tool | | Optional | Optional | Optional | Optional |
| Machine weight | kg | 3800 | 4500 | 5600 | 6500 |
| Machine dimensions(L*W*H) | mm | 2300*2100*2600 | 2500*2100*2600 | 2600*2700*3000 | 3200*2700*3000 |
ATC and Taiwan spindle head can be added according to your request.Company Introduction

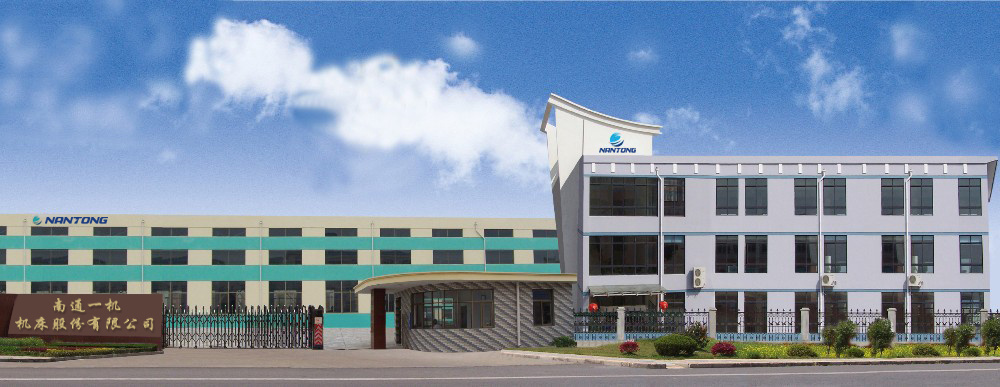

NANTONG YIJI MACHINERY CO., LTD
Nantong YIJI Machinery Co., Ltd was founded in 1988,which specialized in manufacturing move column cnc machine center, floor type boring machine, cnc gantry milling machine, automatic solution and professional machine tools. Nantong YIJI Machinery Co., Ltd has integrated business concept of "Quality is essence, excellence, full participation", and constantly casting and enhance the "YIJI" machine Brand quality. Relies on Specialized design, mature production workman ship, Strict QC Management, quick integrated solution, nice after service and has won trust from vast customers. Our market share has been expanded .Our products with more varieties, full range ,have enjoyed good sales to the 30 countries in Europe, America, Southeast Asia. And Have won good reputation So far. Our company has enjoyed import/export rights, obtained export product license, CE certificated and Passed ISO9001 quality system certification.
Innovation is endless. Techniques Change future. We will like to supply you our professional technology, quality machines and best service.
Our Service
Warranty & After-sale service
1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products' warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
Welcome your inquiry!
