Prod Model: |
JBG-1 |
Yojiu Profession: |
28 Years |
Application: |
Middle Voltage Fitting |
Surface: |
Smooth Surface |
Standard Or Non Standard: |
Standard |
Others: |
OEM Service Offered |
Product Name: |
Dead End Clamp |
Breaking Load: |
20kn |
Special: |
High Quality |
Certificate: |
ISO9001 |
Samples: |
Available |
Product Description

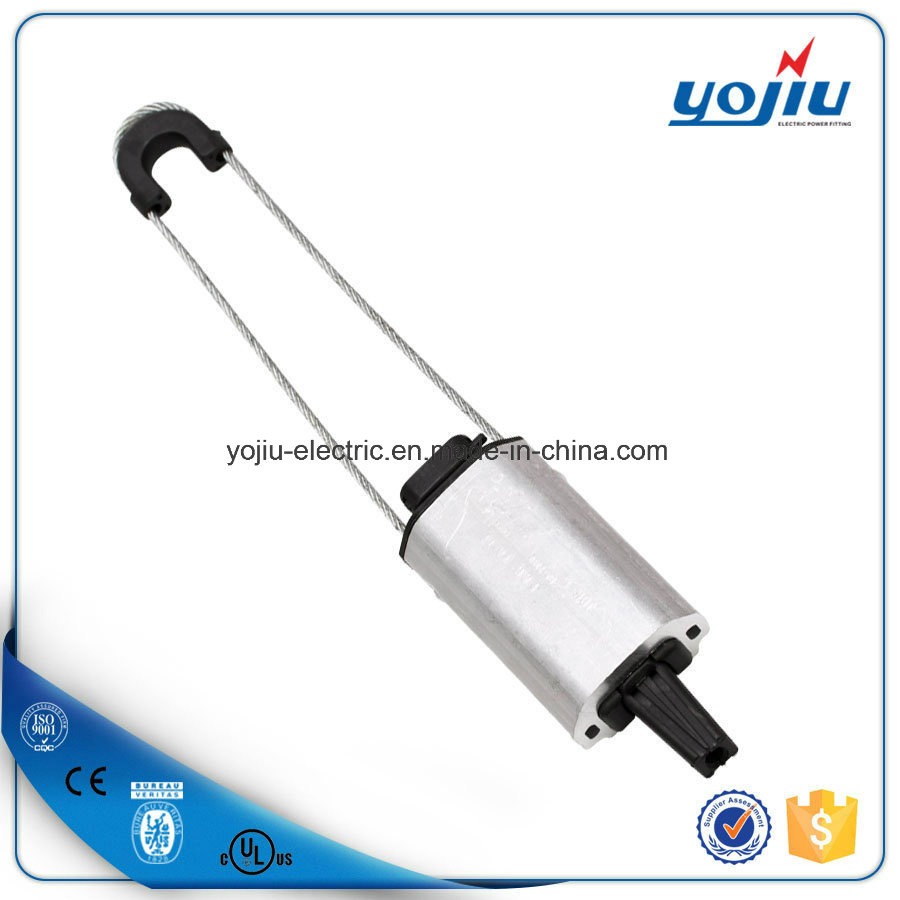

Product DescriptionAluminum Allloy Anchoring Clamp JBG Series
Material: High strength aluminium alloy, nylon plus fiber glass,stainless steel
Product property: Aluminum Allloy Anchoring Clamp JBG-1 are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic resistance. Cable gripping device in insulating material ensures the double insulation for the neutral core and advice damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, their connection allows an easier locking on the body of the clamp.
Dimension
Item No. | Conductor(mm2) | Messenger DIA.(mm) | Breaking Load(KN) |
JBG-1000 | 25-35 | 8-11 | 10 |
JBG-1500 | 50-70 | 11-14 | 15 |
JBG-2000 | 70-95 | 14-16 | 20 |
We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.
The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.
Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
