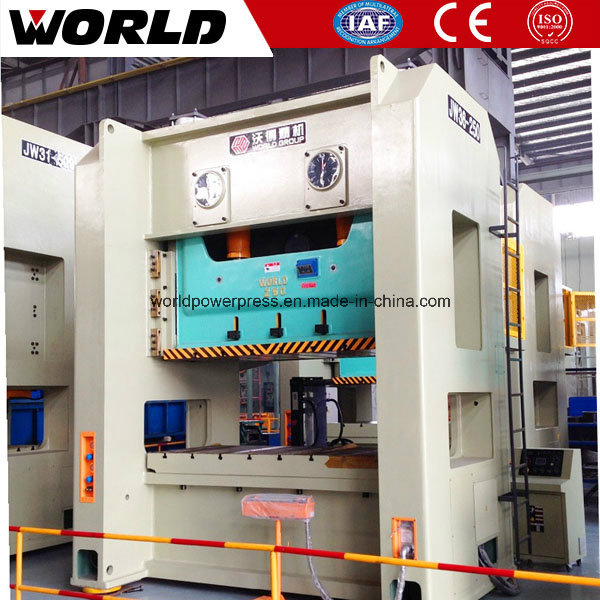

Power Press Price for 400ton H Frame Press

Name: Power Press Price for 400ton H Frame Press
Brand: tool-buy.com
SKU: 696613562
Availability: InStock
Rating: 4.6 (146 reviews)

Price:	US $ 30000-40000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shanghai Yingxin World Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	JW36
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity Range:	110ton to 500ton
Power:	380V/50Hz/3phase
Clutch Type:	Oil Bath Wet Type Pneumatic Clutch
Overload Protected System:	Hydraulic Pump
Lubircation System:	Auto Grease Center Lubrication
Control:	PLC
Type:	General Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Power Source:	Mechanical Drive
Precision:	High Precision

Product Description

Punch press

Features:

1. Steel welded body, VSR(Vibratory Stress Relief);
2. Wet clutch, hydraulic overload protector;
3. Double crankshaft,
4. Quadranglar eight surfaces guideway;
5. Auto lubrication, electric die adjustment;
6. PLC control.

Details

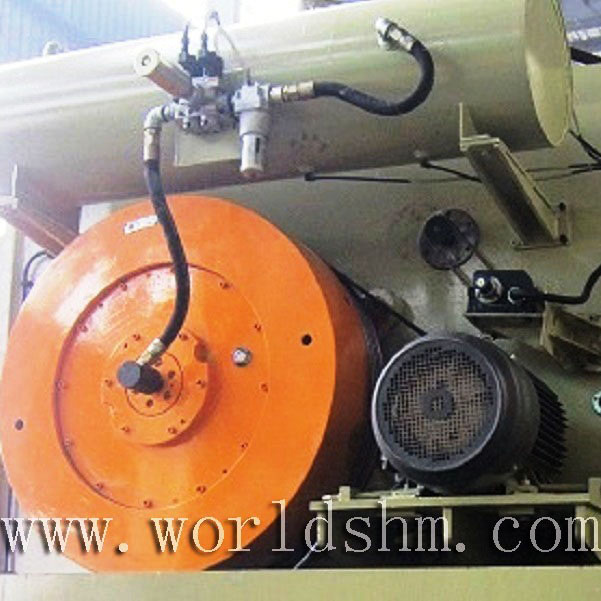

1) Wet type pneumatic clutch and brake, lower noise and longer service life. High quality seals ensure to prohibit the oil leak problem.

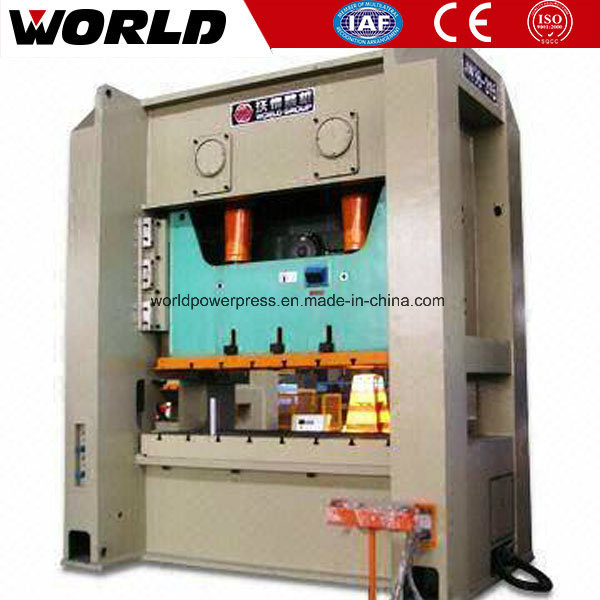

H Frame Punching Machine Close Type Double Crank Press (JW36)

H Frame Punching Machine Close Type Double Crank Press (JW36)

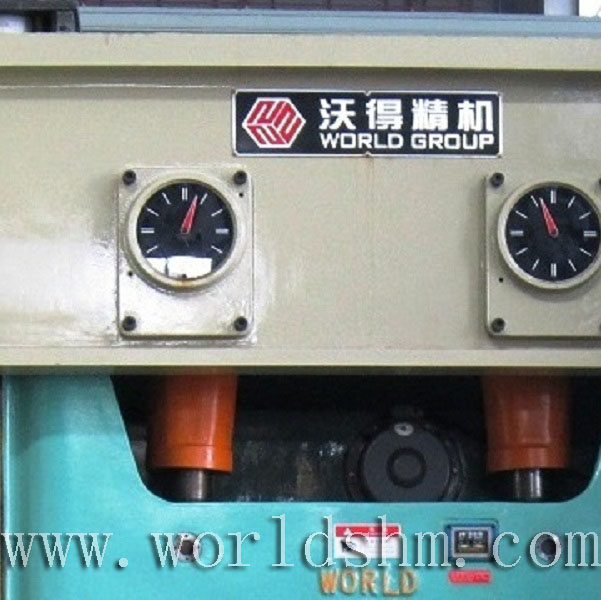

2) Double crankshafts pitmen totally eliminating side forces by reverse rotation. Welded steel plate framework with high intensity of machine body.
H Frame Punching Machine Close Type Double Crank Press (JW36)

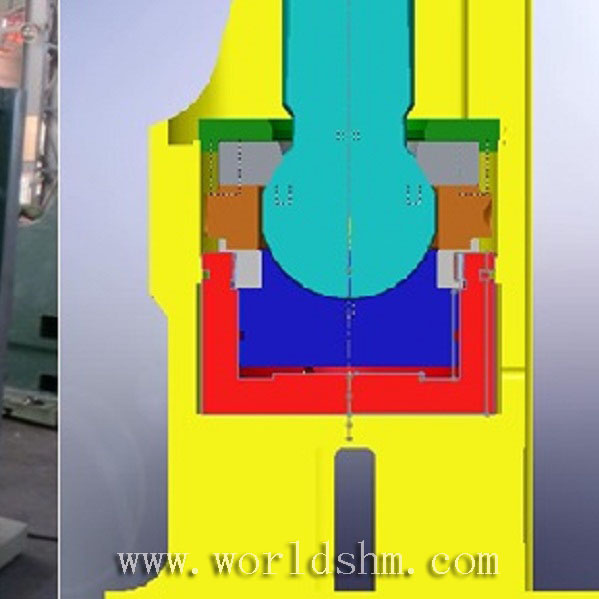

3) Eight side lengthened guide with high precision. Hydraulic overload protection system. H Frame Punching Machine Close Type Double Crank Press (JW36)

Specifications

ITEM		UNIT	JW36-110	JW36-160	JW36-200	JW36-250	JW36-315	JW36-400	JW36-500
Nominal Capacity		KN	1100	1600	2000	2500	3150	4000	5000
Slide Stroke		mm	180	200	250	280	300	300	350
Slide Strokes	Fixed	Times/min	65	55	45	35	35	25	20
Slide Strokes	Variable	Times/min	35-65	30-55	25-45	25-35	25-35	20-25	15-20
Max.Die Height		mm	400	450	500	550	550	600	650
Die Height Adjustment		mm	90	100	110	120	120	120	120
Slide Hole Size	Forward-Rear	mm	700	780	860	940	1020	1120	1380
Slide Hole Size	Height	mm	350	400	450	460	460	550	600
Distance Between Uprights		mm	1770	1970	2370	2470	2570	2670	3150
Bolster Size	Forward-Rear	mm	680	760	840	920	1000	1100	1200
	Left-Right	mm	1700	1900	2300	2400	2500	2600	3000
	Thickness	mm	155	165	170	180	190	200	210
Slide Bottom Size	Forward-Rear	mm	580	660	740	820	900	1000	1000
Slide Bottom Size	Left-Right	mm	1400	1600	2000	2100	2200	2400	2700
Bolster Surface Height		mm	900	900	1000	1100	1100	1100	1100
Overall Dimensions	Forward-Rear	mm	2050	2380	2630	2920	3100	3250	3400
	Left-Right	mm	2670	2890	3310	3430	3550	3670	4500
	Height	mm	3100	3340	3730	4110	4220	4300	4690
Motor Power		KW	11	18.5	22	30	37	45	55
Weight(approximate)		kg	19000	25000	33000	41000	45000	50000	63000

Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.

We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.

We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.

Installation Support

We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
