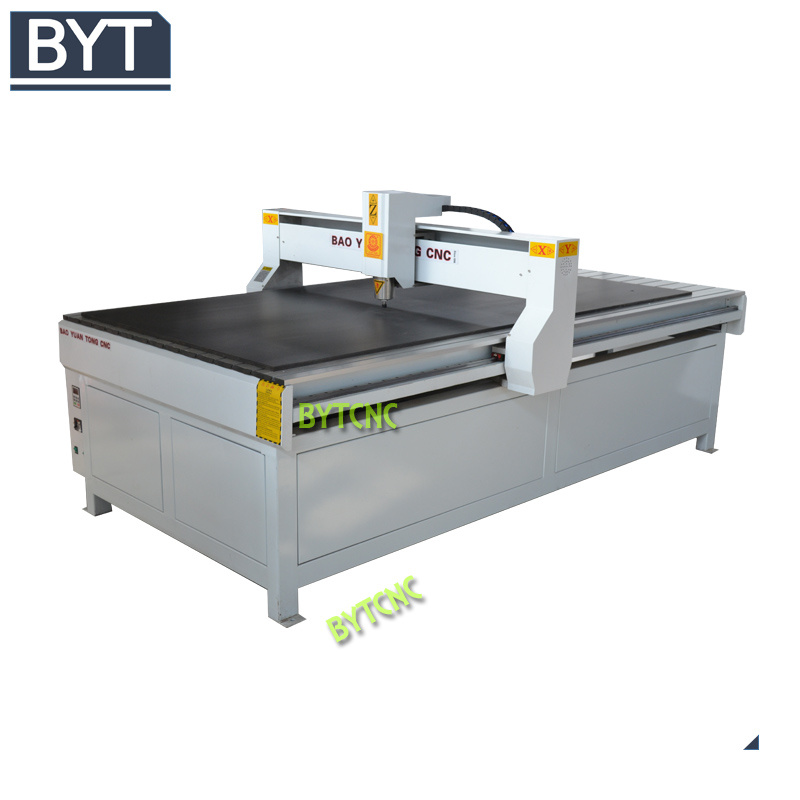

Power Saving Honeycomb Panel Cutting CNC Router
| Price: |
US $ 3700-4700/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Engraving Machine Type: |
CNC Engraving Machine |
| Condition: |
New |
| Guide Rail: |
X Y Z Square Guide Rail |
Product Description

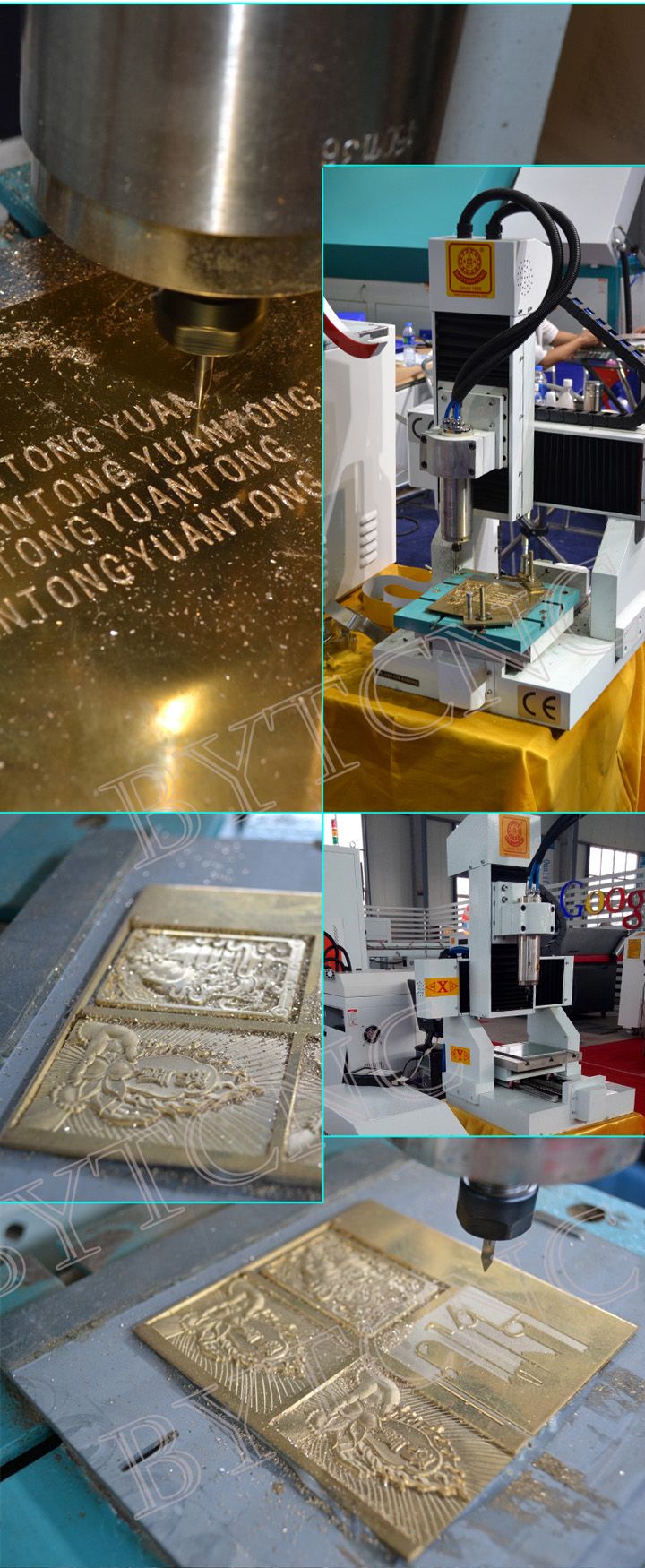

2015 new product! BJD-2020 mini desktop cnc router for circuit board
Features:
1.Guide Rail : X,Y,Z axis Adopt precision work round guild .Good stability , high accuracy ,lower wastage and long service time.
2. Portal Frame: Use aviation industry aluminum, long service time, resistant to wear and low noise. The X.Y.Z.Axis use import high precision and lower wastage extended nut automatic disappear gap ball-screw.
3. Principal Axis : Water-cooling principal axis, resistant to wear and low noise and can cooling the machine timely and effective .
4.High accuracy , It could engrave 2mm-3mm little letter.
5.The control box adopts advanced CNC system, making it high stability. The high-speed subdivided engraver motor is installed to ensure low noise , non-polar speed change .It has the function of relief sculpture as well.
Technical data:
Model |
BJD1326 |
BJD1318 |
BJD1315 |
BJD1312 |
BJD6090 |
X,Y working area(mm) |
1220*2400 |
1220*1800 |
1220*1500 |
1200*1200 |
600*900 |
Z axis Travel (mm) |
80 |
Weight |
500KG |
400KG |
350KG |
300KG |
280KG |
Overall Size(mm) |
1700*2950*1250 |
1650*2230*1250 |
1650*1950*1250 |
1650*1650*1250 |
980*1160*1150 |
Processing Precision |
0.01mm |
0.01mm |
0.01mm |
0.01mm |
0.01mm |
Reposition Precision |
0.05mm |
Spindle Power |
1.5kw or 2.2kw,3kw |
Spindle Rotating Speed |
0-24000rpm |
Cooling Way |
Water |
Control system |
Nc-studio or choose DSP controller |
Drive motor |
Stepper |
Working Software |
Windows98/2000/XP |
Compatible Software |
Compatible Software |
Command |
G code, *uoo, *mmg, *plt |
Rail guide |
Precision work round |
Transmit way |
Taiwan imported ball screw |
Max Speed |
5000mm/min |
Max Working Speed |
3000mm/min |
Working Voltage |
AC220V/50HZ1P |
Suitable material:acrylic, double color board, PVC, density board, soft metal like aluminum,
copper etc.
Service
1.One year quality guaranty. The machine with main parts (excluding the consumables)
shall be changed free of charge when problems happened during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agent price when you need replacement.
5.Engineers speaking English 12 hours on line service each day, free technical support. We
will solve your problems immediately by E-mail, fax, MSN, Skype, or telephone.
6. The English operation manual in electronic edition is included.
7. Machine has been adjusted before delivery.
8.Yuantong century is constructing oversea technical support center network, you can
contact us to find your nearest support center.
