| Prod Model: |
SJZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Capacity: |
300-500kg |
| Platform Size: |
2100*1140mm |
| Lifting Motor: |
60V/2.2kw |
| Drive Speed: |
4-6km/H |
| Drive Motor: |
60V/1.2kw |
| Export Markets: |
Global |
| Color: |
Red and Black |
| Lifting Height: |
6-11m |
| Application: |
Building Crane |
| Carrying Capacity: |
Middle-Level |
| Driven Type: |
DC |
| Running Mode: |
Moving |
| Feature: |
Insulating |

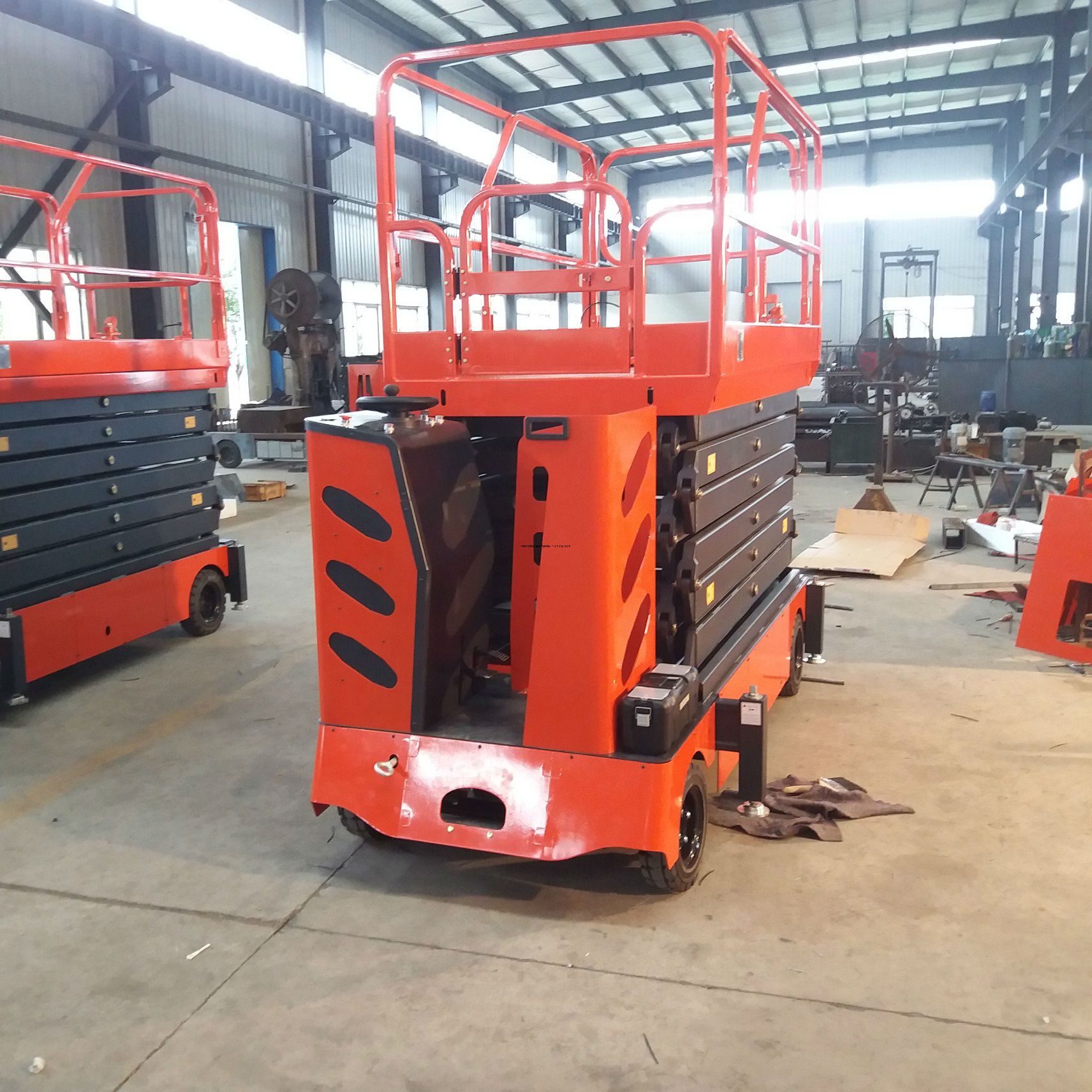

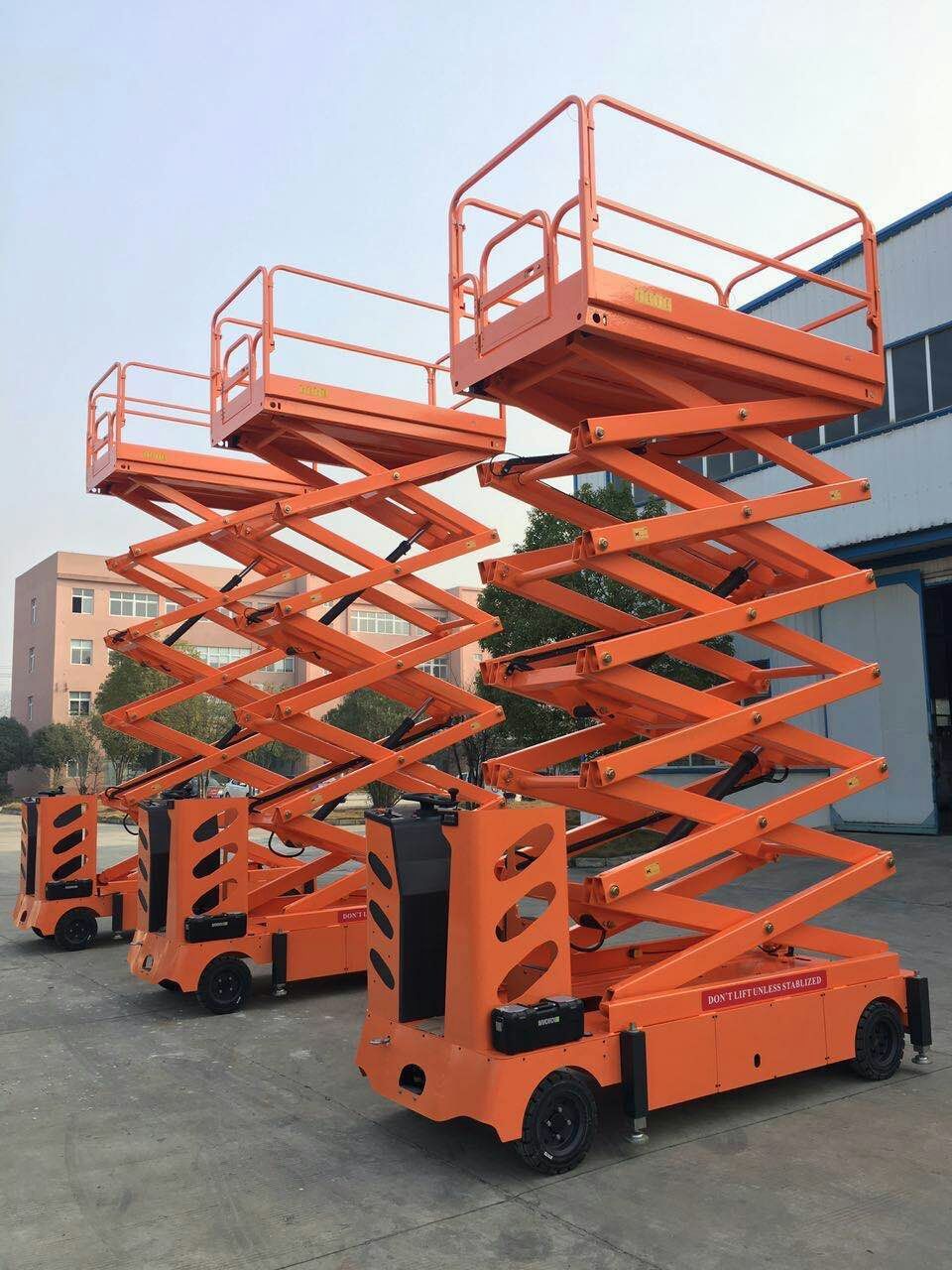

Product Description
Product Description:
1. New design,national patented products (Patent No.201430452809.9), Unique
Transformers series appearance.
2. Folding guardrails conforms with international safety standard, which can effectively
protect the safety of high-altitude operation.

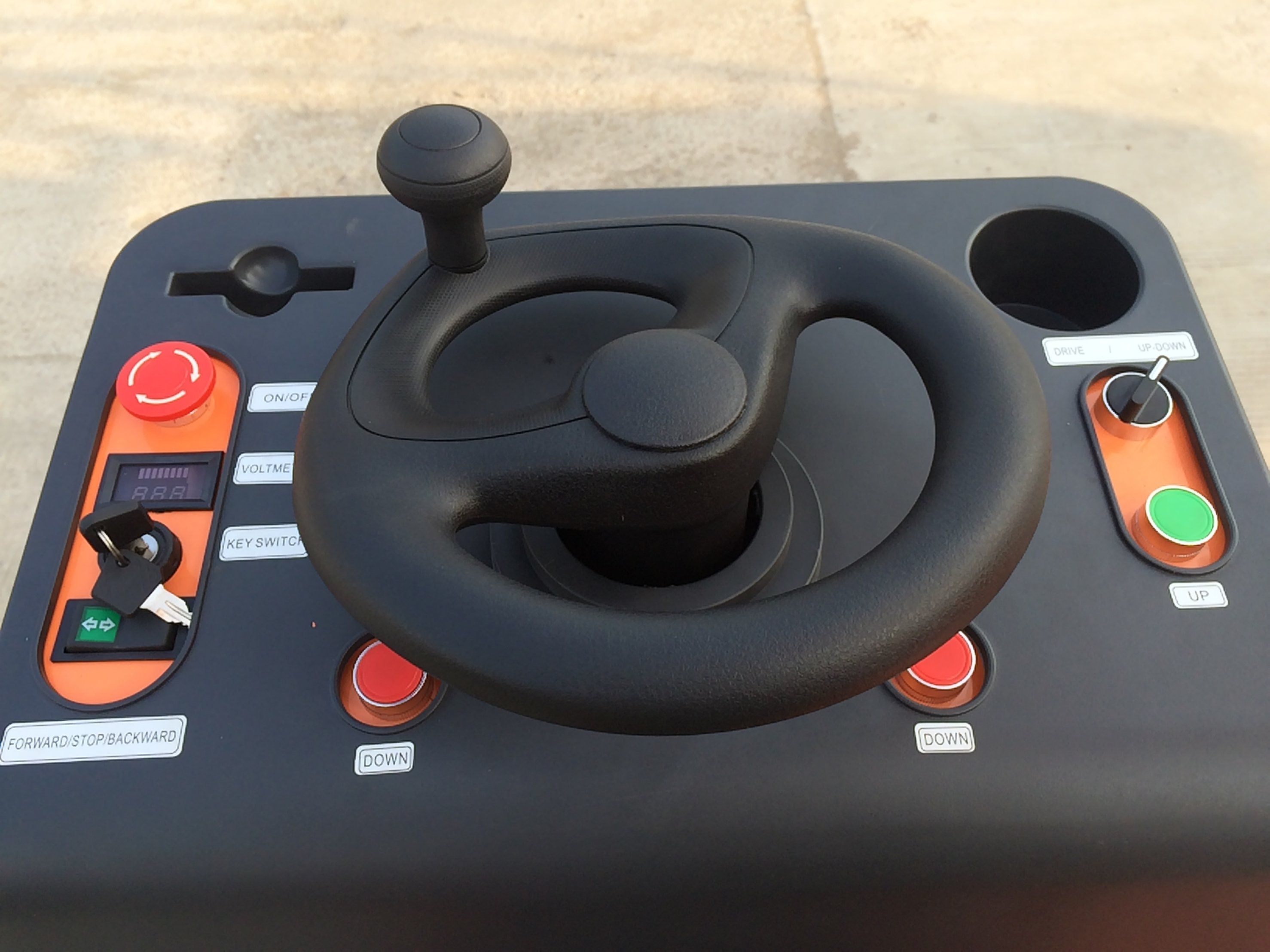

3. The operator can control the movement,lifting and descending to realize continuous
operation at high altitudes.
4. Installed with emergency stop switch to protect personal safety.
Model | Unit | SJZ0.3-6 | SJZ0.3-9 | SJZ0.3-11 | SJZ0.5-6 | SJZ0.5-9 | SJZ0.5-11 |
| Capacity | kg | 300 | 500 |
| Max.Lifting height | mm | 6000 | 9000 | 11000 | 6000 | 9000 | 11000 |
| Min.Plate height | mm | 1127 | 1343 | 1560 | 1290 | 1558 | 1560 |
| Plate size (LxW) | mm | 1830x1000 | 2100x1140 | 1830x1000 | 2100x1140 |
| Unfolding size | mm | 1860x2195 | 2250x2895 | 1860x2195 | 2250x2895 |
| Lifting motor | v/kw | 60/2.2 |
| Motor | v/kw | 60/1.2 |
| Voltage | v | 60 |
| Drive speed | km/h | 4-6 |
| Max.gradeability | % | 10-15 |
| Battery | v/Ah | 60/85 |
| Charger | v/Ah | 60/8 |
| Overall length | mm | 2560 | 2957 | 2560 | 2957 |
| Overall width | mm | 1195 | 1335 | 1195 | 1335 |
| Overall height | mm | 2163 | 2379 | 2596 | 2326 | 2594 | 2596 |
| Net weight | kg | 1090 | 1250 | 1530 | 1350 | 1490 | 1580 |
