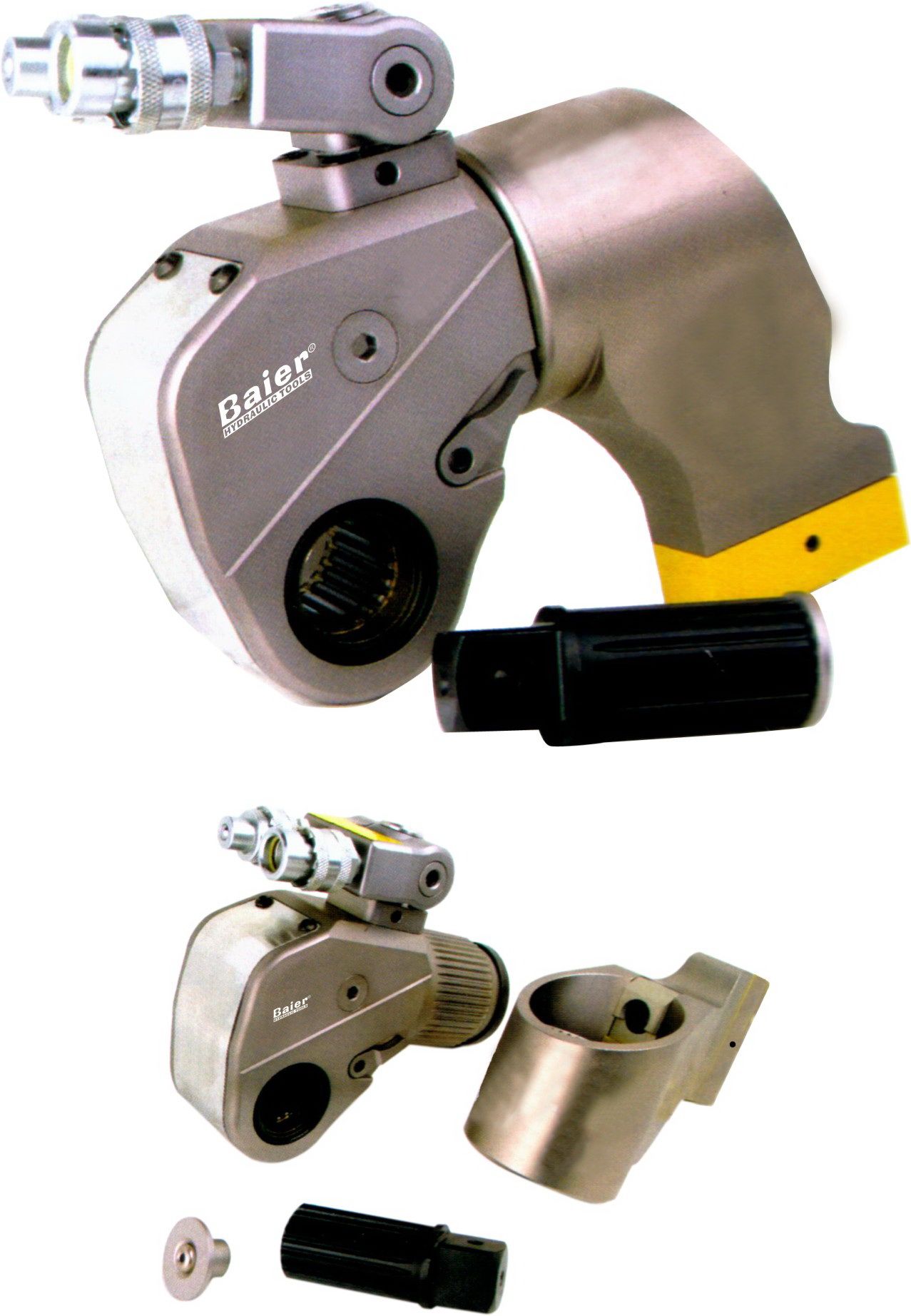

Drive Hydraulic Torque Wrenches RTC Specifications 1.maximum working pressure 70Mpa, torque accuracy +/-3% 2. aluminum alloy body, high strength, high toughness 3. newly design anti loose links. 4.360 ° × 180 ° hose swivel links, no space limits. 5. square drive connected to high-intensity socket, adapt to a wide range of bolts 6.Easily pressed trigger design lock, 360 degree adjustable reaction arm can be freely fixed to the pivot.
Model
RTC02
RTC05
RTC08
RTC10
RTC16
RTC28
RTC35
RTC50
RTC70
MAX Torque(Nm) Nm
1822
4504
7505
10682
15502
26652
34707
48658
71886
MIN Torque(Nm) Nm
188
452
757
1069
1555
2666
3478
4866
7190
Bolt sizeM(mm) (mm)
16-36
22-48
27-56
30-64
36-72
42-90
48-100
64-120
72-125
Weight(kg)
2.6
5.1
7.9
11.2
15.1
26.3
34.8
50.5
87.8
L1(mm)
145
178
211
222
246
308
323
373
400
L2(mm)
174
229
271
293
318
384
401
496
519
H1(mm)
50
68
80
90
100
120
137
153
160
H2(mm)
72
95
123
134
142
183
200
216
223
H3(mm)
96
127
149
167
182
220
247
282
291
H4(mm)
131
176
198
217
232
270
297
331
340
R1(mm)
26
34
39
47
51
59
66
77
81
R2(mm)
85
114
137
153
154
186
199
241
259
axle
3/4''
1''
1 1/2''
1 1/2''
1-1/2''
2 1/2''
2 1/2''
2 1/2''
2 1/2''
Established in 2009, BAIER Hydraulic Power(Wuhan) Co., Ltd.is an professional leading manufacturer of hydraulic tools in China. Such as hydraulic torque wrench, hydraulic cylinders, hydraulic nut splitter, hydraulic gear pullers, hyraulic pumps, etc. Our products have been widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas, etc. Besides, we have gained CE and ISO9001 certificates.

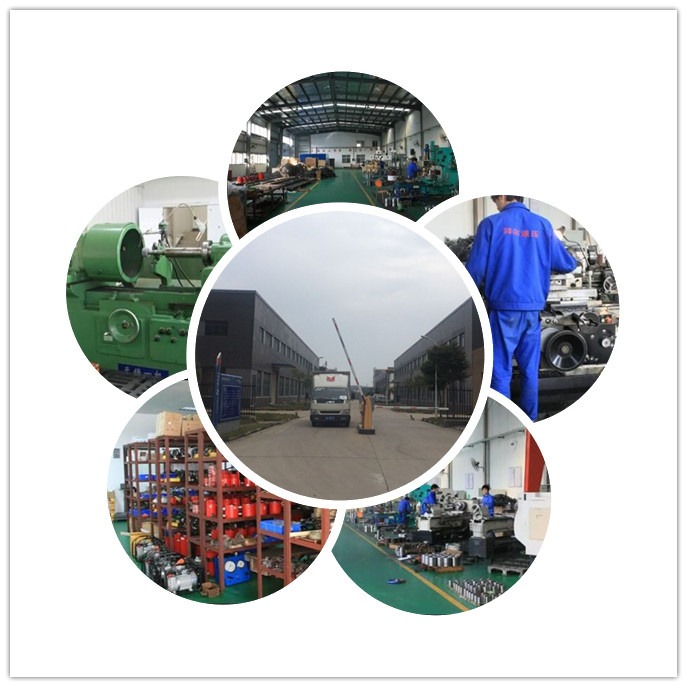

Our Factory: We has established an factory base covering a gross area of 8200 square meters in Qingshan District, Wuhan City, responsible for manufacturing.

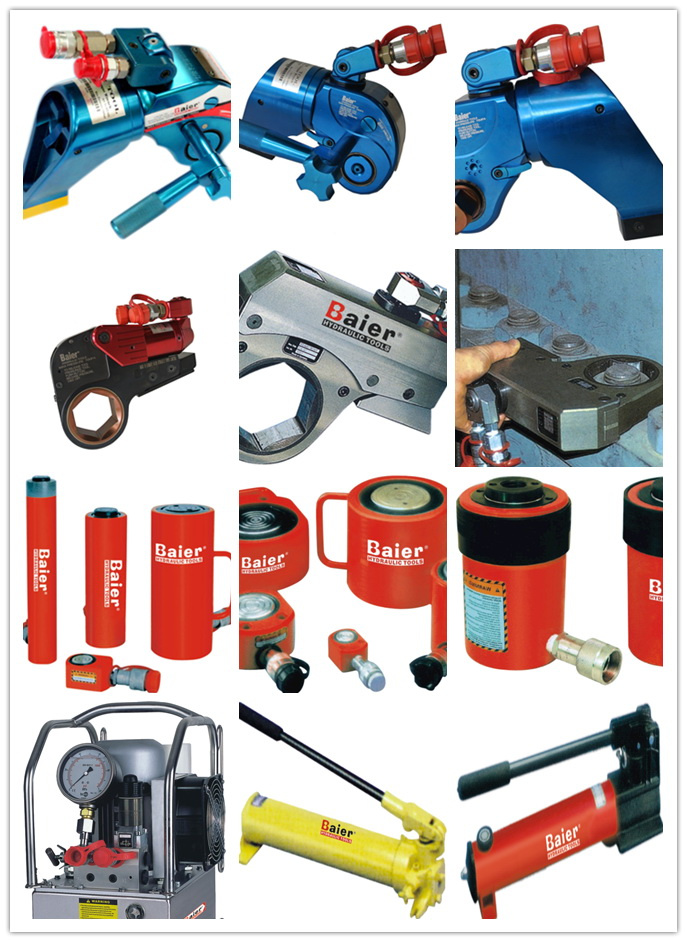

Our main product category includes: Hydraulic cylinders and jacks Hydraulic bolting tools such as hydraulic torque wrench Hydraulic pumps Hydraulic bolt tensioners, nut splitters.
Our Clients: Our clients includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Thanks for your time!
Established in 2009, BAIER Hydraulic Power(Wuhan) Co., Ltd. is an professional leading manufacturer of hydraulic tools in China. Such as hydraulic torque wrench, hydraulic cylinders, hydraulic nut splitter, hydraulic gear pullers, hyraulic pumps, etc.
Our products have been widely sold to Europe, South-east Asia and South Africa, and have got high appreciation and trust from all our customers. Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained ISO9001 certificates.
We has established a factory base covering a gross area of 8200 square meters in Qingshan District, Wuhan City. Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our factory has been approved by ISO9001: 2008. Our products have been widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas, etc. Because our products are widely accepted and approved by our clients in China, we are planning to explore the oversea market by our high quality products and service.
