PP/PE Water Pipe Making Machine

Prod Model:	FE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Processing Material:	PP, PE
Application:	Produce PP, PE Pipes
Screw Type:	Single Screw
Feeding Mothed:	Dosing Feeding System
Apply To Pipe Size:	16-800mm
Low Pressure Electrics:	Schneider
Motor:	Siemens
Inverter:	ABB
Product Type:	PE Pipe
Automation:	Automatic
Computerized:	Computerized
Certification:	UL

Product Description

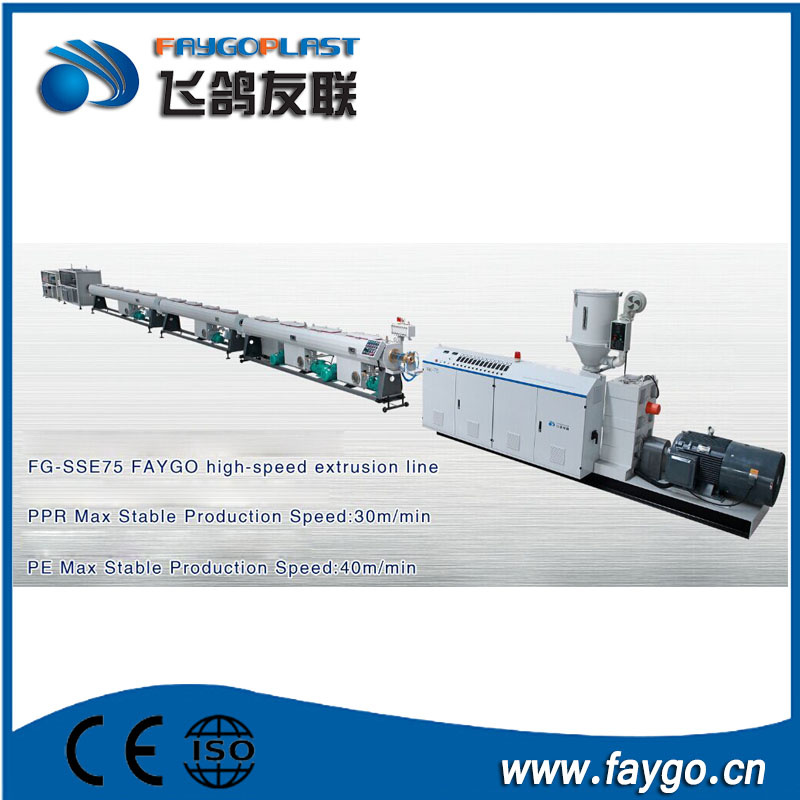

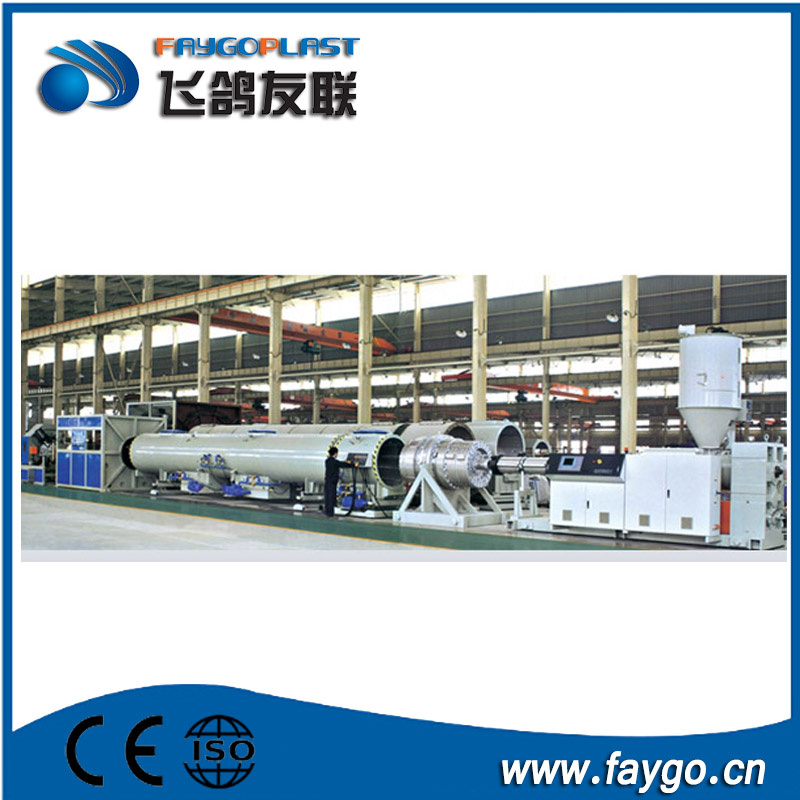

PP/PE water pipe making machine



This machine is mainly used to produce agricultural/water supply pipes, gas supply pipes, architectural water supply/drainage pipes, cable laying pipes etc. This PP PE pipe making machine adopts advanced design concept to ensure the efficient extrusion of PP,PE material combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

Technical data

Model/data	Pipe diameter	Extruder model	Speed	Max capacity
FE63	16-63mm	SJ65	1-12m/min	80kg/h
FE110	50-110mm	SJ75	1-8m/min	150kg/h
FE160	75-200mm	SJ90	1-5m/min	260kg/h
FE400	200-400mm	SJ120	0.5-1.5m/min	450kg/h
FE630	400-630mm	SJ120,SJ90	0.1-0.8m/min	650kg/h
FE800	630-800mm	SJ 150,SJ120	0.1-0.8m/min	800kg/h

Components of PP PE pipe making machine
a. Single screw extruder:
Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

b. pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

c. Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

d. Haul off machine:
Adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

e. Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

6. Pipe stacker or pipe coiler
Automatic pipe stacker for packing the pipes, pipe coiler for small PE pipes like 16-40, 16-75mm, 50-110mm.

Equipment list of PP PE pipe making machine

Compulsory devices
1		Material charge		1 set
2		SJ single screw extruder		1 set
3		Pipe die head		16-800mm, 1 set or several sets
4		Vacuum calibrating tank		1 set or several sets
5		Water spraying cooling tank		1 set or several sets
6		2-3-4-6-8-10-12 caterpillars hauling off machine		1 set
7		no dust-cutting machine or planetary cutting machine		1 set
8		Pipe stacker-4000-6000mm length		1 set
9		Electrical cabinet(ABB, Omron, RKC, Schneider etc)		1 set
10		Spare parts		1 set
Optional Devices
1		color mixer		1 set
2		Plastic crusher		1 set
3		Plastic shredding machine		1 set
4		Industrial water chiller		1 set
5		Air compressor		1 set
6		Thermocontroller for die head		1 set
7		Ink jet printer		1 set
Payment, delivery and after sales services
1	Payment terms		30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable
2	Delivery time		60 days after receipt of prepayment
3	Packing method		Wooden cases/pallets with stretching films
4	Guaranteed time		18 months for mechanical parts, 12 months for electrical parts
5	After sale service		Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable
6	Contact information

Company information:



Jiangsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.

Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Warmly welcome to visit our factory (next to Shanghai)!



FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.

Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.

Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.

Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
