Prod Model: |
22316 MB |
Rollers: |
Super Finishing Rollers |
Feature: |
Self-Aligning Robust Simplify The Application |
Applications: |
Rolling Mill Gear Box, Rolling Mill Roller Bearing |
Capacity: |
High Load Carrying Capacity |
Direction: |
Axial Direction |
Inner Rings: |
Cylindrical or Tapered Bores |
Rolling Body: |
Roller Bearings |
The Number Of Rows: |
Double |
Outer Dimension: |
Extra Large (',440mm) |
Material: |
Bearing Steel |
Separated: |
Unseparated |

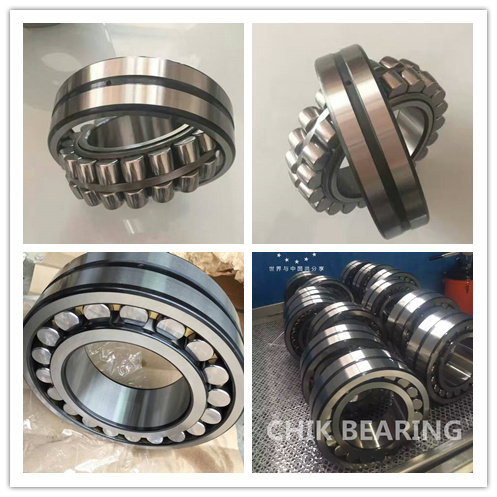

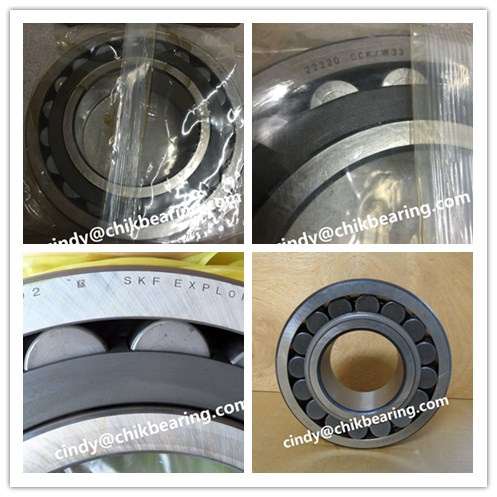

Product Description
Spherical roller bearings offer an attractive combination of design features, which are making them irreplaceable in many demanding applications.
•Self-aligning
•Very high load carrying capacity
•Robust
• Easily fitted for loads in all directions
•Simplify the application
• Protect against contaminants
•Grease retention
•Minimized maintenance requirements
Bearing Parameters:Products name | Spherical Roller Bearings |
Bearing material | 100% Ccr15 Chrome Steel |
Cage Material: | brass cage, steel cage |
Model No.: | 22316 CC W33 |
Size: | 70x170x58mm Weight:6.4kg |
Brand: | SKF, TIMKEN NTN KOYO NSK NACHI URB CHIK.....etc |
Seal type: | open |
No. Of row | double row(two rows) |
Type: | CC,CCK,CA,CAK,E,EK, K.MB, EAE4,E1.K |
Series | 238series,248series,239series,,230series,240series,231,241,222,232series,etc. |
Clearance: | C0, C3, C4 ,C5 |
Application: | Steel industry, oil industry, cement industry, mining & construction, papermaking machinery, rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery |
Bearings NO. | d | D | B | C | C0 | Weight |
mm | mm | mm | kN | kN | kg |
24084 MB/W33 | 420 | 620 | 200 | 4400 | 8300 | 210 |
24084 CC/W33 | 420 | 620 | 200 | 4400 | 8300 | 210 |
24084 CA/W33 | 420 | 620 | 200 | 4400 | 8300 | 210 |
24084 MBK30/W33 | 420 | 620 | 200 | 4400 | 8300 | 205 |
24084 CCK30/W33 | 420 | 620 | 200 | 4400 | 8300 | 205 |
24084 CAK30/W33 | 420 | 620 | 200 | 4400 | 8300 | 205 |
23184 MB/W33 | 420 | 700 | 224 | 5600 | 9300 | 350 |
23184 CC/W33 | 420 | 700 | 224 | 5600 | 9300 | 350 |
23184 CA/W33 | 420 | 700 | 224 | 5600 | 9300 | 350 |
23184 MBK/W33 | 420 | 700 | 224 | 5600 | 9300 | 340 |
23184 CCK/W33 | 420 | 700 | 224 | 5600 | 9300 | 340 |
23184 CAK/W33 | 420 | 700 | 224 | 5600 | 9300 | 340 |
24184 MB/W33 | 420 | 700 | 280 | 7350 | 12600 | 445 |
24184 CC/W33 | 420 | 700 | 280 | 7350 | 12600 | 445 |
24184 CA/W33 | 420 | 700 | 280 | 7350 | 12600 | 445 |
24184 MBK30/W33 | 420 | 700 | 280 | 7350 | 12600 | 440 |
24184 CCK30/W33 | 420 | 700 | 280 | 7350 | 12600 | 440 |
24184 CAK30/W33 | 420 | 700 | 280 | 7350 | 12600 | 440 |
23284 MB/W33 | 420 | 760 | 272 | 7350 | 11600 | 535 |
23284 CC/W33 | 420 | 760 | 272 | 7350 | 11600 | 535 |
23284 CA/W33 | 420 | 760 | 272 | 7350 | 11600 | 535 |
23284 MBK/W33 | 420 | 760 | 272 | 7350 | 11600 | 520 |
23284 CCK/W33 | 420 | 760 | 272 | 7350 | 11600 | 520 |
23284 CAK/W33 | 420 | 760 | 272 | 7350 | 11600 | 520 |
Mainly Application: heavy machinery (e.g. construction and mining machines), rolling mills, gear boxes, Vibrating screen,shaker screens, etc. Paper making machinery, rolling mill gear box, rolling mill roller bearing, crusher, vibrating screen, printing machinery, woodworking machinery, railway vehicle axleand other industrial deceleration machine
FAQ Q: Are you trading company or manufacturer ?
A: We are factory in Jinan,Shandong and have 100+ workers. We have the capacity of OEM and designing roller bearing.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
We Are More Professional In Roller Bearings!
Contact us:Contact person: Ms. Cindy Wang
Mob:+86 15806683165
Chik bearings established in 2001, produces a wide range of ball and roller bearings for automotive making, Ferrous Metallurgy, Chemical Machinery and Machine Manufacturing in its primary plants in China mainland. Our main bearing products include Deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, spherical ball bearings, spherical roller bearings, single row angular contact bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings pump bearings, and many non-standard bearings are also in our product range. The annual output is more than 10 million sets.
To stay in front and making progress, we continually keep expanding our manufacturing capabilities in more cities where are more traffic-developed and Resources-adequate in Liaocheng, Ningbo and Tianjin in China.
Our plant was equipped with fully modern enclosed dust-free workshop and warehouse, with improved detection technology. This enables us produce many high quality bearings and meet customers delivery time. All products could meet many advanced international standards with high quality steel and fully testing treatment.
Our main product:
Spherical roller bearings
Taper roller bearings
Cylindrical roller bearings
Angular contact ball bearings
Deep groove ball bearings
Thrust ball bearings
Thin section bearings
Self-aligning ball bearings
Needle roller bearings etc.
Sincerely hope to establish business relationship with your esteemed company in the near future.
Any inquiry or order placement, please feel free to contact us.
