Precision CNC Dicing / Cutting Saw with Laptop and Software - Syj-400

Name: Precision CNC Dicing / Cutting Saw with Laptop and Software - Syj-400
Brand: tool-buy.com
SKU: 718757572
Availability: InStock
Rating: 4.9 (145 reviews)

Price:	US $ 99-1999/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.

Showroom Product Company Profile

Prod Model:	SYJ-400
G:	H

Product Description

Model:

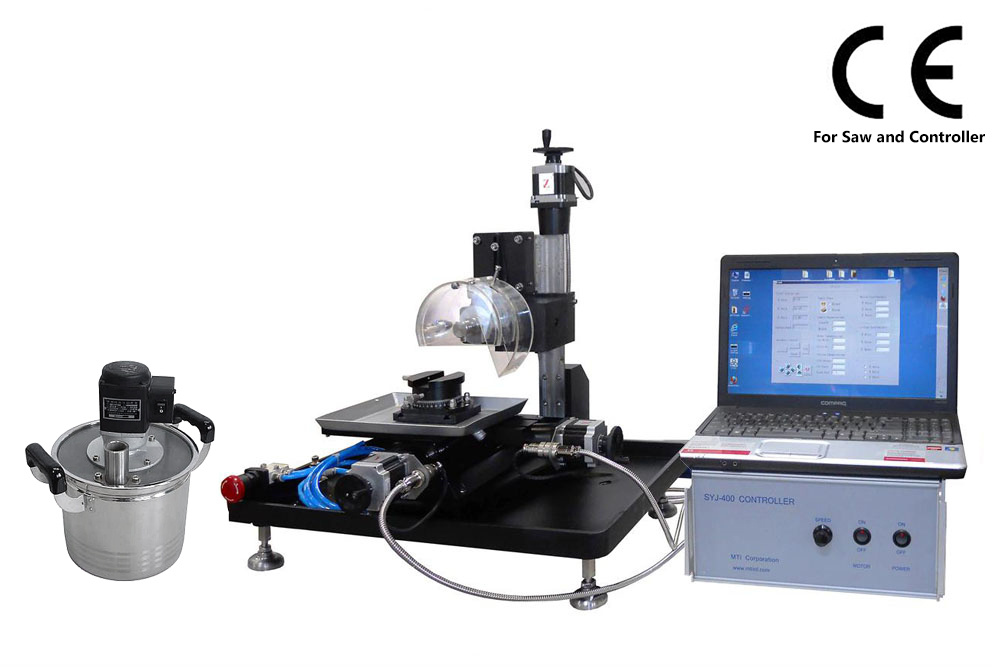

SYJ-400 CNC Cutting/Dicing Saw

Brief Introduction:

SYJ-400 CNC Cutting/Dicing Saw is a CE certified cutting saw, designed from the manufacture of precision computerized milling and grinding machine. Main motor, adjustable speed box, lead screw, hand wheel, lead rail, stepping motor are imported from US. It can be used for cutting and dicing all kinds of materials, depth can reach to 25mm. The machine is completely controlled by computer, accuracy is 0.01mm, providing a full MTI operating program, or single board machine operating program, can be programed by customer, automatic cut. Sample flatform can rotate 360°, equipping with one cross mount vise, one vacuum chuck.

Main
Feature:

SYJ-400 CNC Cutting/Dicing Saw:High precision processing, program is flexible and diversified, easy to operate.

Technical
Parameter:

1. 0.5HP high torque DC motor, Stepless speed adjust:0-3000RPM,Voltage:110V-220V
2. X=230mm, Y=130mm, Z=110mm(Max. travel distance).PC control stepping motor moving resolution:0.0025mm, Position accuracy:0.01mm.
3. Equip with one precision sample platform(Dia:80mm), can turn 360° , cutting angle tolerance:+ /-0.5 .
4. Dia. precision vacuum pump:100mm
5. Blade clamps(3 set):Φ90mm, Φ62mm, Φ42mm
6. Cutting depth:50mm

Specification:

Size:580×560×660mm Weight:39kg

Standard Accessories:

1.	Electroplating diamond blade : Φ100×12.7×0.4mm	2pcs
2.	Full sintered Diamond Blade:Φ100×12.7×0.35mm	1pc
3.	Vacuum pump	1set
4.	Cross mount vise	1set
5.	Aluminum Plate	2pcs
6.	Steel plate for holding sample	2pcs
7.	Blade clamps	3set
8.	Wax	4pcs
9.	Resin ceramic block	2pcs

Optional Accessories :

1. Edge sintered Diamond Blade:150×12.7×0.40mm
2. Dicing diamond blade
3. TW-0.5C Vacuum pump
4. Water-proof cover

Product Purpose:

Used for cutting crystal, ceramic, glass, rock, metal samples.

Standard package

Standard package( shock absorption and moisture proof)
