| Prod Model: |

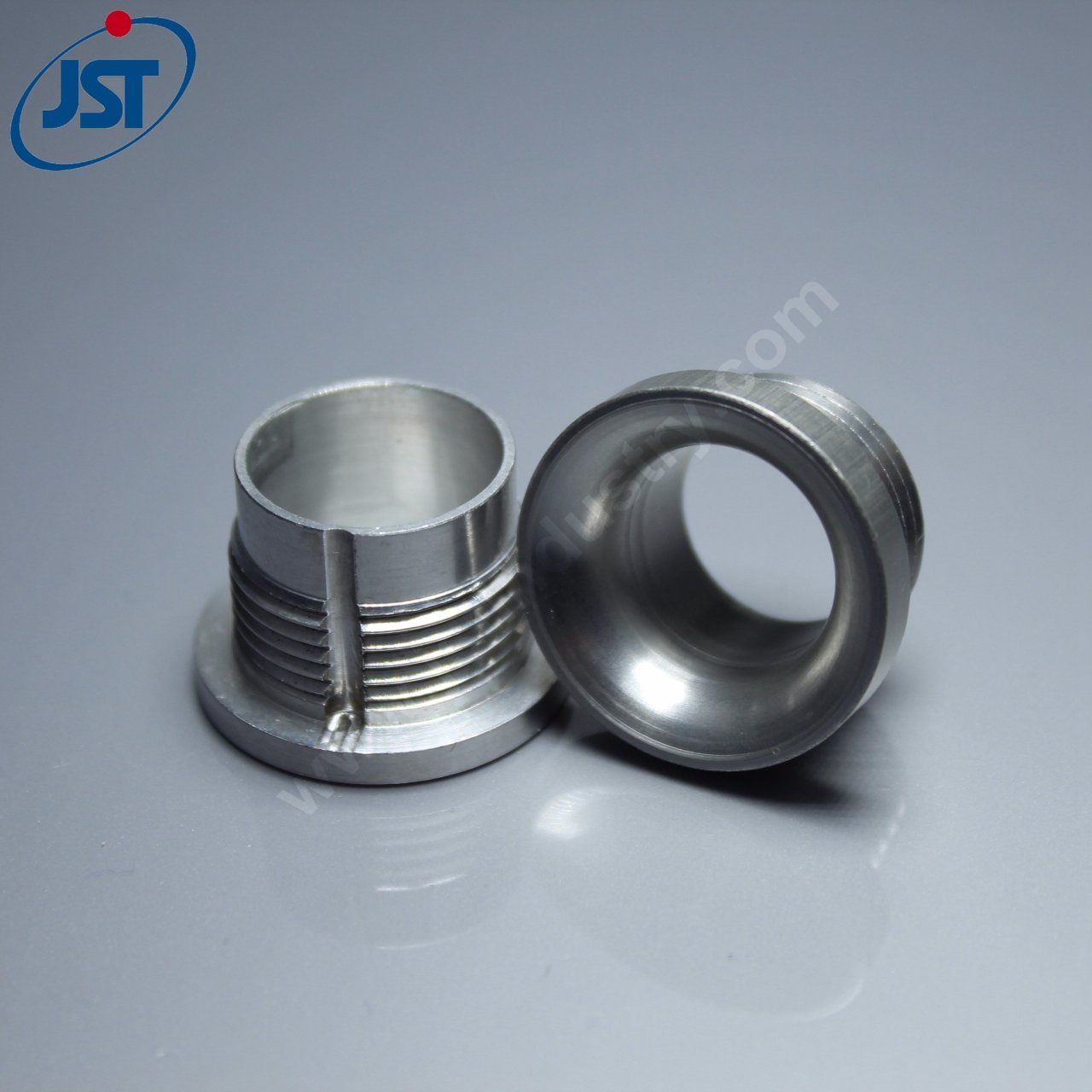

CNC Turning (JST-CT139) |
| Name: |
Metal Hardware |
| Processing Method: |
CNC Machining, CNC Milling |
| Finish Treatment: |
Sand Blasting, Clear Anodizing |
| Roughness: |
Ra1.6 |
| Tolerance: |
+/-0.01mm |
Product Description

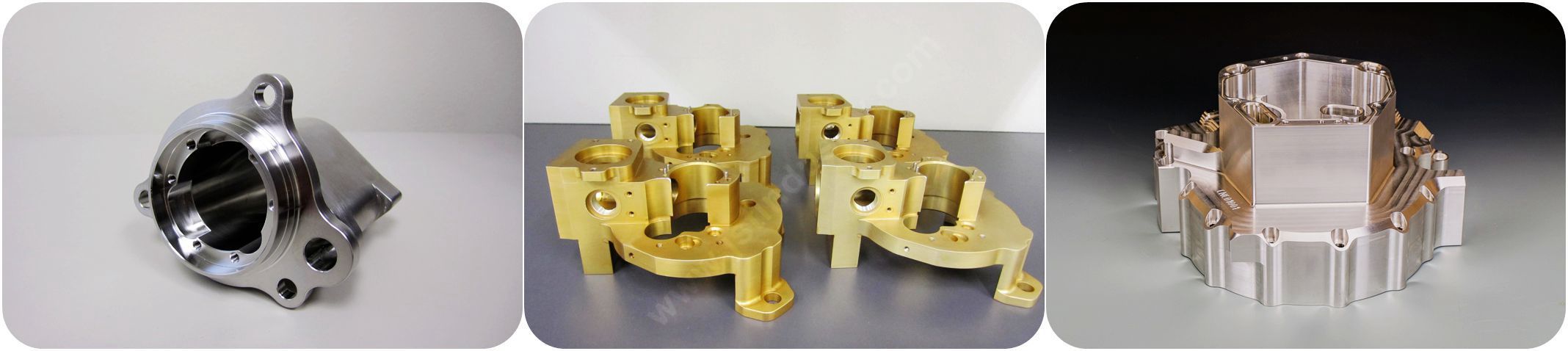

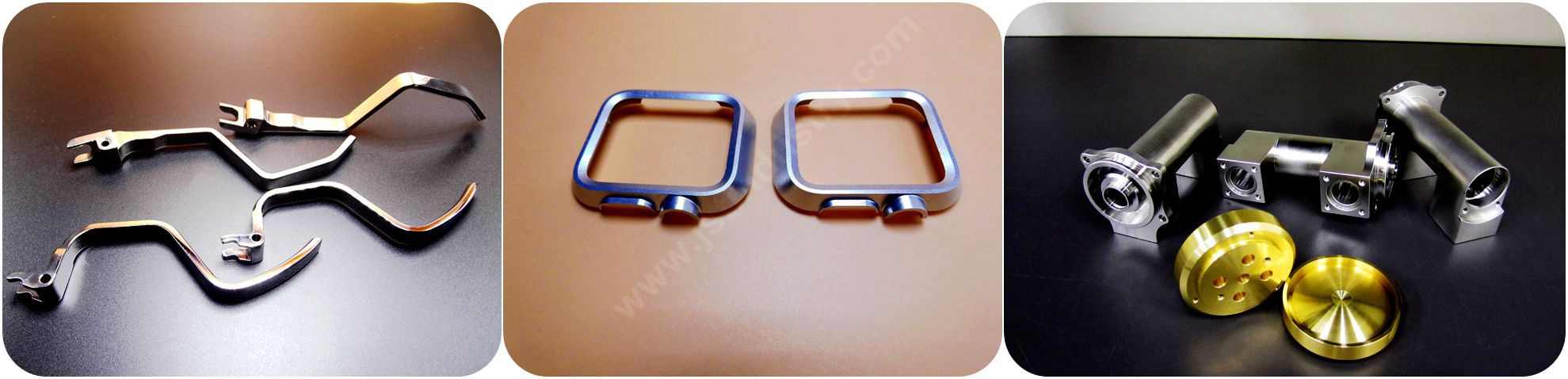

Precision Custom Made CNC Machining Metal Hardware For Aircraft

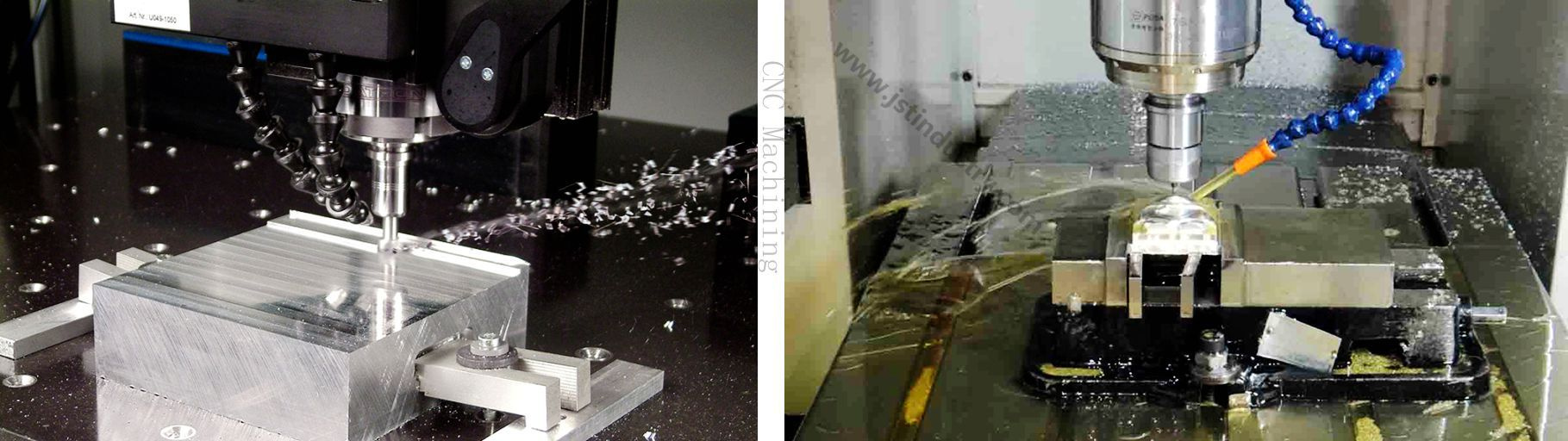

At JST Industry, we use the latest machining technology with a wide range of capabilities to meet your demands. Our manufacturing facilities include 3-5 axis milling, lathes, grinding, etc, and state of the art metrology. With these machines, we produce complex parts in the most efficient and accurate way. Our manufacturing capabilities allow us to develop your part from prototype to mass production for the most precise of jobs.
| Processing Method | CNC Milling, CNC Turning, Turning-Milling Machining, Micro Machining, Grinding, Boring, Tapping. |
| Material | Stainless Steel, Alloy Steel, Carbon Steel, Free-cutting Steel, Brass, Copper, Aluminum, POM, PTFE. |
| Finish Treatment | Polishing, Sand Blasting, Anodizing, Zinc Plating, Nickel Plating, Blackening, QPQ, Painting, etc.. |
| Tech. Standard | ANSI, ASTM, DIN, JIS, BS, GB, ISO, etc.. |
| Application | Medical, Aerospace, Millitary, Instrument, Optics, Food Equipment, AUTO Parts, Furniture, etc.. |
Precision Machining is the most important sector in JST Industry, we have been a trusted manufacturing supplier in this field for over 15 years. We have built an impeccable reputation on quality, customer service
and utilizing state-of-the-art equipment. Our expertise has made us the Best in Quality and Innovation.

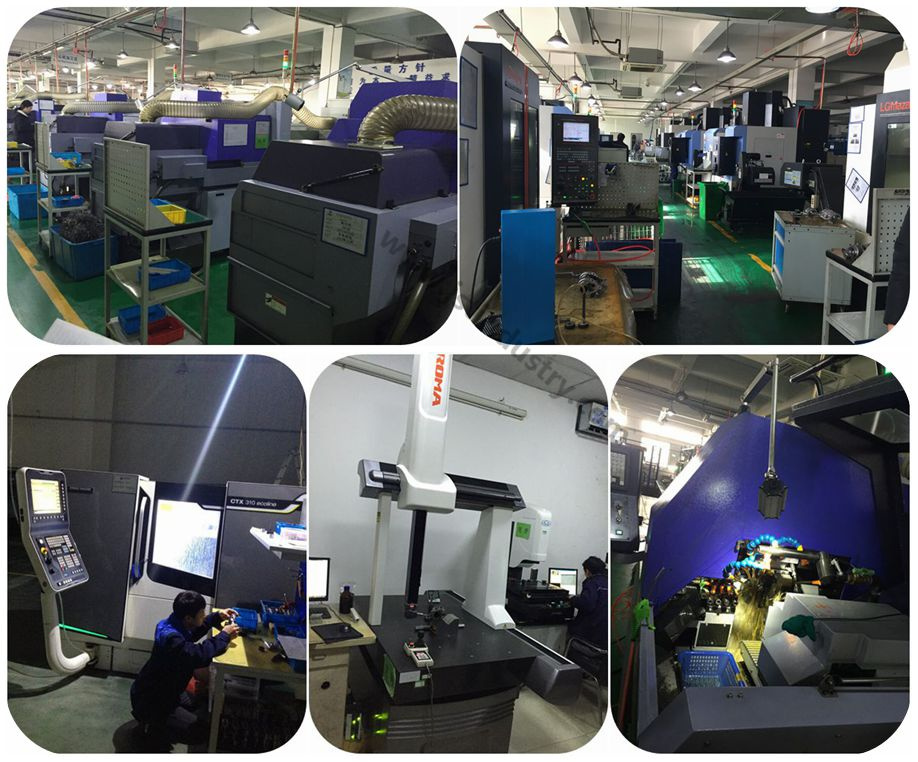

Machining Facilities | Equipment Description | Workpiece Dimensions | Processing Accuracy | Quantities | Brand |
| 3-axis machining center | Max. 1000 x 1200mm | +/-0.01mm | 6 | DMG |
| 4-axis machining center | Max. 1000 x 1500mm | +/-0.01mm | 4 | DMG |
| 5-axis machining center | Max. 1000 x 1500mm | +/-0.01mm | 2 | DMG |
| CNC lathe | Max. diameter 100mm | +/-0.01mm | 20 | SMTCL |
| General lathe | Max. diameter 500mm | +/-0.05mm | 2 | SMTCL |
| Turning-Milling machine | Max. diameter 100mm | +/-0.01mm | 6 | DMG |
| Longitudinal lathe | Max. diameter 30mm | +/-0.01mm | 6 | TSUGAMI |
| Automatic lathe | Max. diameter 20mm | +/-0.02mm | 30 | TY |
| CNC Swiss Lathe | Max. diameter 20mm | +/-0.01mm | 6 | TSUGAMI |
Other assist equipments include:
Milling machine, Drilling machine, Centerless Grinding machine, External Cylindrical Grinding machine, etc.
Inspection equipment:Vernier Caliper, Micrometer, Height Gage, Hardness Tester, Two-dimensional image measuring instrument, TESA Micro-Hite
300, Mitutoyo surface Roughness Tester, Mitutoyo CMM and Ultrasonic Cleaner.
FAQQ1: Are you a trading company or a manufacturer?Manufacturer.
Q2: How long is your delivery time?Normally, the samples delivery is 10-15 days and the lead time for the official order is 30-45 days.
Q3: How long will it take to quote the RFQs?Normally, it will take 2-3 days.
Q4: Do you provide samples?Yes, the samples will be free if the cost is not too high.
Q5: Which countries are your target markets?America, Canada, Europe, Australia and New Zealand.
Q6: Do you have experience of doing business with overseas customers?Yes, we have over 10 years exporting experience and 95% of our products were exported to overseas market. We specialized in the high quality OEM parts, we are familiar with the standard of ANSI, DIN, ISO, BS, JIS, etc..
Q7: Do you have reference customers?Yes, we have been appointed as the supplier of Parker(USA) and ITW(USA) since 2012. "Supply the top quality precision machined parts" is our management philosophy, ON TIME and EVERYTIME.

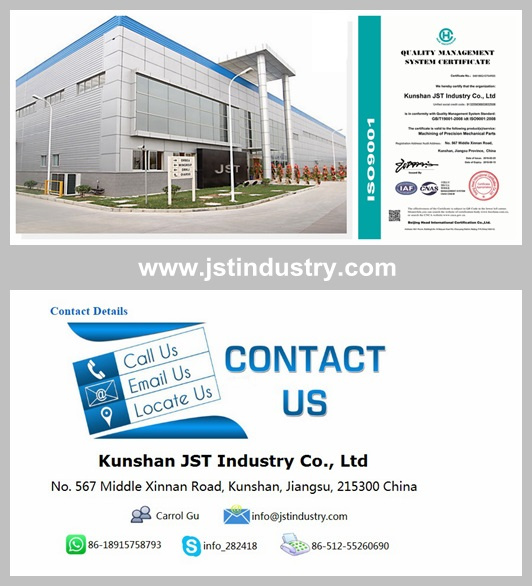

Kunshan JST Industry Co., Ltd is a professional manufacturer of CNC machined components, which was founded in 2009. We focus on Custom CNC Machining (OEM & ODM), over 95% products were exported to the US and European countries. Most of our machined parts were applied in the field of medical, aerospace and aviation, precision instruments, food equipment, auto parts and electronics.
Our machining facilities include,
3-axis machining center: 6 sets, DMG.
4-axis machining center: 4 sets, DMG.
5-axis machining center: 2 sets, DMG.
CNC late: 20 sets, SMTCL.
General lathe: 2 sets, SMTCL.
Turning-Milling compound machine: 6 sets, DMG.
Longitudinal lathe: 6 sets, TSUGAMI.
Automatic lathe: 30 sets, TY.
CNC automatic lathe / CNC Swiss lathe: 6 sets, TSUGAMI.
Other assist equipments include:
Milling machine, Drilling machine, Centerless Grinding machine, External Cylindrical Grinding machine, etc.
Inspection equipment:
Vernier Caliper, Micrometer, Height Gage, Hardness Tester, Two-dimensional image measuring instrument, TESA Micro-Hite 300, Mitutoyo surface Roughness Tester, Mitutoyo CMM and Ultrasonic Cleaner.
Material & Finish:
303 / 304 / 316 / 316L / 316Ti stainless steel, carbon steel, free-cutting steel, Titanium, brass, bronze, copper, aluminum, PTFE / PEEK and other plastic. We are familiar with the standards of ANSI, DIN, ISO, BS, JIS, etc...
Polishing, Zinc Plating, Nickel Plating, Chroming, Sand Blasting, Anodizing, Blackening, QPQ, Electropolishing, Magnetic Abrasive Finishing.
JST Industry covers over 5000 squre meters, our turnover in 2017 is 5 million US dollars. If you have any inquiries within our dealing scope, please do feel free to send us drawings or samples for quotation. We believe, JST Industry will be your reliable supplier.
