Precision Endless Wire Saw with Digital Micrometer and Two Angle Adjustable Sample Stage - Stx-201

Precision Endless Wire Saw with Digital Micrometer and Two Angle Adjustable Sample Stage - Stx-201
Price: US $ 99-7999/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: STX-201

Product Description

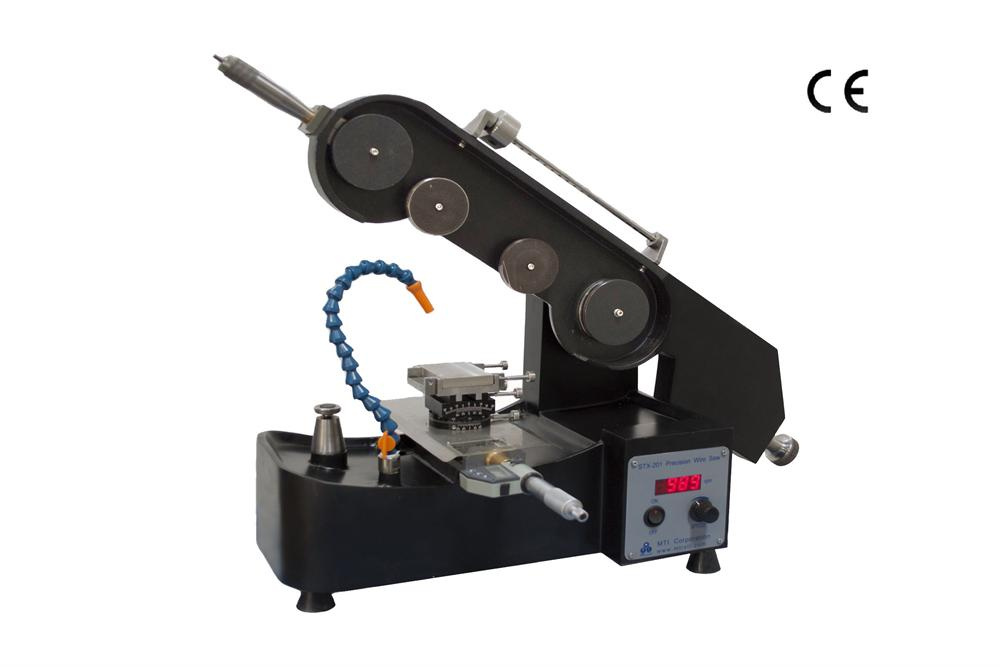

Model:STX-201 Precision Endless Diamond Wire Saw
Brief
Introduction:
STX-201 Precision Endless Diamond Wire Saw is an ideal tool for cutting valuable delicate, fragile, small size materials.Impregnated diamond wire is good for cutting different fragile crystal and substrate.Operating platform can rotate 360°, Y-axis:±15°quick-change 90° fixture.Cutting wire tension adjustable equipment can achieve precision cutting.
Technical
Parameter:
1.Stepless speed adjustable:50-900rpm   Cutting wire length:0.84m(annular)
2.Y, Z-axis indicating value accuracy:0.01mm
3.Y, Z-axis max travel distance:≤52mm
4.Two dimension vise horizontal /tilt angle:0-360°/±15°
5.Max.Cutting diameter and length:50×50mm
Specification:Size:761×295×373mm  Weight:25kg
Standard
Accessories:
Diamond annular wire2PCS
Leading wheel2PCS
Water pump1PC
Wax4PCS
Resin ceramic block2PCS
Two dimension vise1set
Cross vise1PC
Optional
Accessories :
Diamond impregnated wire 0.25mm diameter(US imported)etc.
Standard
Package:
1.Power cord
2.Operating platform(horizontal travel distance 25mm, two dimension vise adjustable)
3.A set of quick-change 90° fixture
4.Operation manual
company informationLaizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.

Laizhou Weiyi Experimental Instrument Manufacturing Co. Ltd. Is engaged in domestic metallographic sample preparation equipment, sample preparation supplies R & D, production and sales of leading enterprises. The company was founded in 2001, covering an area of 55 acres. We have 110 staff at present, among which there are 32 engineering and technical staff, 17 staff working for products and technology development. We are a high-tech enterprises authorized by Shandong science and technology department, as well as the base on scientific research in Shandong province.

In 2004, the company passed the ISO9001 quality system certification.

In 2005 we achieved the independent right of import and export.

In 2011 we first achieved CE certification in the domestic industry, laying the foundation for the comprehensive development of international market.

We have established 3 sales companied in China, more than 200 dealers. Meanwhile we have more than 20 foreign agents in the world.

We have been focusing on the investment in technology development. In recent years we have developed a number of international advanced level of metallographic sample preparation equipment. We have won 4 national invention patents, dozens of patents of utility model patents as well as the appearance patents. Several products can replace the imported products, which makes the "WEIYI"brand the leading brand in the domestic industry.
