| Price: | US $ 5000-15000/Piece |
|---|---|
| Trade Terms: | by Sea |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

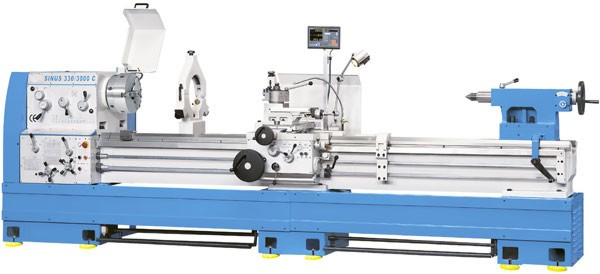

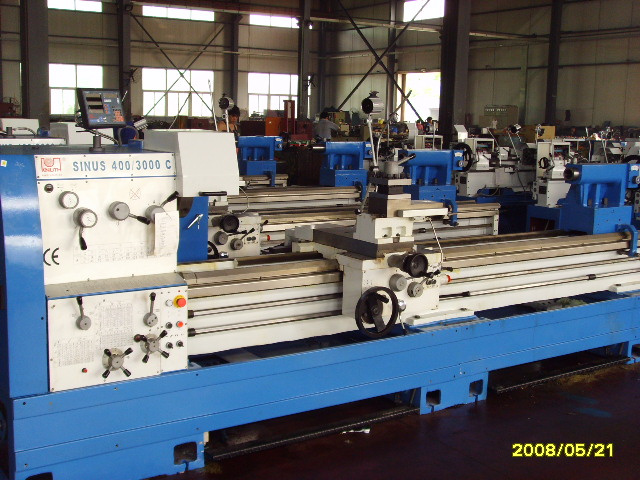

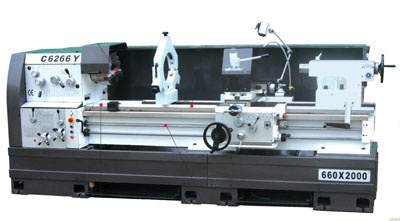

| Prod Model: | Precision Engine Lathe CY6260,CY6266,CY6280 spindl |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Horizontal Lathe |
| Power Source: | Electric |
| Controlling Mode: | Artificial |
| Automatic Grade: | Semiautomatic |
| Setting Mode: | Floor-type |
| Precision: | High Precision |
| SPECIFICATIONS | MODELS | |||
| Cy6 2 60 | Cy6 2 66 | Cy6 2 80 | ||
| CAPACITY | Swing over bed | 600 (23 3 /5" ) | 660mm(26" ) | 800mm(31 1 /2" ) |
| Swing over cross slide | 375mm(14 3 /4) | 435mm(17 1 /8" ) | 545mm(21 2 /5" ) | |
| Swing in gap | 800(31 1 /2" ) | 860(33 4 /5" ) | 1000(39" ) | |
| Valid length of gap | 2800mm(11¡ ± ) | |||
| Max. length of work piece | 1000mm (39 1 /3" ) 1500mm (59" ) 2000mm(78 3 /4" ) 3000mm(118" ) | |||
| Width of bedways | 400mm(15 7 /10" ) | |||
| HADSTOCK | Spindle nose | ISO--c11 or ISO--D11 | ||
| Spindle bore | 103mm(4" ) | |||
| Range of spindle speeds/step | 18 (ccw/18)9-1275rpm 6 (cw/6£ © 16-816rpm | |||
| FEEDS AND THREADS | Max. travel of compound rest | 110mm(4 1 /3" ) | ||
| Max. travel of cross slide | 325mm(12 4 /5" ) | |||
| Longitudinal feeds range | 12mm or 2 TPI | |||
| Section of tool | 32*32mm | |||
| Longitudinal feeds range | 72kinds 0.073-4.066 mm/rev | |||
| Cross feeds range | 72kinds 0.036-2.033 mm/rev | |||
| Metric threads range | 72kinds 0.5-112 mm | |||
| Inch threads range | 72kinds 56-1/4 inch | |||
| Module threads range | 36kinds 0.5-7 | |||
| Diametral threads range | 36kinds 56-4D. P | |||
| TAIL STOCK | Dia. of tailstock sleeve | 90mm | ||
| Morse taper of tailstock sleeve | Morse No. 6 | |||
| Travel of tailstock sleeve | 150mm | |||
| Cross adjustment range | 10mm | |||
| MOTOR | Power of main motor | 7.5kw or 11kw | ||
| Power of quick-travel motor | 250w | |||
| Power of coolant pump | 125w | |||
| Power of coolant pump | 220v, 380v, 440v(50HZ£ ¬ 60HZ) | |||
| Packing Size(L*W*H) | 1000mm | 3820*1300*2100mm | ||
| 1500mm | 3320*1300*2100mm | |||
| 2000mm | 3820*1300*2100mm | |||
| 3000mm | 4820*1300*2100mm | |||
