| Shaping Mode: |
Injection Mould |
| Process Combination Type: |
Single-Process Mode |
| Application: |
Hardware |
| Installation: |
Fixed |
Product Description
Product Description
Customization Plastic Injection Moulding
♦ OEM/ODM Service
♦ QC inspection
♦ ISO9001 certified
♦ 10 years of experience in OEM/ODM products | Material | Aluminum, Steel, Stainless steel, Aluminum alloy,Brass, ABS,etc. |
| Surface Treatment | Polishing, Powder coating, Spraying, Anodizing, Zinc Plating and etc. |
| Tolerance | +/-0.02~0.05mm |
| Equipment | a) CNC Machining Center |
| b) CNC Lathes |
| c) CNC Milling Machines |
| d) Punching Machines |
| e) Precision Cutting Machines |
| f)CNC Bending Machine |
| Preferred Formats | JPEG,PNG,PDF,CAD,Prt,STEP,IGS,UG,Solidwork |
| Preferred Industries | a)Communication Equipments |
| b)Houseware |
| c)Electric Components |
| d)Automobile and Motorcycle Parts |
| e)Other Customized Design |
| Mould Base | LKM, DME, HASCO etc |
| Cavity/ Core Material | 1.2738,1.2343, 1.2344, S7, H13, P20HH, GS738H, LKM738H, 718, 8407, S136H, Calmax 635 NAK80, |
| SKD-61,NIMAX, 45#, 50#, |
| Steel Hardness | 20-60HRC |
| Treatment | Pre-Harden, Nitride, Harden, Quenching |
| Cavity Qty | Single-cavity / Multi-cavity |
| Runner | Cold runner or Hot runner :YUDO/ HUSKY/MOLD-MASTER/SYNVENTIRE/INCO/ MASTIP/ HASCO/ DME |
| Gate | Sub gate, tunnel gate, side/edge gate, direct gate, pin point gate, sprue gate, diaphragm gate, fan gate, cashew gate, hook gate, hot tip, hot drop, valve gate etc. |
| Plastic material for parts | PS, SAN, PA, POM, ABS, PP, PET, PC, PE, HDPE, PA66+GF, PVC, TPE, TPU, TPV etc |
| Mould Life | 30K - 1 million cycles |
| Design Software | UG, CAD, PRO-E, Solid Works etc, |
| Process | CNC, high speed carve, EDM ,wiring-cutting, drill, polish etc |
| Lead Time | 20-40 days depends on the structure and size of products |
| Package | Wooden Case Package or according to customer's requirement |
| Price Term | EX Works, FOB,CIF |
| Payment | T/T |

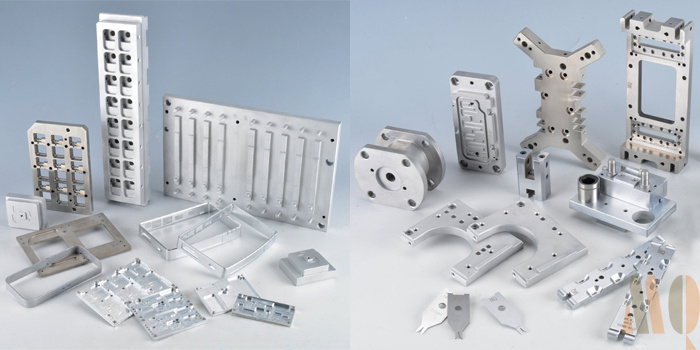

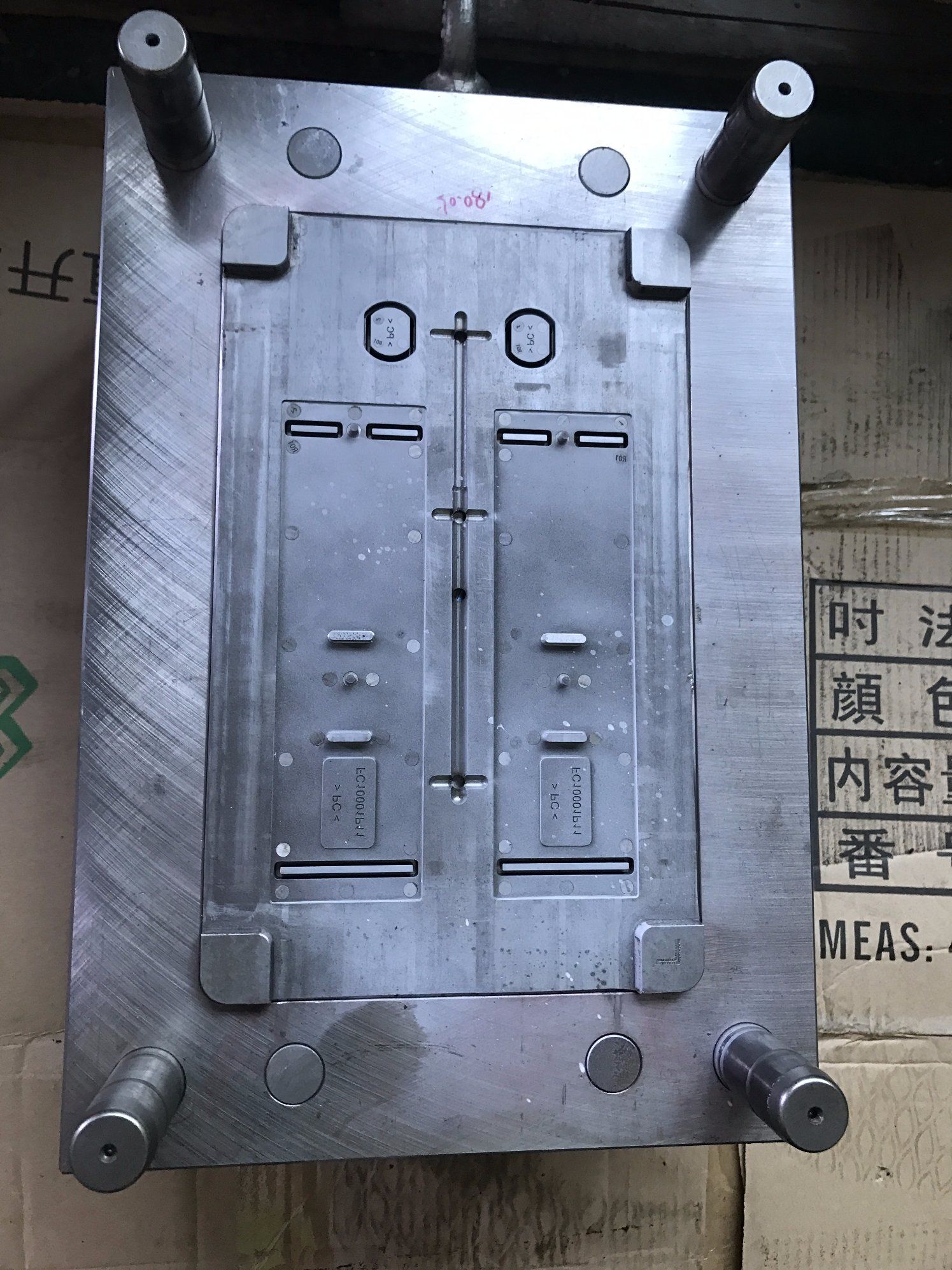

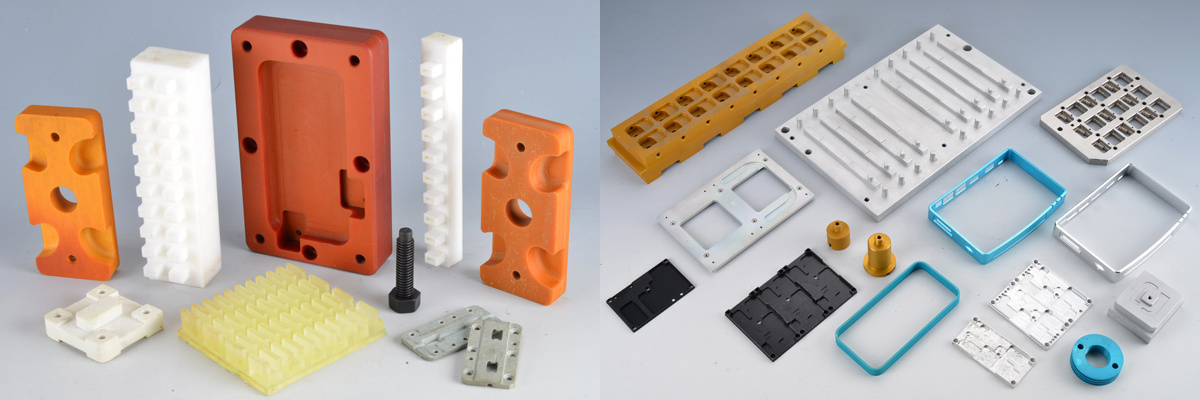

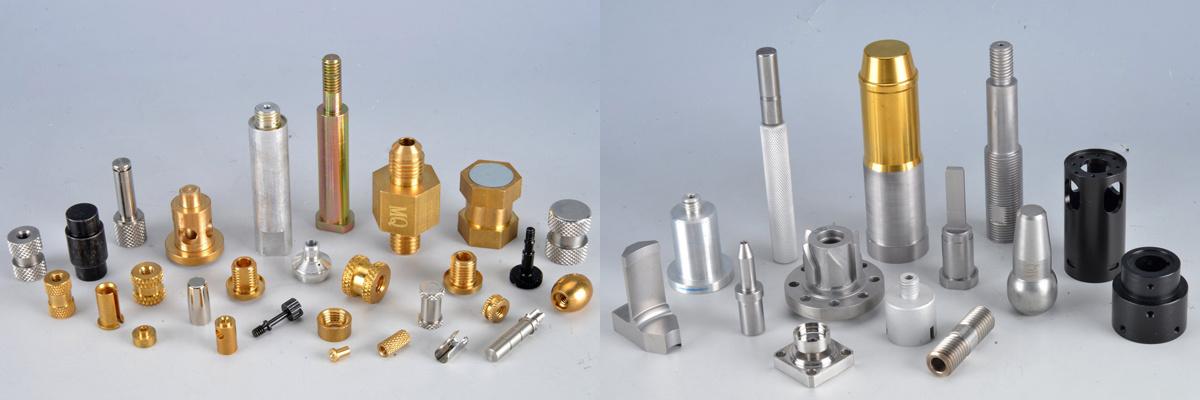

Product Show

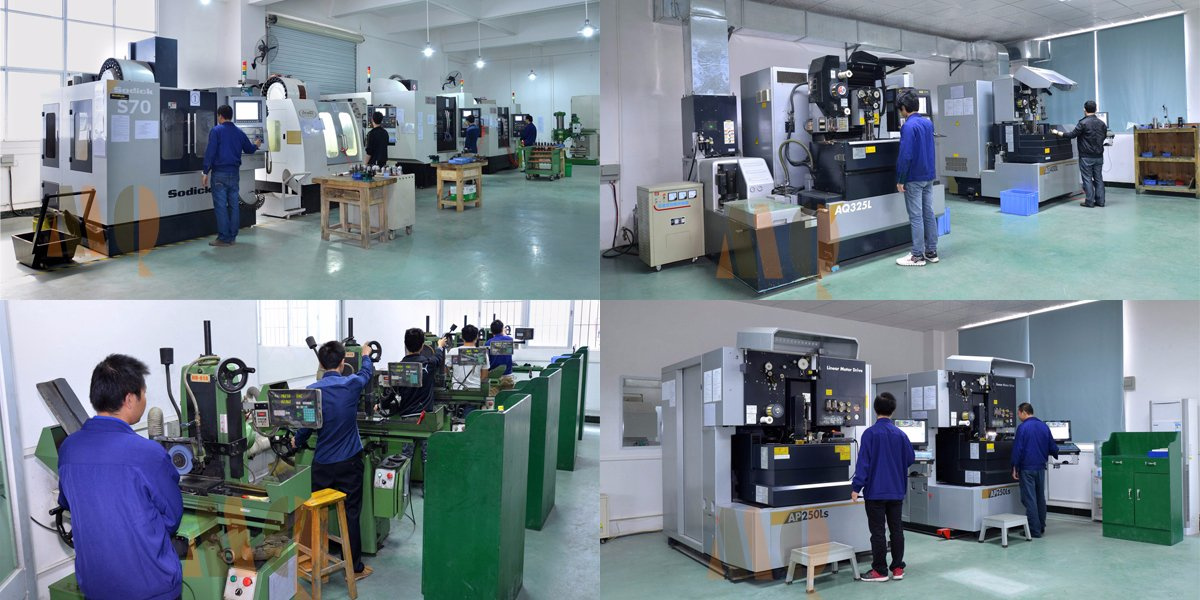

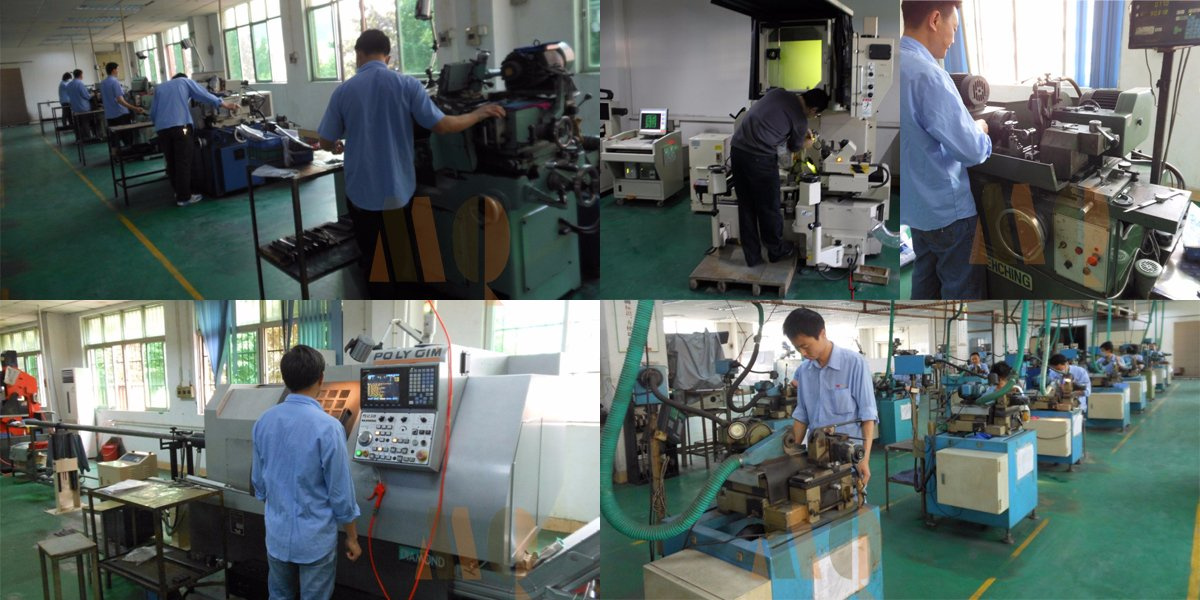

Production Equipment

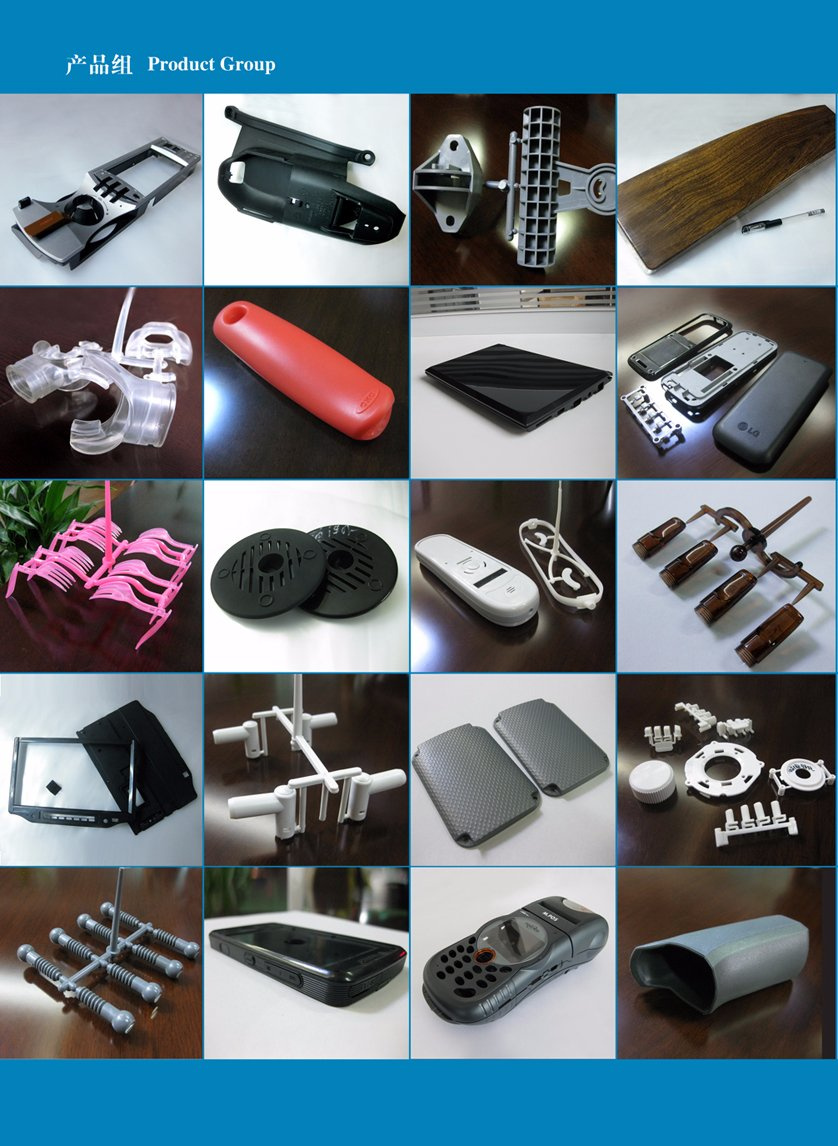

Application Range :| Household Appliance | TV, Air Conditioner, Washing machine, Microwave oven, Dust Collector,
Coffee maker, Hair drier etc. |
| Telecommunication | Telephone, Fax machine, Printer, Mobile, Router, Interphone etc. |
| Medical equipment | Diagnosis, Medical Trolley, Blood pressure monitor, sleep Apnea etc |
| Automotive | Accessory of bicycle, wheel, Motor, car etc. |
| Toys | Toys car, car model, toys helicopters, boats model, airplane model etc |
COMPANY INFORMATIONJunYi Metal & Plastic Mold Co., Limited
About our Company: was established in 2001. We have 2 shops, 1 for plastic mold making & plastic injection molding production. There are 5CNC machines, 8 EDM machines and 10 drilling machines for mold making. 15 sets injection molding machines from 60T to 500T. for short-run production, include metal & plastic prototyping by CNC machining, rapid tooling, such as aluminum soft tool and small quantity aluminum die casting + CNC secondary operation, silicone mold vacuum casting for plastic. There are 15sets CNC machines and 3 sets vacuum casting machines.
Our company has strong technical force, advanced technical equipment, complete testing means and scientific quality management.
Design Definition Requirements1.Mold bbasic info
,sample;
2.Plastic components function;
3.2D drawing(weight) or 3D drawing;
4.Quantity or technical requirements;
5.Annuallyforcast or MFQ;
6.Surface treatment requirements, sample is better;
7.other key point.
How to place an order?
1. Contact our sales staff to confirm the design and price.
2. Reach an agreement, then will send PI and please arrange payment.
3. Arrange the mold and samples to confirm the quality, mold will take about 25-40 days.
4. Production arranged after sample approved.
5. Take photos for the customer and arrange the balance payment.
7. Arrange shipment, by UPS, or by air, by sea, will depend on the real situation.
8. Subsequent service.
Welcome to contact us for any inquiry:
JunYi Metal & Plastic Mold Co., Limited is located in Dongguan, Guangdong Province, China. We offer one stop solution in design, rapid prototyping by CNC machining & vacuum casting, rapid tooling, mold making, plastic injection molding, die casting, sheet metal, as well as mechanical assembly services to take your initial concept to commercialization.
We have 2 shops, 1 for plastic mold making & plastic injection molding production. There are 5CNC machines, 8 EDM machines and 10 drilling machines for mold making. 15 sets injection molding machines from 60T to 500T.
Another shop for shot run production; Include metal & plastic prototyping by CNC machining, rapid tooling, such as aluminum soft tool and small quantity aluminum die casting + CNC secondary operation, silicone mold vacuum casting for plastic. There are 15sets CNC machines and 3 sets vacuum casting machines.
JunYi also provide outsourcing service of sheet metal, sand casting, rubber silicone compression molding with super service and competitive price.
Please feel free to send us 2&3D files for quote. Have a great day to you!
