Prod Model:	STX-1202
Y:	I

Product Description

Model:

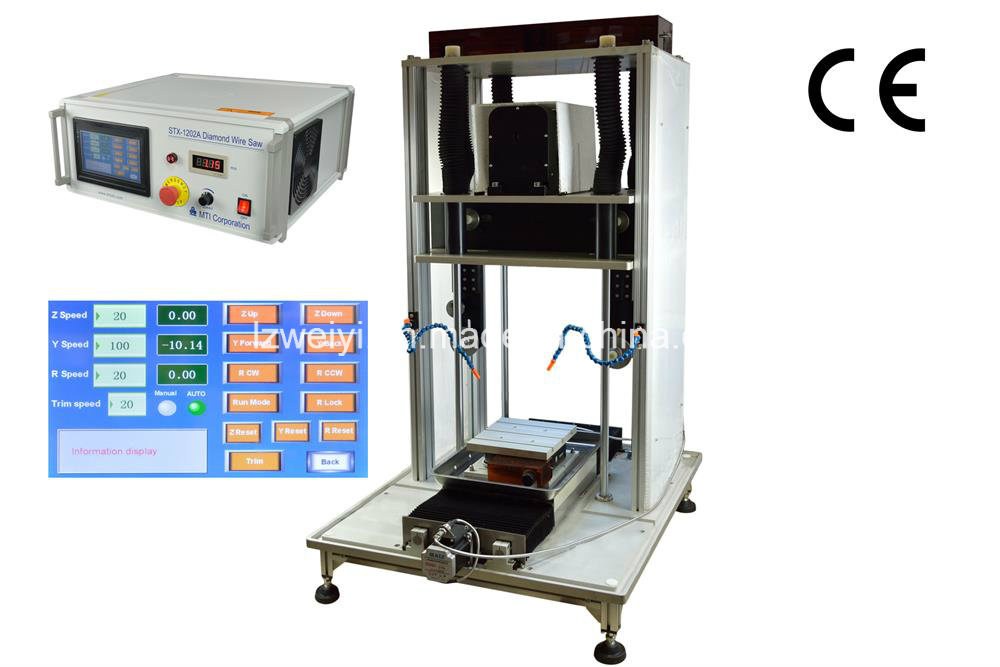

STX-1202 Automatic Diamond Wire Saw

Brief
Introduction:

STX-1202 Automatic Diamond Wire Saw is a CE certified diamond cutting saw, researching and manufacturing support of the national innovation fund.It is used for cutting different hardness of fragile crystal, ceramic, glass, rock sample, meteoritic sample, fire proof material etc.Max cutting dimension is 12 inches.

Main
Feature:

1.Cutting different hardness of crystal, ceramic, glass, fire proof material, rock sample,especially for processing fragile and easy cleavage crystal.
2.Sample holder can program control, can adjust to 360°.
3.Main motor drives the diamond wire, cutting sample under the working operating platform, can keep sample steadily.
4.Design all kinds of frock fixtures for the customer, suitable for different sample size.
5.Cutting by the diamond wire, easier to operate, better processing quality.
6.Heavy duty Aluminum alloy structure, beautiful and steady.
7.Built in pneumatic valves, make tensile force steady and reliable.
8.PLC program control, easy to operate.
9.Big touch screen, beautiful vision, good touch.

Technical
Parameter:

1.30-64m domestic and imported 0.25-0.45 diameter mini diamond wire back and forth cutting, wire length adjustable.
2.Stepper motor feed automatic cut, cutting speed is adjustable and depends on different materials, can improve the cutting quality, increase acceptable life of mini diamond wire.
3.Built in stepper motor drive 360°sample holder, convenient to adjust cutting horizontal direction.
4.Cut different hardness of crystal, ceramic, glass, rock material, especially for cutting high valuable fragile crystal, Such as ZnO, BTO, YAG, BBO etc.The success rate can reach as much as 99%.
5.Max.Cutting dimension:300 X 300mm
6.X, Y, Z-axis accuracy:0.01mm
7.Y-axis and Z-axis max travel distance:≤300mm
8.Φ200 horizontal rotary operating platform angle:0.6Reduplicate position accuracy:1.92

Specification:

Size:1072X 892X 1623mm Weight:150kg

Standard
Accessories:

1	Diamond wire	2PCS
2	Tension wheel	2PCS
3	Leading wheel	2PCS
4	Water pump	1PC
5	Wax	4PCS
6	Resin ceramic block	2PCS

Optional
Accessories :

1.Diamond wire
2.Other assistant material

Standard
Package:

1.Major part:Wooden box.
2.Others:Carton
