Home Toolbuy Products Premium Automatic Stone Bridge Saw with 45 Angle Cut for Granite Marble Cutting and Fabricating (XZQQ625A)
Premium Automatic Stone Bridge Saw with 45 Angle Cut for Granite Marble Cutting and Fabricating (XZQQ625A)
| Price: |
US $ 26000-27000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
XZQQ625A |
| Dimention(L*W*H): |
6*5*2.6m |
| Max. Length Of Cutting (Table Size): |
3200*2000mm |
| Max. Cut Thick: |
170mm |
| Table Tilting: |
0-85 Degree Easy for Materials Loading |
| Table Rotation: |
0-360 Degree Stopped Any Postion |
| Blade Tilting: |
0-45 Degree for Miter Cut |
| Spindle Motor: |
15kw 20HP |
| Repeat Cutting: |
99 Repeat Cutting by Program |
| Type: |
Laser Cutting Machine |
| Usage: |
Quartz Sandstone |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
Product Description
Premium Automatic Stone Bridge Saw with 45 Angle Cut for Granite Marble Cutting and Fabricating (XZQQ625A)

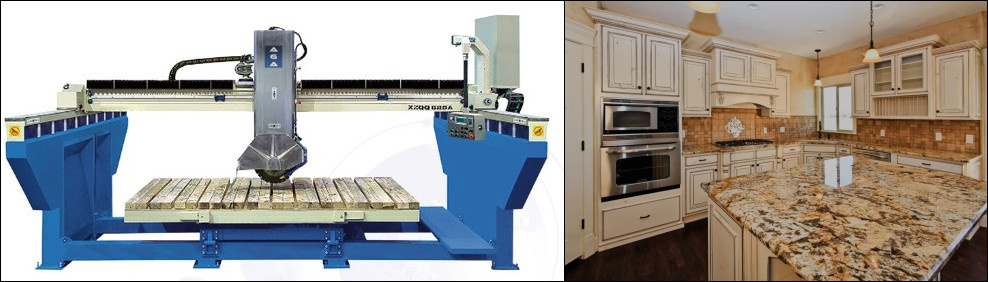

Bridge saw XZQQ625A is monoblock including very strong steel frame, it comes with full options, such as pendant control panel, touch screen, wireless remote, table rotation and tilting, blade miter cut, hydraulic pump, etc. It is made with USA standard, with motor power 20HP for cutting grantie, marble, quartz and engineered stones. Most preferable for cutting and fabricating slabs, counter tops, bench tops, vanity tops, etc.TECHNICAL PARAMETERS:*Diameter of cutting piece: 400-625mm 16" - 25"
*Maximum cutting length: 3200mm 126"
*Maximum cutting width: 2000mm 78.7"
*Maximum cutting thick: 170mm 6.7"
*Blade tilting, angle for cutting 0-45 degree
*Table tilting 0-85 degree for easy load of materials
*Table rotation 0-360 degree stopped any position
*Spindle moter 15Kw 20HP
*Machine overal size( L×W×H ) 6×5×3 m 20'×16'×9.9'
*Total weight 7200Kg 16,000Lbs

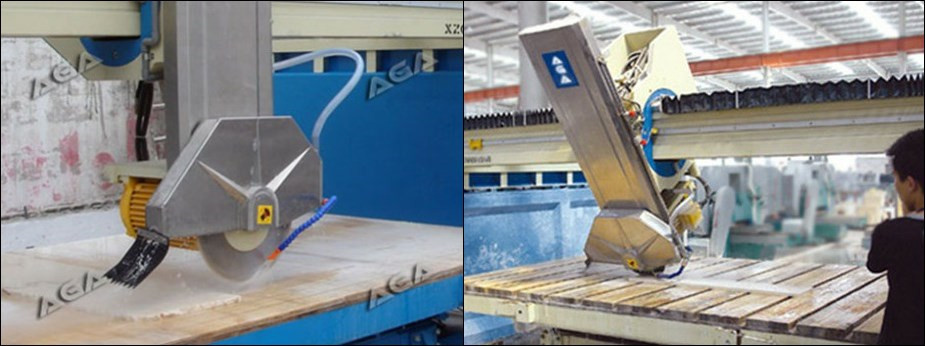

Blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts.

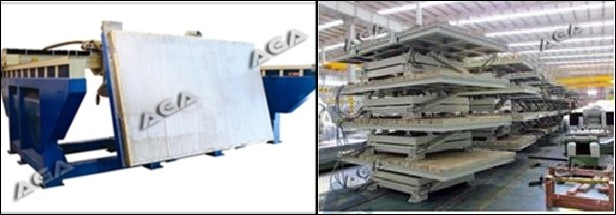

Motorized table can be locked in any position 0 - 360 degree automatically and it also tilts 0 - 85 degree Hydraulic for easy load of material.

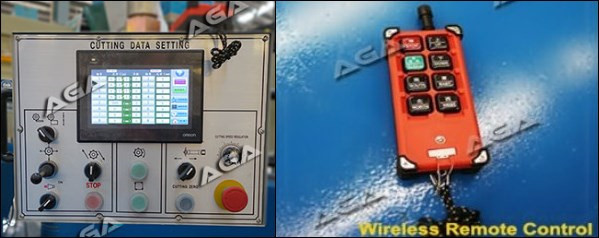

It is made with PLC control, electric system is simple and easy to operate. All functions are operated on the color control panel. Wireless remote provides easy control of the saw, making its users very friendly.

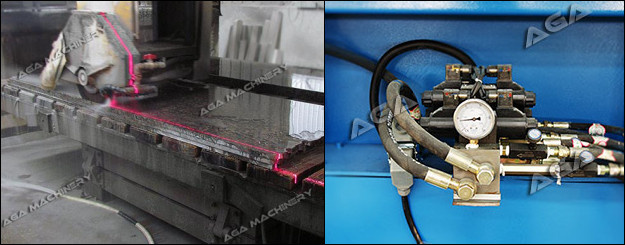

The bridge saw is a laser cutting machine with a laser guide and sensors, which gives precision cuts every time and makes precise cut in +/-0.2mm. Automatic water control saving every drop.

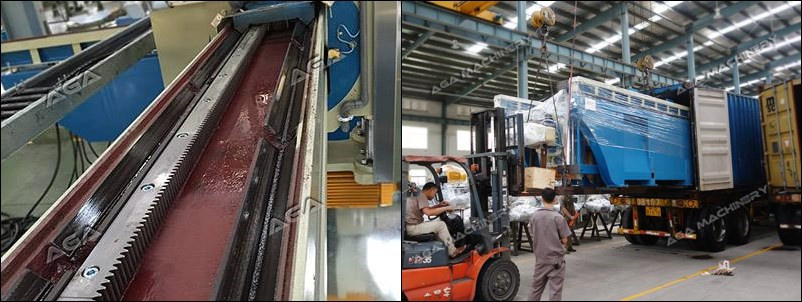

Movements of bridge rails are in covered oil bath ensuring smooth movements and reduced wear.
Full machine can be loaded 20 GP container. Easy to load, transport and install thanks to its monoblcok structural frame.FAQs:
The first payment of deposit for order, we start to produce the machine→the second payment, we start the container load and effect the shipment→ the last payment of balance, we send you the scan copy of B/L by email.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 days ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
AGA Machinery:AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
More details can be checked on
http://www.marblegranitemachine.com/en.html
Contact Information:
Contact: Miss Kay
Tell:+8618259461172
Online comminication: Whats*app/We*chat:+8618259461172
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in USA, Canada, Europe, MID east, Egypt, India, etc.
AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. Our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
