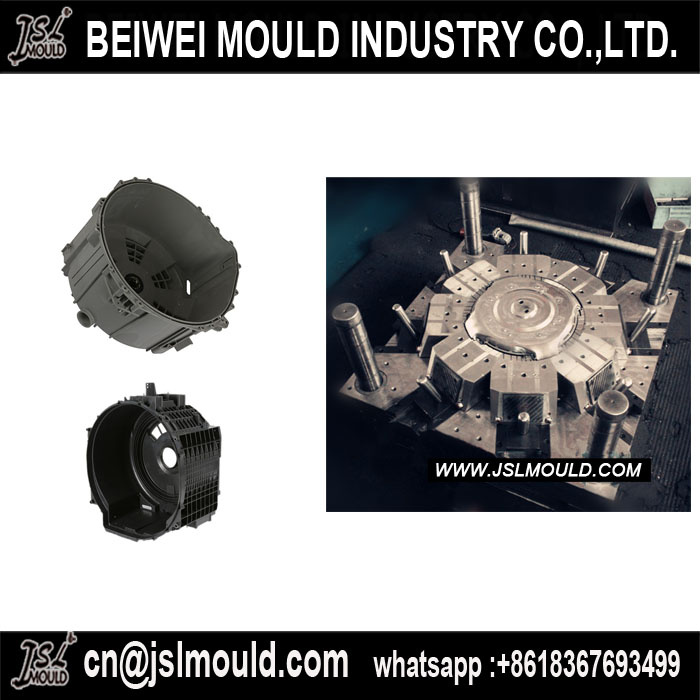

Premium Custom Plastic Washing Machine Drum Mould

Premium Custom Plastic Washing Machine Drum Mould
Price: US $ 20000-30000/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: JSL-T171225-4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: According to Customers Requirement
Mould Quality Control: Professional QC
Mould Runner System: Hot or Cold Runner System
Mould Standard: Dme
Mould Design Software: Ug, Proe, Solidworks CAD, Ect
Mould Cooling System: by Experienced Designer
Mould Operating Mode: Automatically by CNC
Mould Base: S50c
Heat Treatment: Nitriding, etc
Shaping Mode: Injection Mould
Process Combination Type: Single-Process Mode
Application: Home Use
Installation: Fixed

Product Description

Customized washing machine mould manufacturer, specified supplier. More than 100 washing machine mold be exported to more than 20 countries per year

JSL Mould Quality Control
For the Q/C of mould, there are 3 steps:

1. Mould Material Q/C

- Mould Steel Checking(Hardness, flaw detection)

- Mould Standard Spare Parts Checking(hardness, size, flaw checking)

2. Mould Making Process Q/C

- design checking (part design, mould design, mould engineering drawing)

- checking each part of mould's size after machining, according to 2D drawing

- mould testing(check mould running condition)

3. Check with customer's requirement again before mould shipping.








Washing machine material:  ABS

Washing machine mold analysis:  Moldflow to check injection point

Washing machine mold design:  3D format in STP, X_T or IGS, 2D design in dwg, or pdf

Washing machine mold steel:  cavity 718H,P20H, 2738, 1.2312; core718H, 2738, NAK80.

Washing machine mold cavity: 1 cavity or more

Washing machine mold standard parts:  HASCO, DME, PUNCH,JINGHONG.

Washing machine mold hot runner:  YUDO, INCOE, Synventive, DME, MOLD-MASTERS,

Washing machine mold gate:  edge gate or point gate

Steel treatment:  Vacuum quenching, or nitride

Washing machine mold size: 650*620*450mm

Injection machine: 500T

Cycle time: 40S

Works schedule:  5days design-3days prepare-45days machining-5days assembly, then test.

Mold life guarantee:  500000shots or one year.

Packing for delivery:  strong wooden case or pallet.

Shipment:  by sea after customer approval the final samples.

Process following:  weekly process report with pictures or videos

Test inspection:  checking list report

Payment terms:  50% down payment, 50% balance before shipment

Service:  30% spare parts for mold, and 1 year guarantee.



Process

Mold description:

High quality washing machine mould

Purchase order:

Customer to confirm order

Invoice:

Proforma invoice

Payment:

50% down payment of the full PI

Parts design

Modifications for better make mold

Mold design:

For good appearance of the parts and mold run well

Structure:

2 plates mold

Inserts:

Where need for easy maintain

Runner:

cold runner

Gate:

sub gate

Shrinkage:

shrinkage abs 0.5%

Slider:

Drive by cylinder

Ejection:

By ejectors and lifters

Confirmation:

Mold design

Order steel:

High quality mold steel will be used

Rough machining

Before fine machine

Heat treatment

nitride

Hardness:

to 38-42HRC

Fine machine:

High speed CNC

Fine machine:

Engraving machining

Fine machine

EDM

Assembly:

Adjust for final assembly

Surface finish:

polishing

Test:

Mold test with pictures and videos

Polish:

Good polish

Samples:

5pcs for checking

Improve:

Improvement after checking samples

Mold cooling line:

support 24hous production

Suitable for:

400T Injection machine

Balance:

50% deposit after approval final samples

Delivery

1-2weeks after confirm final samples

Transport

By sea from Ningbo Port China



Why Us?

1. We make more than 100 washing machine moulds each year and most for foreign customers. So we have most experience and can make good quality control.

2. We have special professional designers and mold makers for washing machine mold after making so many washing machine molds.

3. Many customers cooperate with us more than 7years, some are 10years, and their loyalty shows our honest on mold.

4. Quality is the life of our company. We focus on quality and time control. Every mould machining process will be weekly informed.

5. Trust was built on you know better of us. Believe yourself and choose us won't let you down. Let's try and know you better. You need good washing machine mould supplier, and what we need is a chance to show you who we are and what we can do.

Beiwei Mould Industry Co., Ltd. is the leading plastic moulds manufacturer in China, Based on the precision tooling, high technology and top mentality mould design. Jsl mould has established the main market in Spain, Brazil, Sweden, Australia, Ireland, U. S. A and etc.

Our products covers Plastic injection molding, Plastic blow molding, BMC/SMC/DMC/GMT glass fiber mold, Plastic injection molded products and Metallic punch products.

We use PRO-E, Solidworks, U. G., and Auto-CAD for moulds and products design, with very strong mould design and drawing reading ability. This ensures the good technical communications with clients, which can avoid any mistake occur.

We have utilized modern equipment such as CNC machining center, EDM machine and EDM wire cutting machine. Modern CAD/CAM/CAE systems, such as those using UG, ProE, Solidworks and Cimatron, are also in place to assure the quality of our molds and molded products.

Our mission is to provide our customers high quality products and services. We aim to exceed our customers' expectations in terms of pricing, quality and on-time delivery.
