Home Toolbuy Products Premium Marble/Granite/Quartz Stone Bridge Saw Cutting Slabs&Tiles&Counter Tops (HQ400/600/700)
Premium Marble/Granite/Quartz Stone Bridge Saw Cutting Slabs&Tiles&Counter Tops (HQ400/600/700)
| Price: |
US $ 15000-21000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
HQ400/600/700 |
| Blade Tilting: |
0-45 Degree for Miter Cut |
| Table Rotation (Hq400-Hq600): |
0-90 Degree (0-360 Degree Optional) |
| Table Rotaion (Hq700): |
0-360 Degree Stop at Any Position |
| Table Tilting: |
0-85 Degree Easy for Materials Loading |
| Max Length Of Cutting (Table Size): |
3200*2000mm |
| Max Cut Thick: |
110mm/180mm/230mm |
| Power Of Spindle Motor: |
15kw/15kw/18.5kw |
| Type: |
Laser Cutting Machine |
| Usage: |
Quartz Sandstone Other Engineered Stones |
| Application: |
Stone Industry |
| Source Voltage: |
220V |
| Automation: |
Automatic |
Product Description
Automatic Stone Bridge Saw Cutting Machine Cutting Slabs&Tiles&Work TopsHQ400-HQ600 working video on http://youtu.be/9HcXYJilfO0
HQ700 working video on http://youtu.be/MciWoGjgob0

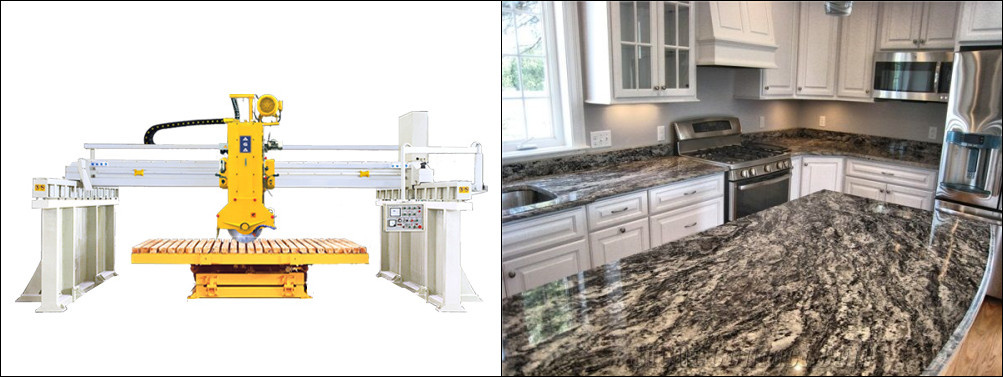

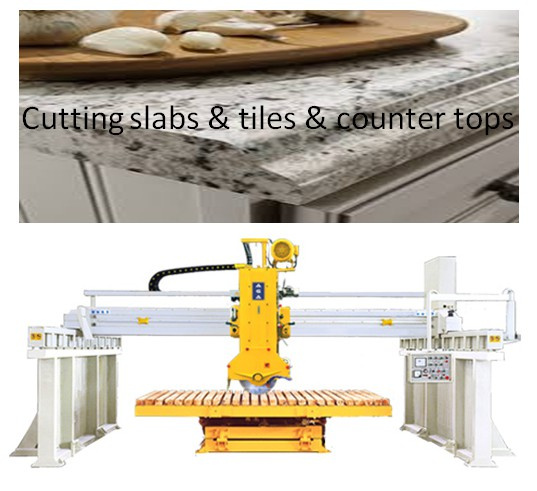

Automatic bridge saw machine to cut slab and tile of granite, marble, sandstone and other stone materials. It is also preferable for cutting and fabricating counter tops, vanity tops, kitchen tops. Machine specs:| Model | HQ700 | HQ600 | HQ400 |
| Blade tilting 45° (Angle Cut Mitered) | Yes | N/A | N/A |
| Table Rotation 90° | Yes | Yes | Yes |
Table Rotation 0-360°
(stopping at each 45°) | Yes | Optional | Optional |
| Table tilting 0 - 85° | Yes | Yes | Yes |
| Power Of Spindle Motor | 18.5kw / 25 HP | 18.5kw / 25 HP | 15kw / 20 HP |
| Max Length of Cutting: (Table Size) | 3200 x 2000mm / 126"x78" | 3200 x 2000mm / 126"x78" | 3200 x 2000mm / 126"x78" |
| Max Thick of Cutting: | 230 mm 9" | 180 mm 7" | 110 mm 4" |
| Steel Walls Included | Yes | Optional | Optional |

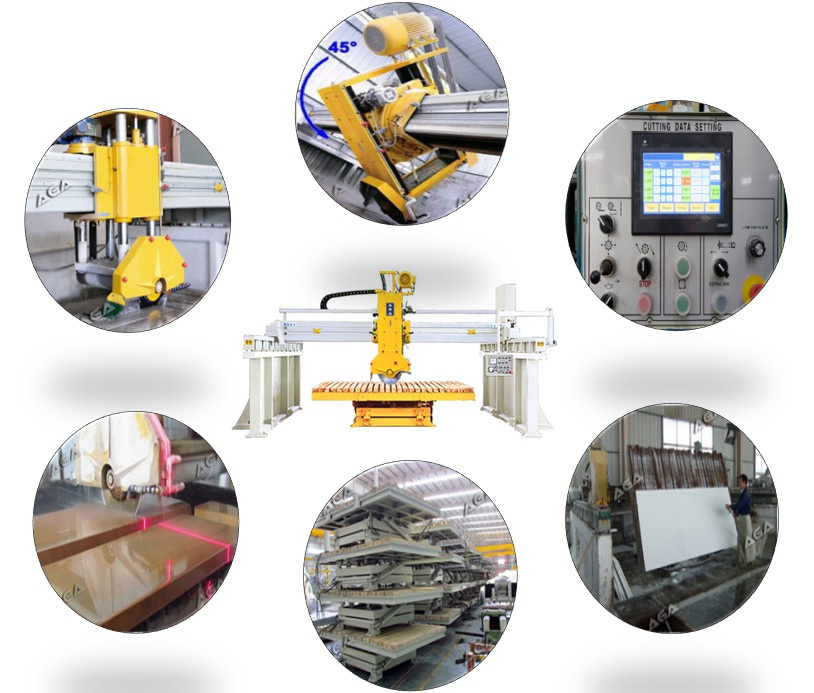

Bridge saw functions:
1) Blade:The blade goes left and right, up and down, the bridge beam moves forward and backward. It moves flexible movements in X, Y, Z axis by screw. Blade tilt 45 degree for mitered cut is avaliable for model HQ700. 2) Table tilting and rotation:The bridge saw main structures are made with very strong cast iron. Table is able to tilt up to 85 degree to load the big slabs easily and it also rotates 0-90 degree or 0-360 degree to change the cutting position.3) PLC system and color touch screen:Our bridge saw is made with PLC standard, the electric system is simple and easy to operate. Color touch screen provides live datas and all functions are operated on the control panel, making its users very friendly.
4) Laser guid and four pistion head:

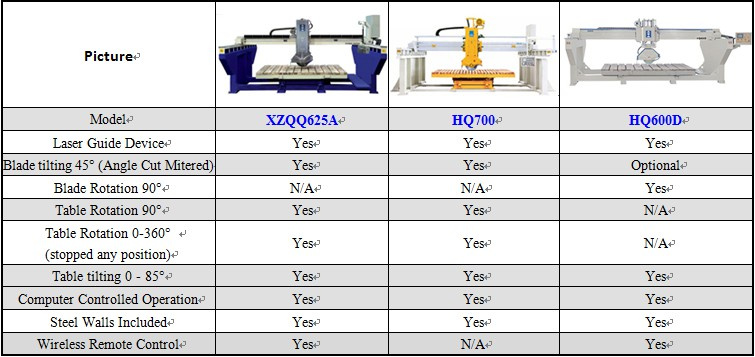

Laser guide shows the cutting position that makes the cutting easier and make precise cut+/-0.2 mm. Besides, four pistions head is optional.Related products with blade tilting 45° for miter cuts:
FAQ:
1) Payment:
The first payment of deposit for order, we start to produce the machine→the second payment, we start the container load and effect the shipment→ the last payment of balance, we send you the scan copy of B/L by email.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 days ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.AGA Machinery:

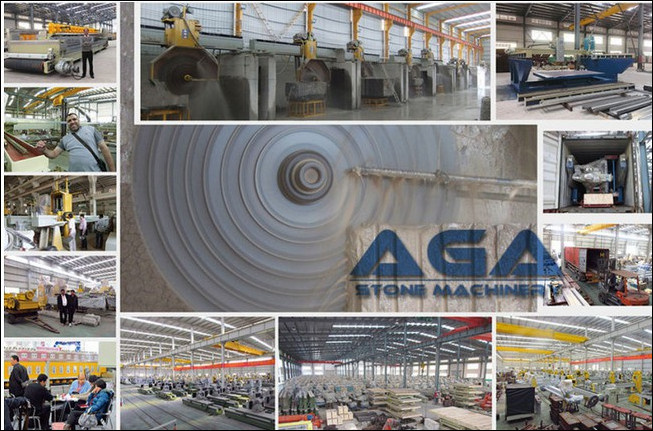

AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.More details can be checked on http://www.marblegranitemachine.com/en.html
