| Prod Model: |
15DN0017 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
27-250mm |
| Seg.Thickness: |
3.8/4.0/4.5mm |
| Blade Welding Technology: |
Laser/Silver Welding |
| Seg.Height: |
8/10mm |
| Thread: |
5/8"-11, 11/4"-7 |
| Connection: |
11/4-7unc, 1/2bsp,5/8-11'',M14, |
| Application: |
for Granite,Marble,Concrete and Construcion |
| Feature: |
Sharpness,Smooth Cutting |
| Use: |
Granite,Marble,Concrete and Construcion |
Product Description
Product Description
Type: Laser welded diamond core drill bits for wet drilling reinforced concrete, 1-1/4"UNC connection thread concrete drilling diamond core bits, professional China diamond core drill bits manufacturer and supplier, laser welded wet drilling diamond core drill bits, diamond core drill bits for concrete brick wall.
Features: Drill aggressively with long working life, somooth drill with good balance, widely used in professional construction projects, high precision steel core tube, working length 450mm.
Applications: Concrete, reinforced concrete, brick, block, general building materials.
Machinery: Hydraulic Drilling machine, electric drilling machine, electric portable drill, hand held core drill, stand core drill.
Product Information
Item Number:15DN0101 |
Description:*Silver brazed diamond core drill for wet cutting building materials such as concrete, bricks, granite, marble, stone,cements, etc. High professional quality to fast cut reaching 12-15meters.
*Max. cutting depth 450mm. |
| Diameter (D) | Max Coring Depth(C) | Overall Length(L) | Connecting | Item Number |
| Metric(mm) | Inches | mm | mm |
| 51 | 2" | 450 | 500 | 1-1/4"UNS | 15DN0101001 |
| 58 | 2-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101002 |
| 63 | 2-1/2" | 450 | 500 | 1-1/4"UNS | 15DN0101003 |
| 70 | 2-3/4" | 450 | 500 | 1-1/4"UNS | 15DN0101004 |
| 78 | 3" | 450 | 500 | 1-1/4"UNS | 15DN0101005 |
| 83 | 3-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101006 |
| 89 | 3-1/2" | 450 | 500 | 1-1/4"UNS | 15DN0101007 |
| 102 | 4" | 450 | 500 | 1-1/4"UNS | 15DN0101008 |
| 112 | 4-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101009 |
| 121 | 4-3/4" | 450 | 500 | 1-1/4"UNS | 15DN0101010 |
| 127 | 5" | 450 | 500 | 1-1/4"UNS | 15DN0101011 |
| 132 | 5-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101012 |
| 140 | 5-1/2" | 450 | 500 | 1-1/4"UNS | 15DN0101013 |
| 152 | 6" | 450 | 500 | 1-1/4"UNS | 15DN0101014 |
| 159 | 6-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101015 |
| 165 | 6-1/2" | 450 | 500 | 1-1/4"UNS | 15DN0101016 |
| 182 | 7" | 450 | 500 | 1-1/4"UNS | 15DN0101017 |
| 205 | 8" | 450 | 500 | 1-1/4"UNS | 15DN0101018 |
| 230 | 9" | 450 | 500 | 1-1/4"UNS | 15DN0101019 |
| 255 | 10" | 450 | 500 | 1-1/4"UNS | 15DN0101020 |
| 300 | 12" | 450 | 500 | 1-1/4"UNS | 15DN0101021 |

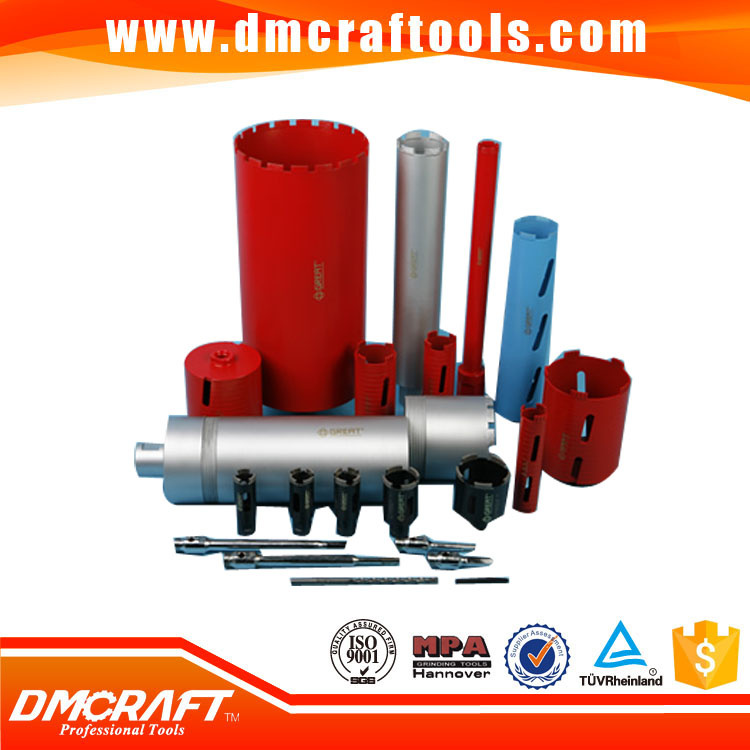

Product Picture
Packing&shipping
Inner paper box or blister card and outer carton box, white box or pallet
Shipping
1. TNT/FedEx/DHL/UPS for samples or under 45KG weight goods , Door to Door.
2. By Air or by Sea for batch goods,from airport(seaport) to airport(seaport).
3. Customers specifying freight forwarders or not.
4. Production Time: 3- 7days for samples; 2-3.5 weeks for batch goods
Our company
1) We're a direct manufacturer and 100% export to worldwide(USA, Isrel, Jordan, Iran, Thailand,Duabai, South Africa, Kenya, Egypt, Australia, UK, Spain, Brazil, etc)
2) We have around 15 years producing experience.
3) Our core drill product:Silver brazed diamond core drill,500mm Length Laser Welded Diamond Core Drill,Sintered Diamond Drill,Diamond Core bits-Crown etc
4) Above 95% customers will place a formal order after testing the samples.
More information about our products, welcome to visit :http://en.dmcraftools.com/
DANYANG DAMING TOOLS Co., Ltd. is one of the professional manufacturer of drill bits in China,
Now we can provide the following cutting tools:
1. HSS straight shank twist drills:
(DIN338, DIN340, DIN1897, DIN345; ASME B. 94.11M: Jobber length, Taper length, Screw Machine Length, Aircraft Ectension, etc);
2. HSS taper shank drills: ( Rolled, Milled);
3. Masonry drills (Chrome plated, Nickle Plated, Zinc plated);
4. SDS Hammer drills;
5. Wood working series: (Wood working drills, Wood Auger bits);
6. Various kind of drill sets in many different types;
7. TCT saw blades
8. Diamond saw blades
9. HSS Hole Saws;
10. HSS Tapes;
11. All kinds of drill sets.
Therefore, our products are well accepted by many customers from all over the world, mainly in North America, Asia, Europe, MID East, South America and other countries and regions.
For a completive quotation or any further information, please don't hesitate to contact us at any way. Our sales staff will be pleased to assist you with our best.
