Press Machine/ Press/Power Press Stroke Adjustable

Press Machine/ Press/Power Press Stroke Adjustable
Price: US $ 6000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: Power Press
Nominal Force: 125kn
Nominal Force Stroke: 6mm
Slide Stroke: 160mm
Max. Shut Height: 350mm
Slide Adjustment: 80mm
Bed Dimension: 680X1150
Bottom Side Of Slide: 540X680
Type: High-Speed Punching Machine
Controlling Mode: Artificial
Automatic Grade: Automatic
Power Source: Mechanical Drive
Precision: High Precision

Product Description

Press Machine/ Press/Power Press Stroke Adjustable

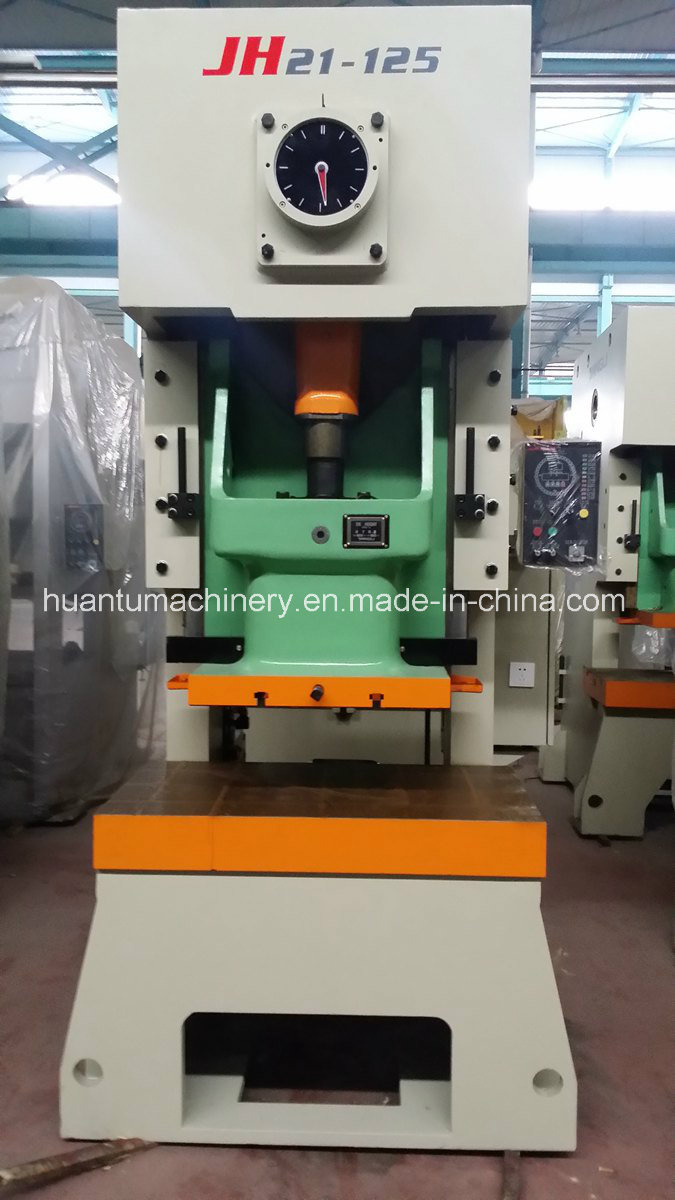

Model JH21-125

Open Back Press with Fixed Bed, a kind of thin sheet metal processing universal press imported advanced technology of AIDA company in Japan, which is suitable for shearing, punching, blanking, bending and shallow drawing.




II. Main Technical Specification

Technical
specification           Model


Description

JH21-125
STANDARD
Nominal forceKN125
Nominal force strokemm6
Slide strokemm160
SPM  Min-150
Max. shut heightmm350
Slide adjustmentmm80
Bed dimension(FB×LR)mm680×1150
Bottom side of Slide
(FB×LR)
mm540×680
Bolster thickness mm140
Main motor powerkW11




IIIBrief introduction of basic configuration

 DescriptionModelNoteManufacture
Mechanical
part
FrameBasic partWelding with whole steel plate; ageing treatment when vibration; whole anneal treatmentHUANTU
BolsterBasic partCast HT200,
anneal treatment
HUANTU
CrankBasic part45 forged steelwork,surface quenching treatmentHUANTU
FlywheelBasic partCast HT200,
anneal treatment
HUANTU
Dry clutchPartOMPI, Italy brandHUANTU
SlideBasic partCast HT200,
anneal treatment
HUANTU
Worm wheelPartCopper castingZQSn5-5-5HUANTU
WormPart45 steel,surface nitrogen treatmentHUANTU
Tie-rodBasic partCast QT500-7,normalizing treatmentHUANTU
Ball screwBasic partForged steelwork 45,surface nitrogen treatment HUANTU
ACBPartThe inner round of cylinder adopts lapping tech.Yangzhou, Jiangsu
Electric
part
Main motorY seriesWannan motor factoryAnhui
Disc motorYPE seriesBeijing Fute disc motor co., ltdBeijing
PLCCPM2AE-60CDROMRON productsShanghai
AC contactor Schneider is sole proprietorship of
TE company of France,which products get CE certification
Shanghai

Button;
Indicating lamp
 Schneider is sole proprietorship of
TE company of France,which products get CE certification
Shanghai
Cam controllerYLK1-08J8 proximity switches are installed in controller, which have reliable performance.Yangzhou, Jiangsu

Seal part ACB oil sealEscort, Taiwanseal part from Escort, TaiwanTaiwan
Hydraulic overloadHigh pressure oil sealDichtomatik, GermanyGermany
Other seal parts High quality made in China
Pneumatic
component
Dual valveMVS seriesTACO, Japan,
which has CE certification
Japan
Pneumatic control 2-unit Rc1/2AirTac, TaiwanNingbo
Oil pipeline
component
Electric grease
lubrication system
Standard configuration Sino-Japanese joint venture Yongjia Lube products, which pieces oil distributor is combined with many pieces. Installed test switch, which has block alarm. Zhejiang


When the new century has come on the horizon, Shanghai Huantu Technical Industry Co., Ltd has become the leader of the plate processing machinery inside the country. We occupy more than 20000 square meters warehouse and dedicated to the research and development, production and sales of medium and high-rank plate processing machine including hydraulic shearing, bending, rolling machine and Ironworker, which are widely used in airspace, shipbuilding, automobiles, military, electrical appliances, metal works, coinage and various other fields.

We have been exported to dozens of countries and regions in Europe, America and Southeast Asia. Our company has been taking the lead for its aggregate annual sales revenues, and has been listed among" the national key new & hi-tech enterprises". In the process of prospecting its modern corporate system, We have attached importance on and given full play to the large-scale production, specialization in its development, standardization of its management, network construction for its sales and distribution, full and complete product lines in R&D, independent IPR, quality of services and knowledge increase of the employees; And it has gained advantages in science and technologies, quality and market share through state-of-the-art management, technical innovation, equipment upgrade and its sophisticated strategy on product lines, quality and rank.

National industry is the soul of a nation‘ S economy; Machinery industry is the parent of all other industries. As a rising star in China‘ S national machinery industry, Shanghai Huantu Technical Industry Co., Ltd is aiming at the world, marching towards the goal of" building up a word-known brand name and laying the basic for its development of hundred years
