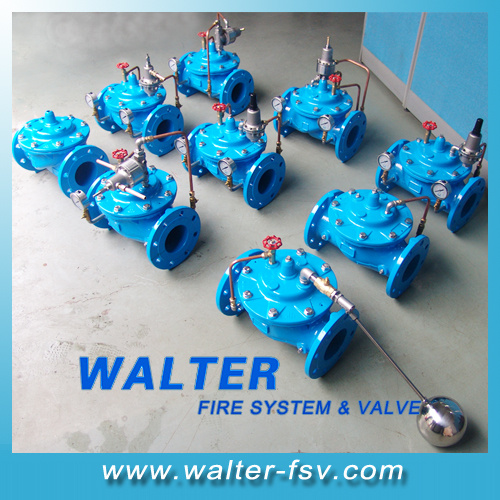

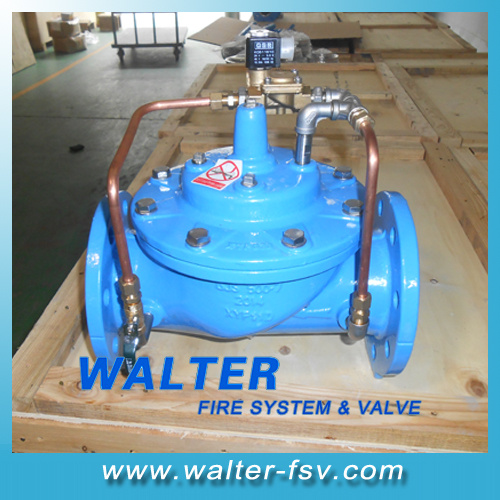

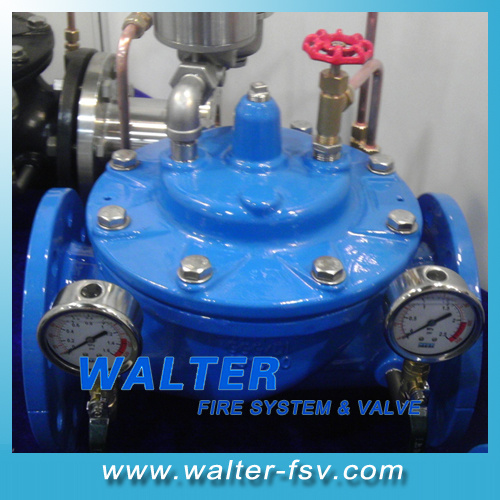

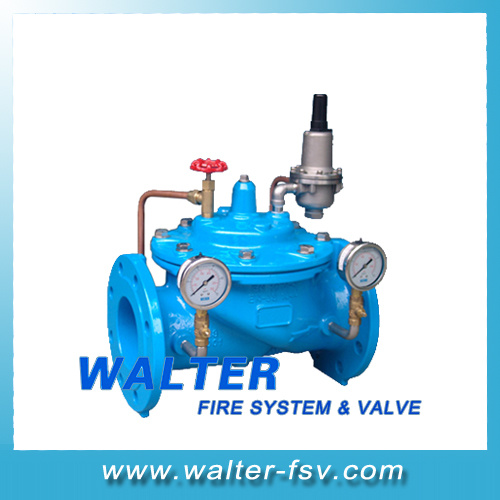

Pressure Reducing Valve for Water System
| Price: |
US $ 129-150/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
200X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Pressure Reducing Valve |
| Body: |
Ductile Iron, Stainless Steel |
| Trim: |
Stainless Steel |
| Diaphgram: |
Nylon+EPDM/Viton |
| Seat: |
Ss / Bronze |
| Seal Rings: |
NBR/EPDM/Viton |
| Piolt: |
Brass or Stainless Steel |
| Pipes/Tubes: |
Copper or Stainless Steel |
| Pressure Rate: |
Pn10/16/25 |
| Coating: |
Epoxy Resin Coated to 300 Microns Inside & Outside |
Product Description
Our Pressure Reduing Valve are adopt the lastest technologies , with fully bore design, lowest head lose when fully open.
The PRESSURE REDUCING VALVE is design with anti-cavitation for application where there is high potential for damage from Cavitation , which provide optimum internal pressure control through a unique anti-cavitation trim design.
1. Body/Bonnet: GGG50 or Stainless Steel 2. Spring: SS304
3. Stem: SS / Bronze 4. Disc Retainer: DI/SS/Bronze
5. Seat: SS/Brass 6. Seal Rings: NBR/EPDM/Viton
7. Pilot: Stainless Steel 8. Pipe or Tubes: Coppe or Stainless Steel
9. Working Pressure: PN10/16/25 10. Connection: Flanged acc. To EN1092.2, ISO 7005-2, ANSI/JIS/ AS2129
11. Epoxy Resin Coated to 300 microns inside & outside
12. Anti-cavitation Solution
Our Pressure Reducing Valve Size from DN50 to DN1000; Also can do OEM or ODM for Pressure Reducing Valve, Float Control Valve, Pressure Relief Valve, Solenoid Control Valve.
Welcome to contact us for more details.
Company Profile:
Suzhou Walter Flow Control Equipment Co., Ltd. Are a professional company specializing in fluid & firefighting equipment.
We do, and always will, fashion our long time business relationships from advanced technology, excellent quality and good service.
Walter Flow Control supplies products with FM, UL, CE and all other relevant certificates for use in Water Reticulation and Treatment Systems, Fire-fighting Projects, High Rise Buildings, the Oil, Gas and Chemical Industries etc.
Company Products:
Valves: Gate Valve, Butterfly Valve, Check Valve, Automatic Hydraulic Control Valve, Air Release Valve, Globe Valve, Ball Valve, Strainer, Pipeline products, etc.
Firefighting: Fire Sprinklers, Wet Alarm Check Valve, Deluge Valve, Water Flow Detector, Foam Extinguisher System, Gas Extinguisher System and Fire Hydrant System, Fire Hose, Fire Hose Reel, Fire Monitor, etc.
Standard & Certificates:
Walter products are design acc. To DIN, BS, ANSI, AWWA, EN, ISO, AS, API standard and relevant products can be provided with FM approval, UL listed, CE certificates.
