PRO Audio 250 M2 Auditorium/Church/Pray Hall Solution Professional Speaker

Name: PRO Audio 250 M2 Auditorium/Church/Pray Hall Solution Professional Speaker
Brand: tool-buy.com
SKU: 814082475
Availability: InStock
Rating: 4.3 (134 reviews)

Price:	US $ 5602-5650/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Guangzhou Jusbe Electronic Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	XL-F10
Rated Power:	200W
Max Power:	400W
Sensitivity(1W/1m):	96dB/W(1m)
Frequency Response:	50Hz-20kHz
Max Spl:	125dB
Connector:	Speakon Nl4*1 Pin1+/2+POS. Pi
Resistance:	8ohms
N.W.:	18kg/Piece
Standard Coverage Angle:	90deg;(H) * 50deg;(W)
Material:	18mm Plywood
Noise:	<95dB
Hi-Fi:	Not Hi-Fi
Operation Mode:	Touch Control
Speaker System:	2.2 Channel
Speaker Material:	Wood
Application:	Home
Certification:	FCC
THD:	<0.005%
Monitor:	No

Product Description

Product Description:

Jusbe economic full set pro audio 250 m2 auditorium/church/pray hall solution

Products List:

NO	ITEM NAME/ MODEL NAME	Technical parameter	quantity
1	15 inch speaker XL-F15	1.Rated Power:350W 2.Max Input Power:700W 3.Impedance:8Ω 4.Frequency Response:45Hz-20KHz 5.System Type:15 inch, two channel, two unit, full-frequency 6.Tweeter Unit:44 core tweeter * 1 7.Woofer Unit:15 inch woofer* 1 8.Standard coverage angle:90°(H) * 50°(W) 9.Max SPL:129dB 10.Sensitivity(1W/1m):99dB/W(1m) 11.Connector:SPEAKON NL41 PIN1+/2+POS. PIN1-/2-NEG(plus/minus 4 cores plugs) 12.Suspension Hardware:8M8 suspension point, base 13.Material:18mm plywood 14.Surface treatment:environmental protection water based paint 15.Color:black 16.Product Size(mm/set):430450670 17.N.W.:30kg	1 pair
2	power amplifier CH800	1.8Ω Stereo Power:800W2 2.4Ω Stereo Power:1200W2 3.8Ω Bridging Power:2400W 4.4Ω Bridging Power:3200W 5.Channel Resolution(within 1 KHz):>60dB 6.Frequency Response:20Hz-20KHz/ ±1dB 7.THD:<0.025%@8Ω1KHz 8.Input Impedance:Balanced 20KΩ; Unbalanced 10KΩ 9.Amplifier Circuit:H class 10.Impedance Coefficient:200@1KHz/8Ω 11.Input Sensitivity:0.775V 12.Main Fuse:10A 13.Power Supply:220V/50Hz 14.Product Size(mm/set):34548388 15.N.W.:18k	1 pcs
3	12 inch speaker XL-F12	1.Rated Power:300W 2.Max Input Power:600W 3.Impedance:8Ω 4.Frequency Response:55Hz-19.7KHz 5.System Type:12 inch, two channel, two unit, full-frequency 6.Tweeter Unit:44 core tweeter * 1 7.Woofer Unit:12 inch woofer* 1 8.Standard coverage angle:90°(H) * 50°(W) 9.Max SPL:127dB 10.Sensitivity(1W/1m):98dB/W(1m) 11.Connector:SPEAKON NL41 PIN1+/2+POS. PIN1-/2-NEG(plus/minus 4 cores plugs) 12.Suspension Hardware:8M8 suspension point, base 13.Material:plywood 14.Surface treatment:environmental protection water based paint 15.Color:black 16.Product Size(mm/set):380365600 17.N.W.:24kg	1 pair
4	power amplifier CH600	1.8Ω Stereo Power:600W2 2.4Ω Stereo Power:900W2 3.8Ω Bridging Power:1800W 4.4Ω Bridging Power:2400W 5.Channel Resolution(within 1 KHz):>60dB 6.Frequency Response:20Hz-20KHz/ ±1dB 7.SNR:>100dB 8.Input Impedance:Balanced 20KΩ; Unbalanced 10KΩ 9.Amplifier Circuit:H class 10.Impedance Coefficient:200@1KHz/8Ω 11.Input Sensitivity:0.775V 12.Main Fuse:10A 13.Power Supply:220V/50Hz 14.Product Size(mm/set):34548388 15.N.W.:15kg	1 pcs
5	12 inch coacial speaker TZ12	1.Rated Power:400W 2.Max Input Power:16000W 3.Impedance:8Ω 4.Frequency Response:45Hz-19KHz 5.System Type:12 inch, coaxial 6.Tweeter Unit:44 core tweeter * 1 7.Woofer Unit:12 inch woofer* 1 8.Standard coverage angle:80° circular cone 9.Max SPL:122dB 10.Sensitivity(1W/1m):96dB/W(1m) 11.Connector:SPEAKON NL41 PIN1+/2+POS. PIN1-/2-NEG(plus/minus 4 cores plugs) 12.Suspension Hardware:20M8 suspension point, cork base 13.Material:plywood 14.Surface treatment:environmental protection water based paint 15.Color:champagne 16.Product Size(mm/set):410H520W410D 17.N.W. (kg/set):25	1 pair
6	power amplifier CH800	1.8Ω Stereo Power:800W2 2.4Ω Stereo Power:1200W2 3.8Ω Bridging Power:2400W 4.4Ω Bridging Power:3200W 5.Channel Resolution(within 1 KHz):>60dB 6.Frequency Response:20Hz-20KHz/ ±1dB 7.THD:<0.025%@8Ω1KHz 8.Input Impedance:Balanced 20KΩ; Unbalanced 10KΩ 9.Amplifier Circuit:H class 10.Impedance Coefficient:200@1KHz/8Ω 11.Input Sensitivity:0.775V 12.Main Fuse:10A 13.Power Supply:220V/50Hz 14.Product Size(mm/set):34548388 15.N.W.:18kg	1 pcs
7	Subwoofer S115	1.Rated Power:450W 2.Max Input Power:900W 3.Impedance:8Ω 4.Frequency Response:45Hz-800Hz 5.Sensitivity:99dB(1m/w Sensitivity) 6.System Type:Single 15inch subwoofer 7.Woofer Unit:15" woofer1 8.Max SPL:124dB 9.Connector:SPEAKON NL41 PIN1+/2+POS. PIN1-/2-NEG(plus/minus 4 cores plugs) 10.Material:18mm plywood 11.Surface treatment:black paint 12.Color:black 13.Product Size(mm/set):544800860 14.N.W.:30kg	2 pcs
8	power amplifier CH1000	1.8Ω Stereo Power:1000W2 2.4Ω Stereo Power:1500W2 3.8Ω Bridging Power:3000W 4.4Ω Bridging Power:4000W 5.Channel Resolution(within 1 KHz):>60dB 6.Frequency Response:20Hz-20KHz/ ±1dB 7.THD:<0.025%@8Ω1KHz 8.SNR:>100dB 9.Conversion Rate:>20V/μs 10.CMRR:>70dB 11.Input Impedance:Balanced 20KΩ; Unbalanced 10KΩ 12.Amplifier Circuit:H class 13.Impedance:Coefficient:200@1KHz/8Ω 14.Input Sensitivity:0.775V 15.Main Fuse:10A 16.Power Supply:220V/50Hz 17.Product Size(mm/set):34548388 18.N.W.:19kg	1 pcs
9	Equalizer 2231	Input Impedance:balanced: 40KΩ/ unbalanced: 20KΩ Output Impedance:balanced: 300Ω/ unbalanced: 150Ω Input Range:≤+18dB Frequency response:20Hz~20KHz (±1dB) SNR:≥90dB THD:≤ 0.01% (0dB, 1KHz) Channel Separation:<80dB, 20Hz Power consumption:≤70W Output Socket:1/4' TRS, XLR interface Power supply:AC 110V/220V 50/60Hz Product Size(mm/set):482190132 N.W. (KG):5.4	1pcs
10	24 channel amplifier JB-L24	1.Channel:24-channel (USB) 2.Input:balanced microphone20, stereo2 3.Output:L/R/MONO/AUX2 4.SNR:<-90dB 5.THD:<0.01% 6.Frequency Response:20Hz-20KHz(±1B) 7.Input Sensitivity-Microphone:-60dB 8.Stereo Input:-40dB 9.Auxiliary Input:-20dB 10.Mix Return:-20dB 11.Impedance matching-Microphone input:1.6KΩ 12.Other input:>10KΩ 13.Recording Output:1.1KΩ 14.Other Output:120Ω 15.Equilibrium Parameter-HF:12KHz±15dB 16.Medium Frequency:3.5Hz±15dB 17.Low Frequency:350Hz±15dB 18.Main Output level:+4V max 19.Cosumed Power:30W 20.Color:blue 21.Product Size(mm/set):873410*62 22.N.W.(KG):10.1	1 pcs
11	audio processor DP36II	Input Channel & Socket:XLR female 3 Output Channel & Socket:XLR female 6 Input Impedance balanced: 20KΩ Output Impedance:balanced: 100Ω; Input Range:≤+25dB; KCMR:>70dB(1KHz) PC interface:panel USB interface1 backboard RS485 interface (RJ-45)2 Frequency response:20Hz~20KHz ±0.5dB; SNR:>110dB THD:<0.01% output=0dB/1KHz Channel Separation:>80dB(1KHz); Power consumption:≤25W Power supply:AC 110W/220V 50/60Hz Product Size(mm/set):48219044; N.W. (KG):4.1	1 pcs
12	Digital Effector DSP2124	Input Socket:1/4" TRS, XLR interface Input Impedance:balanced 40KΩ/ unbalanced 20KΩ Input Range:≤+25dB Output Socket:1/4" TRS, XLR interface Output Impedance:balanced 102Ω/ unbalanced 20KΩ Frequency response:20Hz~20KHz ±1.5dB SNR:≥98dB Processor:24-bit DSP 48KHz sampling THD:≤0.01%(0dB, 1KHz) Dispaly :Lattice LCD Power consumption:≤8W Power supply:AC 110W or 220V 50/60Hz Installation Height:1U Product Size(mm/set):48315544 N.W. (KG):2.2	1 pcs
13	8 ways microphone FL-8328	Oscillation Mode:Quartz crystal oscillator Frequency Range:VHF 190MHz~280MHz; Frequency Stability:±0.001% Max Frequency Drift Rate:±50KHz; Modulation Mode:FM SNR:>105dB; T.H.D:<0.5% @1KHz; Sensitivity:1.2/UV @ S/N=12dB Power Supply:DC 12V~17V; Audio Output:independent: 0~400mV mix: 0~300mV Emitter Parameter; Power Supply:DC 9V MIC Power Consumption:30mA; Carrier Frequency:VHF 19MHz~270MHz; Frequency Stability:±25KHz SNR:>105dB(S/N Ratio); Adjacent-channel Interference:>80dB Dynamic Range:≥100dB; MIC Type:Condenser Directivity:Single; Frequency Response:40Hz~20KHz MIC Sensitivity:-47±3dB @1KHz	1 set
14	UHF wireless microphone FK-800	1.Transduction:Moving coil 2.Installation Height:1U 3.Frequency Range:740-790MHz 4.Channel:Two-channel 5.Frequency Response:40Hz~18KHz±2dB 6.Frequency Range:12dBV(S/N>80dB) 7.Signal channel amount:200 preset channel, channel interval 250KHz 8.Comprehensive SNR:105dB 9.Neighbouring signal channel restrain:≥70dB(jamming signal) 10.Receive Mode:True diversity 11.Max Output Level:+10dBV 12.RF Output Power High power 30mW/ low power 3mV 13.Sensitivity:adjustable 14.Emitter Power Supply:3V(1.5V buttery2) 15.Product Size(mm/set):420190*40 16.Color:Silver grey 17.N.W.(kg):2.3	2 set
15	power sequencer SC-1030B	1.8-way power supply sequencer 2. real-time monitoring power supply voltage LED display window; 3. Optional bypass single channel with USB interface; 4. contains micro-controller, from 1 to 8 in the order of boot and from 8 to 1 way reverse shutdown; 5. 8-way self-locking switch; single maximum output current 220v / 10A; 6. Height 1.5U 7.The main technical parameters: 8.Number of channels: 8; 9.Single maximum output current: 10A; 10.Auxiliary power output: 10A; 11.Working voltage: 180V-240V; 12.Switch interval: 1 second;	1 pcs
16	hanger 1015A	1.8kg/pair 4pcs/CTN 462833cm, 18.2kg	2 pair
17	16U flight case	603X(90+520+90)X958	1 pcs
18	audio cable	Copper with dual core, low impedance, high shielding, XLR or 6.3mm, 1.5 m length, 0.1kg / pcs	10 pcs
19	speaker cable	300 core,2.5mm 90m/roll;4.5KG/roll	3 roll

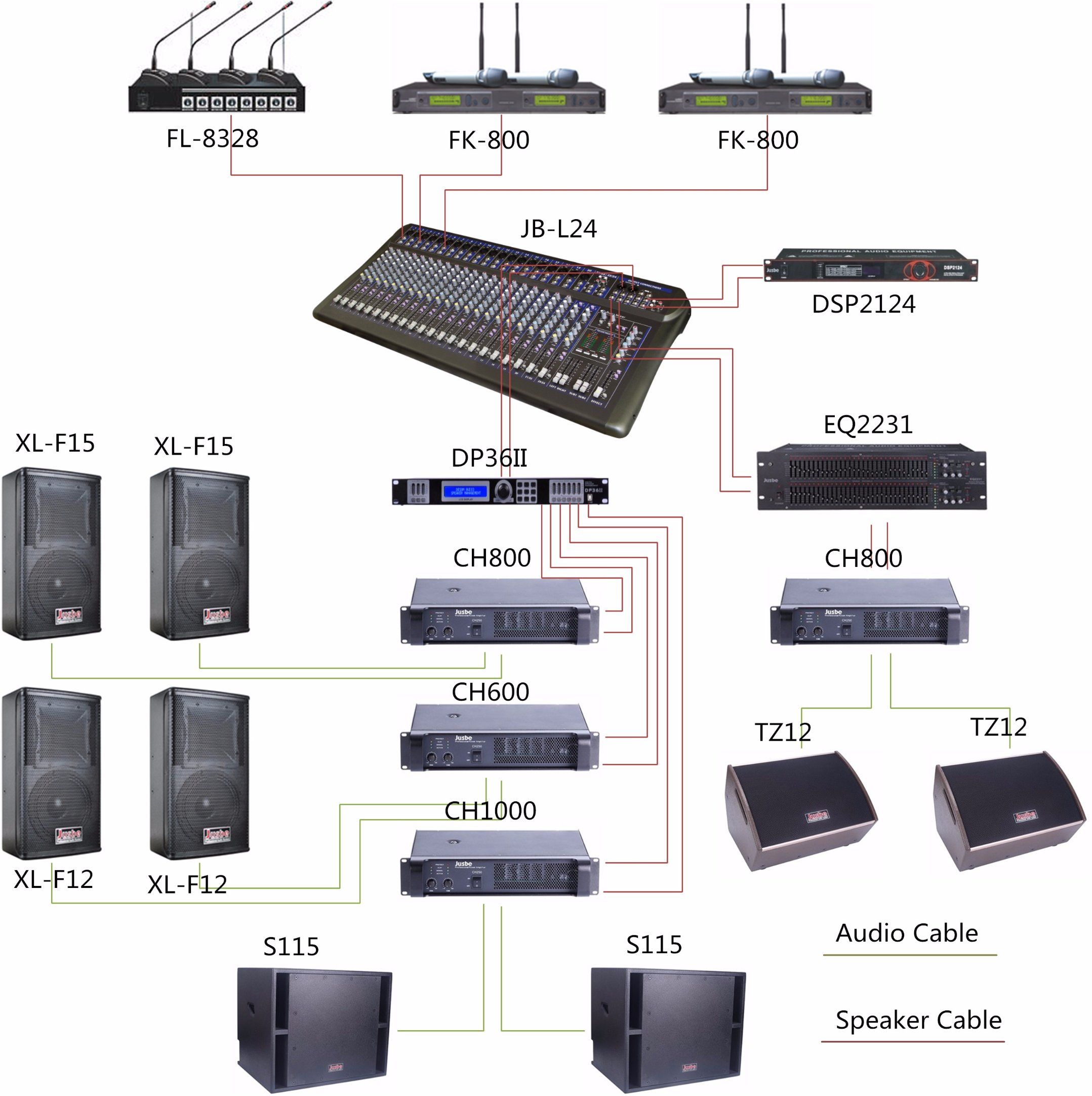

Diagram:
