| Prod Model: |
CSL-STX812M |
| Model: |
Stx815m |
| Hf: |
1 X 1.7 Inch Diaphragm |
| Lf: |
1 X 12 Inch Woofer |
| Frequency Response: |
55Hz - 20 kHz |
| Rated Power: |
800W |
| Impedance: |
8ohms |
| Sensitivity: |
96 dB |
| Maximum Spl: |
131 dB |
| Products Packing: |
Packaged in Carton Case or Flight Case |
| Warranty: |
2 Year |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
FCC |
| THD: |
<0.005% |
| Operation Mode: |
Cable Connecting |
| Monitor: |
No LED |
Product Description

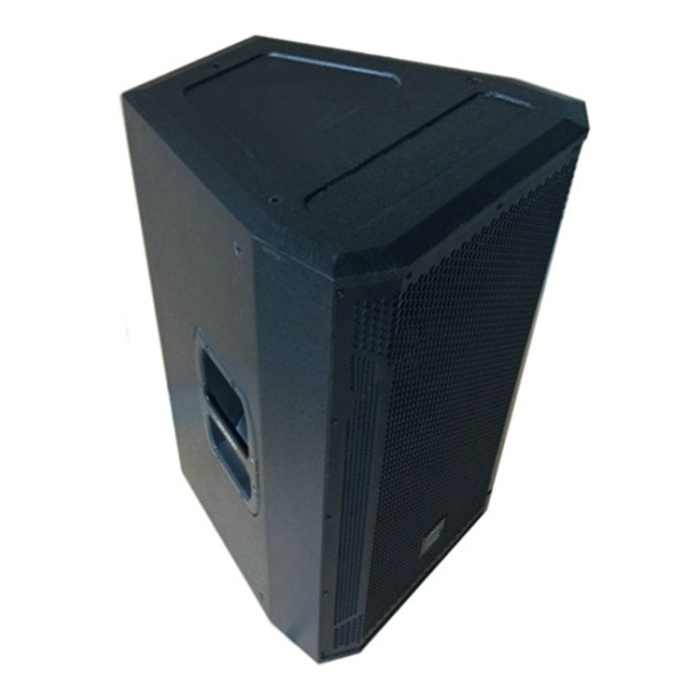

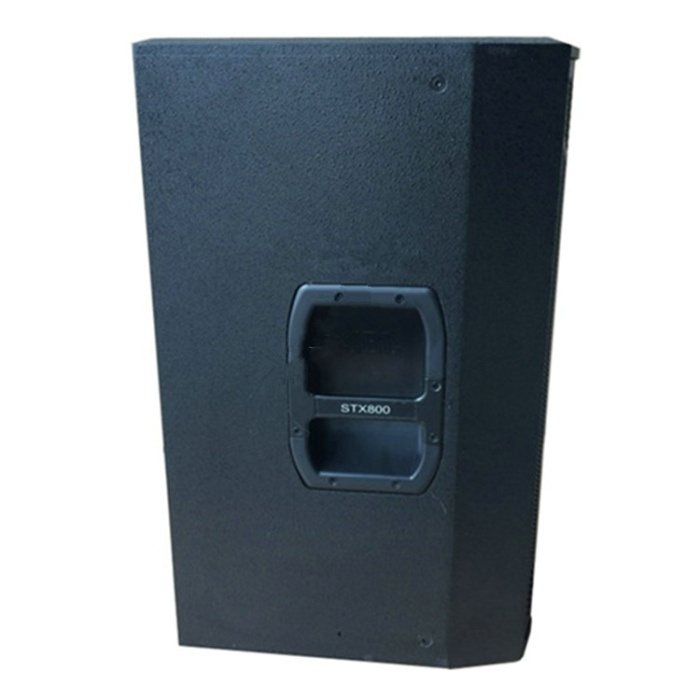

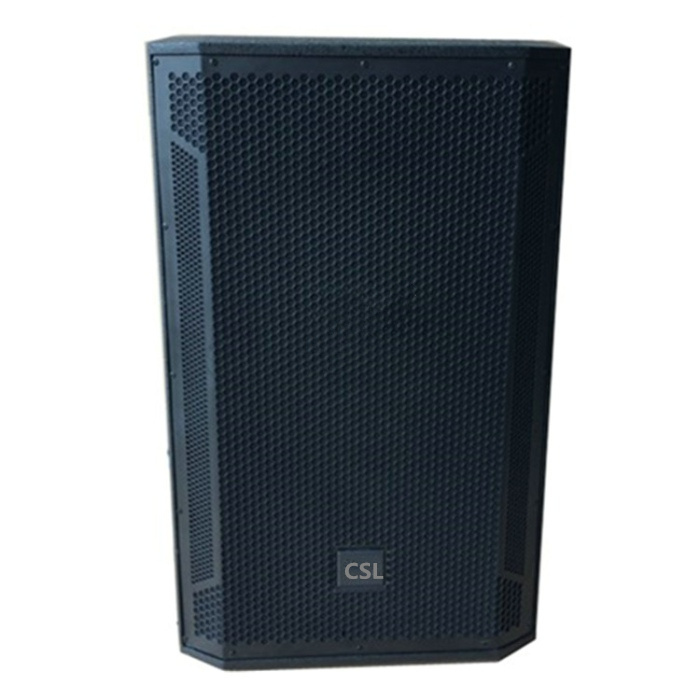

Stx812m Stage Monitor Speaker
Stage Speaker for Monitor (Stx812m)
12" Two-Way, Bass-Reflex, Stage Monitor/Utility
Designed specifically to be a high performance 12" two-way floor monitor, it can also do double duty as a utility speaker for use on a tripod stand or over a subwoofer, utilizing a single-position pole mount. A 70 degree by 70 degree waveguide is utilized for precise coverage.
Features:
--Compact and low-profile for minimal obstruction of audience sight-lines.
--70° X 70° Nominal coverage.
--Bi-amplified or full-range passive operation.
--Pole socket for applications requiring pole or tripod mounting.
--High power handling, low distortion Vented Gap Cooling™ LF driver.
--3 in. (diaphragm) neodymium magnet compression driver.
--Rugged DuraFlex™ Coated enclosures sized to be truck pack friendly.
--14-Gauge steel grille lined with acoustically transparent cloth..
Here we promise:
Quality and reputation is first.
Service is best.
Delivery on time.
Any question about STX812M Stage Monitor Speaker
Welcome for details! ! We're glad to service you.
CSL is committed to bring you the best speakers and amplifiers at the best possible price.
CSL sells directly to you at factory prices. NO MIDDLE MEN.
CSL will stick by you and won't let you down.
Welcome to visit our company for feeling real sound.
| Stage Speaker for Monitor (Stx812m ) |
| Specifications : |
| Frequency Range (-10dB): | 50 Hz-20 kHz |
| Frequency Response (±3dB): | 75 Hz-20 kHz |
| Coverage Pattern: | 70×70(degree) nominal |
| Sensitivity (1W/1m): | 95dB |
Power Rating:
(Cont. Pink Noise/Program/Peak) | 800W/1600W/3200W
(Continuous/Program/Peak) |
| Rated Maximum SPL: | 130dB SPL Peak |
| Nominal Impedance: | 8Ω |
| Input Connectors: | Two NL4 |
| Operational Modes: | Full Range/Bi-Amp |
| Dimensions(HxWxD): | 571mm x 355mm x 264mm
(22.5"x 13.4"x 10.4") |
| Net Weight: | 19 kg(42lbs) |
