| Prod Model: |
CSL-KUDO12 |
| Model: |
CSL-Kudo12 |
| Drive: |
Neodymium Drive |
| Lf Components: |
2 X12" Woofer |
| Frequency Response (-3dB: |
35 Hz - 20 kHz |
| Nominal Impedance: |
16ohms |
| System Sensitivity (1W@1m): |
98dB Spl |
| Cabinet: |
18mm Birch Plywood |
| Maximum Spl: |
133dB |
| Products Packing: |
Packaged in Carton Case or Flight Case |
| Warranty: |
1 Year |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
CCC |
| THD: |
<0.005% |
| Monitor: |
Non |
Product Description

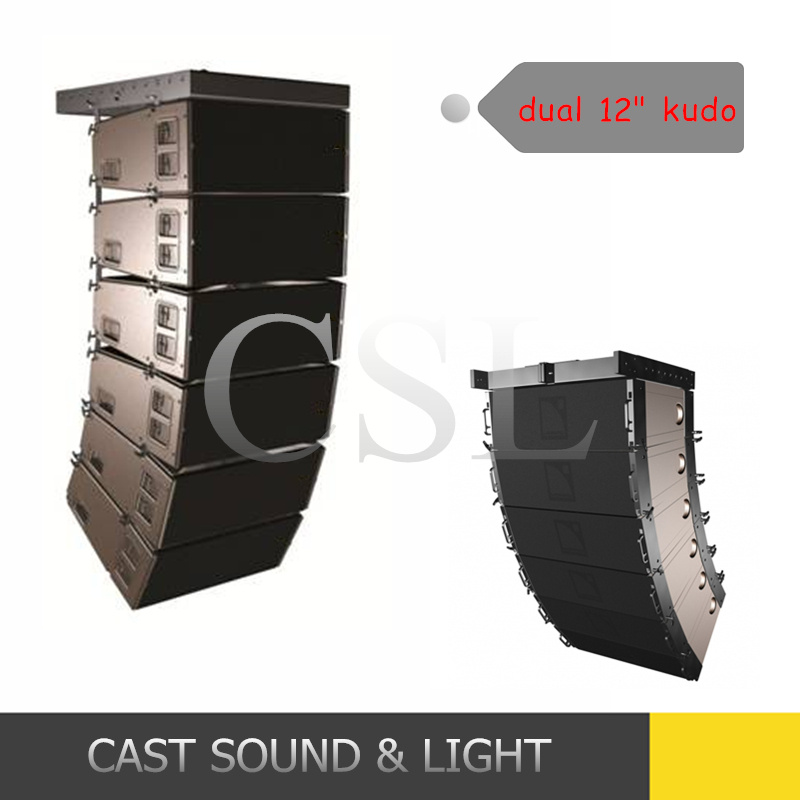

PRO Line Array System dual 12" 3 way Professional Speaker
3-way line array
Dual 12" line array system
High power line array speaker
Fanastic nice sound line array
Outdoor line array system
The system shall consist of a 3-way enclosure quad-amplified design using the Wavefront Sculpture Technology (WST) and driven and protected by a dedicated amplified controller. Loudspeaker enclosures shall be installed vertically or horizontally.
K-LOUVER variable directivity with 50° /110° Symmetric, 80° Asymmetric
Arrayable as a constant curvature horizontal line source
Variable line source, splay angle up to 10° For increased vertical coverage
25 Hz mode for exceptional LF performance, reduced subwoofer needs
Specifications:
| Specifications | |
| Model | KUDO |
| System type | Passive 3 way dual 12 inch line array |
| Usable bandwidth | 35 Hz - 20 kHz |
| Nominal Directivity (-10dB) | Horizontal: 50° or 110° symmetric - 25°/55°
or 55°/25° asymmetric |
| Maximum SPL | 140 dB |
| RMS handling capacity(LF) | 2 x 450 W |
| RMS handling capacity(MF) | 4 x 150 W |
| RMS handling capacity(HF) | 2 x 75 W |
| Components(LF) | 2 x 12inch , mounted in a bass-reflex enclosure |
| Components(MF) | 4 x 5.5inch high efficiency |
| Components(HF) | 2 x 1.7inch super ferrite magnet driver |
| Material | Birch Plywood |
| Front | polyester powder-coated steel grill |
| Rigging | integrated flying hardware and handles |
| Size | 876 x 356/276 x 689 mm |
| Weight | 87 kg |
Applications
1> Medium size live performance
2> High class conference room
3> Theatre, multi-function hall, church.
Suitable amplifier:
FP-10000Q 1350W four channels switch power amplifier.
QA-6112.TD-1200 1200W two channels power amplifier
Suitabie subwoofer:
CSL-S-218 1200W subwoofer for outdoor and indoor
CSL-SB-28 2000W subwoofer for outdoor
Suitabie Crossover:
Our line array can be internal crossover and external crossover
We suggest our CSL-DP-480 and CSL-CP-4800 processor
Suitabie Fly frame:
We have fly frame,safely belts,pins for line array,
Description:
1)We have passed ISO9001,also we have passed SGS,CE, CCC, FCC, ROHS, CE-LVD and so on.
2)We are a factory which has 6400 square metres.
3)We offer OEM service including the Logo,panel.color and parameters.
