| Prod Model: |
TRB 135 top type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
557kg |
| Length: |
1735mm |
| Require Oil Flow: |
60~100L/Min |
| Impact Rate: |
400~800 |
| Applicate Exvacator: |
7-30tons |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Type: |
Breaker |
| Application: |
Breaker |
| Excavator Bucket Type: |
Breaker |
| Bucket Works: |
360 Rotate |
Product Description

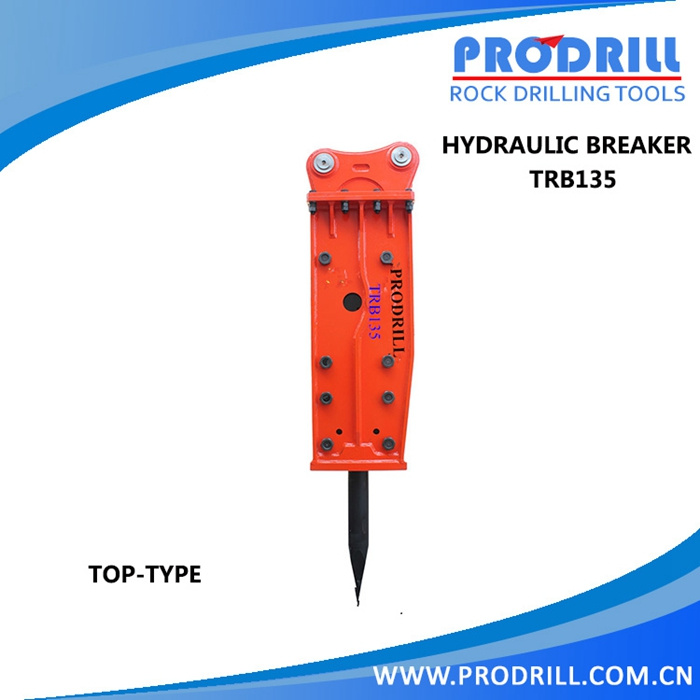

Excavator Rock Breaker for 30 Tons Excavator Cat
We are a professional manufacturer specialized in the hydraulic breaker with superior quality, We also supply other concerned hydraulic spare parts including main body assembly, the back head, cylinder assembly, front head, piston, reversing valve, oil seal retainer and etc. Our products can be used for Komatsu, Hitachi, Kobelco, Kato, Sumitomo, Hyundai, Volvo excavator, etc.
1) use the highest strength material to get better wearing resistance.
(2)Easy maintenance, prolonged life.
(3) we have accumulated sales of 20, 000 units, rich maintenance experience.
(4)The warranty period is 1 year.
Specification:
| TRB680 | TRB850 | TRB1000 | TRB1350 | TRB1400 | TRB1550 | TRB1650 | TRB1750 |
Weight
(kg) | 258 | 557 | 753 | 1653 | 1774 | 2569 | 2752 | 3912 |
Length
(mm) | 1415 | 1735 | 1994 | 2367 | 2414 | 2760 | 2816 | 3176 |
Required oil Flow
(L/min) | 40~70 | 60~100 | 80~110 | 120~150 | 130~1800 | 180~240 | 200~260 | 210~290 |
Working pressure
(kgf/cm2) | 110~140 | 130~1640 | 150~170 | 160~180 | 160~180 | 160~180 | 160~180 | 160~180 |
| impact rate | 500~900 | 400~800 | 350~700 | 400~800 | 350~500 | 300~450 | 250~400 | 200~350 |
Hose Diameter
(In) | 0.5 | 0.75 | 0.75 | 1 | 1 | 1 | 1.2 | 1.2 |
| Chisel Diameter (mm) | 68 | 85 | 100 | 135 | 140 | 155 | 165 | 175 |
Chisel Length
(mm) | 700 | 900 | 1000 | 1300 | 1300 | 1500 | 1600 | 1600 |
Applicate Exvacator
(Ton) | 4~7 | 7~14 | 10~15 | 18~26 | 18~26 | 28~35 | 30~45 | 40~55 |
Advantages:
1.Piston: the claim rate 0.1% for one year, The production line is CNC maching centre from Germany, Japan and South Korea.
2. Main body: For front head, back head and cylinder, we all use 20 CrMo, Adopt the most advanced Austrian heat treatment production line also with
carburizing process over 36 hours, and depth of 1.8mm, while for other supplier, they use 40 CrMo, and use normal heat treatment equipment, only just need
5 hours heat treament process.
3. Bracket : Our materials is Q345 ( 16Mn), and obviously betten than other suppliers'Q235.
4. Control Valve : Also with Austrian heat treatment process, which is directly imported from South korea
5. Seal kit: we use NOK brand, imported from Japan directly,
6. Spare parts : four our through bolt, from cover, inner bush and tools, we all use 42CrMo, this steel raw materials is with betten strength and goood resistance
7. Robust design, durable parts and experienced engineers have enabled our hydraulic breakers to be POWERFUL in Striking, STABLE in Performance
and DURABLE in Lifetime.
8. Annual manufacturing capacity is 10 000, enjoy great popularity in the Middle East, India, Russia, Brazil, Mexico and so on.
9. OEM service offered, Technical Help to Importers, Design Service Offered, Buyer Label Offered
10. Quick delivery time: 1-2 weeks after deposit arrival.
About Us:
1. Our factory has been specialized in manufacturing rock drilling tools and spare parts for over 10 years.
2. Electro-hydraulic forging hammers for forging process, Italian atmosphere-controllable sealed quench furnace for heat treatment, CNC machines for accurate finishing
3. Our technician has more than 13 year's professional working experience.
4. Drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc
3. About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
