Professional Diamond Core Drill Bits for Concrete
| Price: |
US $ 6-200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CBC |
| Markets: |
North America,South America,Eastern Europe,Oceania,Mid East,Western Europe |
| Customized: |
Customized |
| Usage: |
Stone Cutting, Drilling, Engineering Material |
| Manufacturing Arts: |
Welding |
| Kind: |
Diamond Drill |
| Specification: |
14mm to 500mm |
| Saw Blade External Diameter: |
16mm to 500mm |
| Application: |
Reinforced Concrete |
| Length Of Barrel: |
400mm, 450mm, 500mm |
Product Description

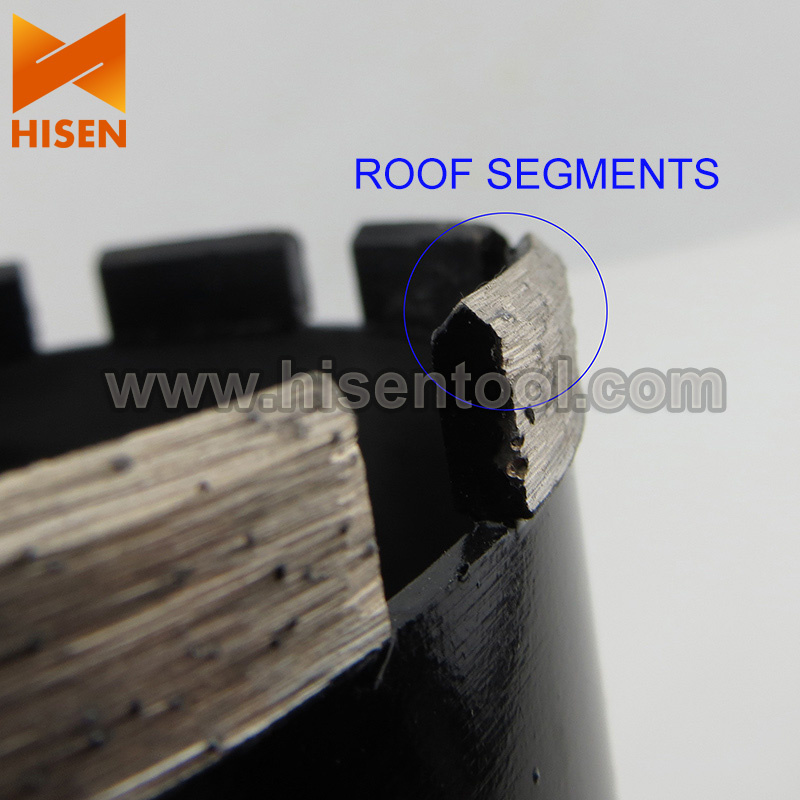

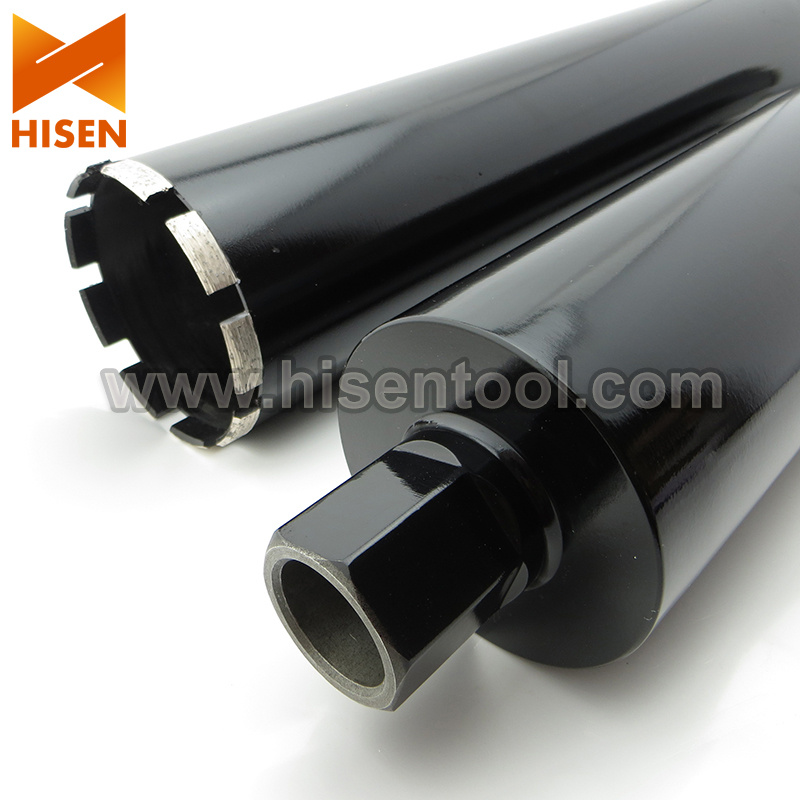

Real Factory == √ Strictly Quality Control == √ Good Price == √ High qualityOur company specialized in producing laser welded diamond core drill bits, which are mainly used for wet cutting reinforced concrete, concrete, masonry walls. Laser welding not only gives the bit the ability to cut through reinforced concrete, but it also prevents segment loss. Crown segments are used on bits less than 2" diameter. Bits 2" diameter and above are segmented and laser welded. Features: Fast cutting, long lifeThread: 1 1/4-7 UNC female threadWelded: Leaser weldingType: Wet DrillingSegment type: flat segments, roof segments, turbo segmentsOther length and thread can be produced as required.
| Item No. | Diameter
mm | Segment Diamension
Width*height mm | Valid Length
mm |
| CBC16 | 16 | 2.5 *10 | 400/450 |
| CBC18 | 18 | 2.5 *10 | 400/450 |
| CBC20 | 20 | 2.5 *10 | 400/450 |
| CBC22 | 22 | 2.5 *10 | 400/450 |
| CBC24 | 24 | 2.5 *10 | 400/450 |
| CBC25 | 25 | 2.5 *10 | 400/450 |
| CBC26 | 26 | 2.5 *10 | 400/450 |
| CBC28 | 28 | 2.5 *10 | 400/450 |
| CBC30 | 30 | 2.5 *10 | 400/450 |
| CBC32 | 32 | 3.0 *10 | 400/450 |
| CBC35 | 35 | 3.0 *10 | 400/450 |
| CBC38 | 38 | 3.0 *10 | 400/450 |
| CBC40 | 40 | 3.0 *10 | 400/450 |
| CBC42 | 42 | 3.0 *10 | 400/450 |
| CBC45 | 45 | 3.0 *10 | 400/450 |
| CBC51 | 51 | 3.5 *10 | 400/450 |
| CBC56 | 56 | 3.5 *10 | 400/450 |
| CBC63 | 63 | 3.5 *10 | 400/450 |
| CBC66 | 66 | 3.5 *10 | 400/450 |
| CBC71 | 71 | 3.5 *10 | 400/450 |
| CBC76 | 76 | 3.5 *10 | 400/450 |
| CBC83 | 83 | 3.5 *10 | 400/450 |
| CBC89 | 89 | 3.5 *10 | 400/450 |
| CBC102 | 102 | 3.5 *10 | 400/450 |
| CBC108 | 108 | 3.5 *10 | 400/450 |
| CBC112 | 112 | 3.5 *10 | 400/450 |
| CBC120 | 120 | 3.5 *10 | 400/450 |
| CBC122 | 122 | 3.5 *10 | 400/450 |
| CBC127 | 127 | 3.5 *10 | 400/450 |
| CBC132 | 132 | 3.5 *10 | 400/450 |
| CBC140 | 140 | 4.0 *10 | 400/450 |
| CBC152 | 152 | 4.0 *10 | 400/450 |
| CBC162 | 162 | 4.0 *10 | 400/450 |
| CBC178 | 178 | 4.0 *10 | 400/450 |
| CBC182 | 182 | 4.0 *10 | 400/450 |
| CBC200 | 200 | 4.0 *10 | 400/450 |
| CBC228 | 228 | 4.5 *10 | 400/450 |
| CBC254 | 254 | 4.5 *10 | 400/450 |
| CBC300 | 300 | 5.0 *10 | 400/450 |
| CBC356 | 356 | 5.0 *10 | 400/450 |
| CBC400 | 400 | 5.0 *10 | 400/450 |
| CBC500 | 500 | 5.5 *10 | 400/450 |
Founded in 1991, HISEN DIAMOND TOOL Co., Ltd is located in Quanzhou City, Fujian province, endowed with a convenient transportation. We are a famous privately operated enterprise specialized in researching and manufacturing diamond tools for stone industry & construction industry. We have established a strict quality control system. Quality control goes thoroughly from the purchase of raw material, receiving inspection, to production and store.
Over 20 years' development, we have set a long-term business relationship with major distributors in Europe, America, Canada, Mexico, Russia, UAE, Iran, Lebanon, Columbia, India Egypt, Malysia etc. Our main products are as follows.
1. Diamond wire saw for Reinforced concrete, diamond wire for stone
2. Diamond blades 300 mm - 1600 mm
3. Diamond Polishing Pads
4. Abrasive brush & antique brush, abrasive filament (New & hot products )
5. Frankfurt abrasive, fickert abrasive
6. Diamond core drill bits
7. Diamond cup wheel, Floor tools
At any time, we are working for meeting our customers' satisfaction, offering all customers the most efficient and best service. Welcome you to join HISEN worldwide business patterns and establish long-term friendly relationship.
