| Prod Model: |
JL-DRCW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
D125mm |
| Bond: |
Resin |
| Diamond Grit: |
80#-400# |
| Shape: |
Cup Wheel |
| Angle: |
90 Degree |
| Material: |
Diamond |
| Abrasive: |
Normal Abrasive |
| Shapes: |
Edge Shape |
| Types: |
Surface Grinding Wheel |
| Working Style: |
Tool Grinding |
Product Description

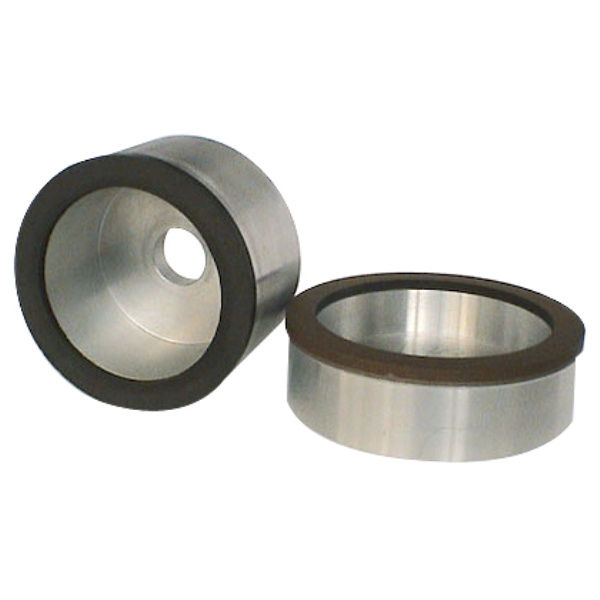

Product Name: Diamond Resin Cup Wheel(JL-DRCW)
Item No.: JL-DRCW
1.Diamond resin grinding wheel has a good polishing effect, grinding wheel sharp, easy to plug, the specific features are as follows: Resin Resin diamond grinding wheel diamond grinding wheel.
2.high grinding efficiency while consuming relatively slow grinding wheel;
3. self-sharpening, grinding, heat a small, easy to plug, reducing the grinding burn occurs when the phenomenon of work;
4. wheel has a certain degree of flexibility will help to improve the surface roughness, mainly used for grinding, semi-fine grinding, knife grinding, polishing and other processes;
5.diamond resin grinding is low temperature curing, short production cycle, equipment and supply process is relatively simple; due resin liquid, easy to shape complex plane of the wheel.
Application:
Resin bond diamond wheel: It is mainly used in grinding carbide, ceramics, magnetic, silic, self-fluxing alloy material.
Grit size incl. Mesh 80/100#, 100/120#, 120/140#, 140/170#, 170/200#, 200/230#, 230/270#, 270/325#, 325/400#
Size:D75~D400mm.

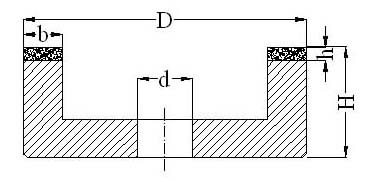

| Description | outer diameter(mm) | thickness | workingpart wideness(mm) | working part thickness | angle(ºC) |
| Single side parallel wheel | 70,100,125,150,180,200 | 4,5,6,8,10 |
| 3.5 |
|
| cup wheel1 | 80 | 27 | 5,10,15,20 | 3 |
|
| 100 | 40 | 60 |
| 125 | 40,45 |
|
| 150 | 5,10,15,20,25 |
|
| parallel angle wheel | 80 | 30 | 3-10 | 3,5,8,10 | 10,15,20 |
| 100 |
| 125 |
| 150 |
| cup wheel2 | 50 | 38 | 5 | 2.5 | 60 |
| 75 | 10 |
| 100 |
| 125 |
| 150 |
