| Prod Model: |
TSY11G/15G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Cutting Method: |
Automatic |
| Invert: |
Yaskawa |
| PLC: |
Siemens |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Automation: |
Automatic |
| Type: |
Automatic |
| Source Voltage: |
Accordnig to Buyer Request |
| Control: |
Automatic |

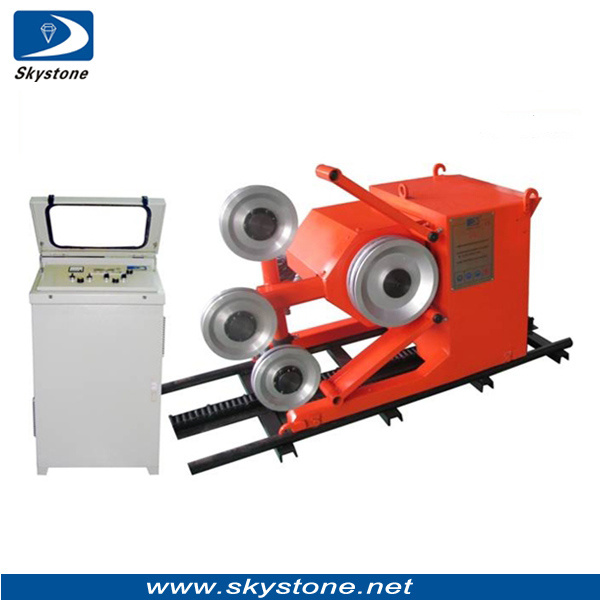

Product Description
Product Description
1). The wire tension and cutting current is closed loop automatic controlled by PLC and Inverter.
2). The cutting process can be automatic controlled accurately.
3). The movement and rotation of the cutting head is driven by motor with Position Limitation Protection.
4). Machine protection functions including: Wire broken, machine overload, cutting finishend, and others malfunction happened.
5). Display and saving with digitization: The value of cutting current, linear speed and moving speed indicated on the panel, and the cutting time can be saved.
6). The machine without phase request, It is needn't to change and distinguish the power phase.
Quality: CE certification.
Technical Parameter |
| Model | TSY-11 | TSY-15 |
| Main motor power | 11KW | 15KW |
| Cutting head Rotation | 360° (by hand or by motor) | 360° (by hand or by motor) |
| Linear wire speed | 0~32 m/min | 0~40 m/ min |
| Travelling speed | 0~60 m/h |
| Length of rail | 2m× 3 |
| Working condition | -15 º C~+40 º CHumidity< 95%(without dew) |
| Dimension(mm) | L=1200mm, W=570mm, H=730mm | L=1200mm, W=570mm, H=730mm |
| weight of main machine | 420kg | 464kg |
| weight of operation panel | 83kg | 83kg |
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
