Prod Model: |
Xyx-3, Xyx-200 |
Product Name: |
Xyx Wheel Walking Core Drilling Rig |
Model: |
Xyx-3,Xyx-200 |
Drilling Hole Depth: |
600m,200m |
Maximum Opening Diameter: |
300mm,300mm |
Final Hole Diameter: |
75mm,75mm |
Drill Pipe Diameter: |
50,60mm,50,60mm |
Borehole Inclination: |
90°- 65°,90°- 75° |
Power(Diesel Engine): |
38/2400kw/R/Min,15/2200kw/R/Min |
Vertical Spindle Speed: |
30-1050r/Min,64-557r/Min |
Vertical Stroke: |
600mm,450mm |
Product Description

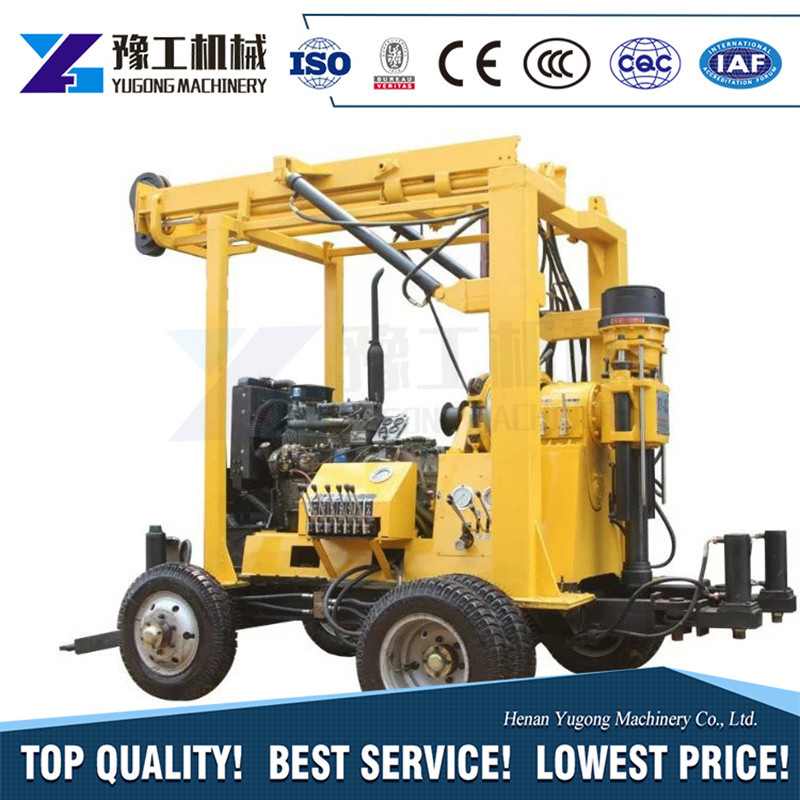

Geological Investigation Wheel Walking Core Drill Rig
Introduction
XYX-3 XYX-200 drilling rig is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.
Feature
• Hydraulic cylinder,high efficiency.
• Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.
• Pressure gauge display the condition of the bottom of the drill hole.
• Diesel engine with electric starter,convenient and reduce the labor itensity.
• Equipped with BW 250 mud pump.
Parameters
The whole machine parameters |
Model | XYX-3 | XYX-200 |
Drill hole depth | 600m | 200m |
Maximum opening diameter | 300m | 300m |
Final hole diameter | Φ75mm | Φ75mm |
Drill pipe diameter | Φ50,60mm | Φ50,60mm |
Borehole inclination | 90°- 65° | 90°- 75° |
Power(diesel engine) | 38/2400kw/r/min | 15/2200kw/r/min |
Motor | 22kw | -- |
Vertical shaft |
Vertical spindle speed | 30-1050r/min | 64-557r/min |
Vertical stroke | 600mm | 450mm |
Hoist |
Single line lifting capacity | 30KN | 24KN |
Single rope lifting speed | 0.5-1.9m/s | 0.12-0.95m/s |
Drum diameter | Φ305mm | Φ140mm |
Diameter of wire rope | Φ12.5mm | Φ13mm |
Wire rope capacity | 65m | 35m |
Mud pump |
Model | BW250 | BW160 |
Flow | 250L/min | 160L/min |
Maximum pressure | 17Mpa | 1.2Mpa |
Reciprocating frequency | 93times/min | 93times/min |
Water inlet diameter | Φ75mm | Φ51mm |
Water to exit diameter | Φ50 | Φ32mm |

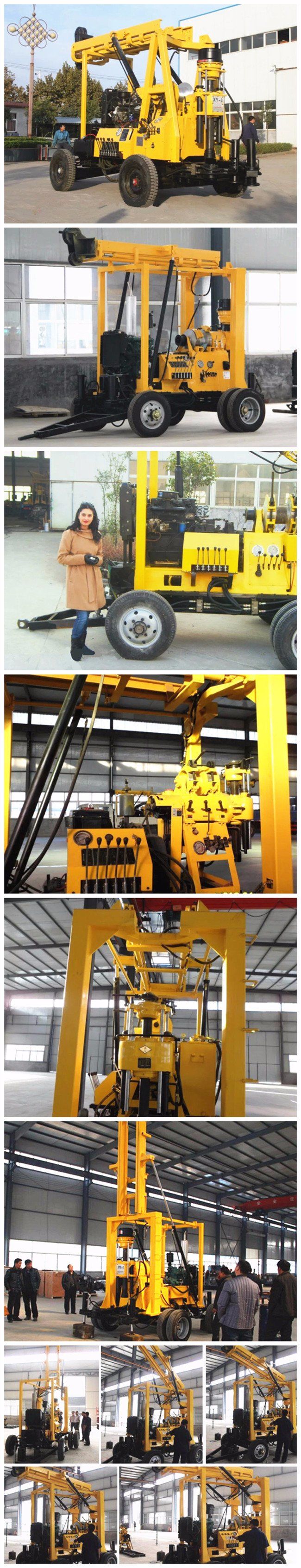

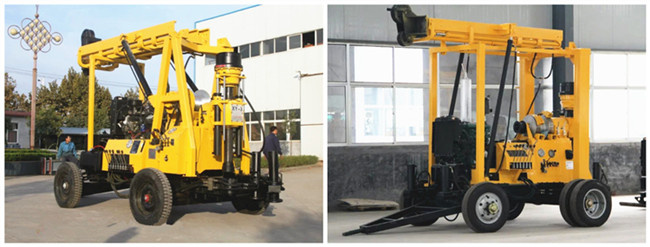

Product Display

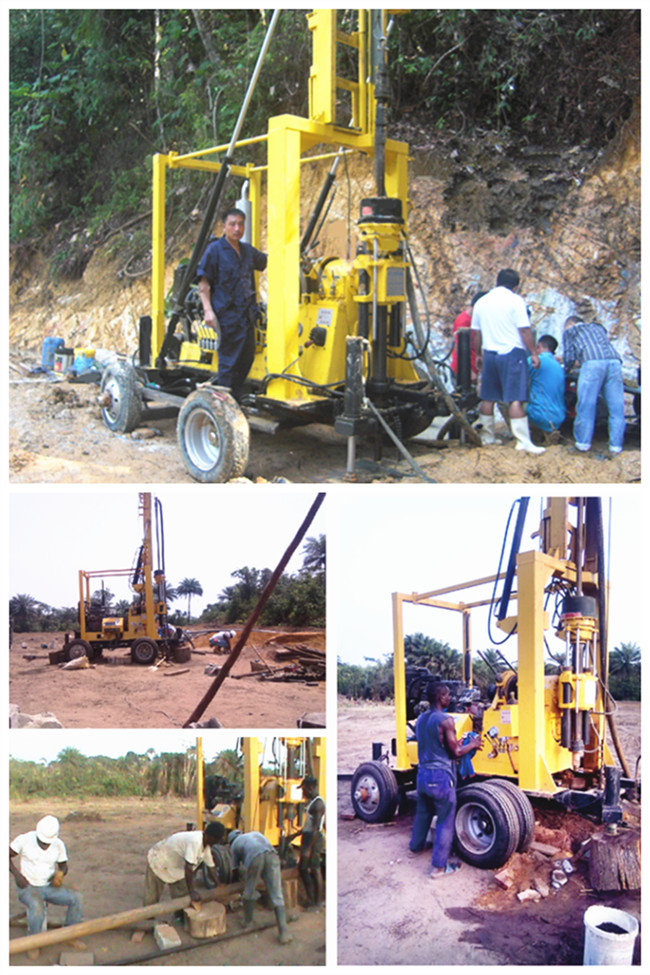

Working
Packing and Shipping
FAQ
Q1: Are you trading company or manufacturer?
A1: We are original equipment manufacturer.
Q2: How long is your delivery time?
A2: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
Q3: Do you provide samples? Is it free or extra?
A3: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
Q4: What is your terms of payment?
A4: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.

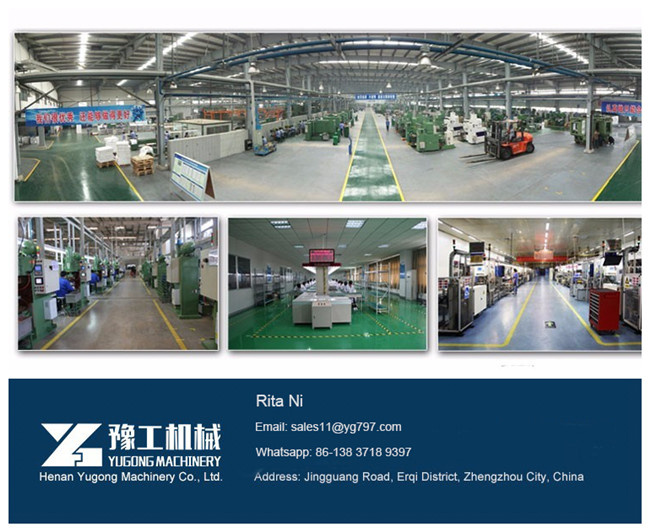

Company and Contact Information Henan Yugong Machinery Co.,Ltd. is specialized in machinery in China over 20 years.We are committed to researching and developing all kinds of mineral equipment, construction machinery, prestressed machinery, metallurgy machinery etc.
