| Prod Model: |
MBZ503L |
| Cutter: |
Helical Cutter |
| Material For: |
Hard Wood |
| Function: |
Planing for Wood Surface |
| Size Of Workbench: |
1850*330mm |
| Motor: |
3 Phase |
| Votage: |
380V/Customize |
| Weight: |
380kg |
| Certification: |
ISO |
| Working Width: |
300mm |
| Motor Power: |
2.5kw |
| Cutter Shaft: |
72 |
| Spindle Speed: |
5500r/Min |
Product Description
STRENGTH WOODWORKING MACHINERY company have 40 years manufacturing experiences of solid wood equipment.

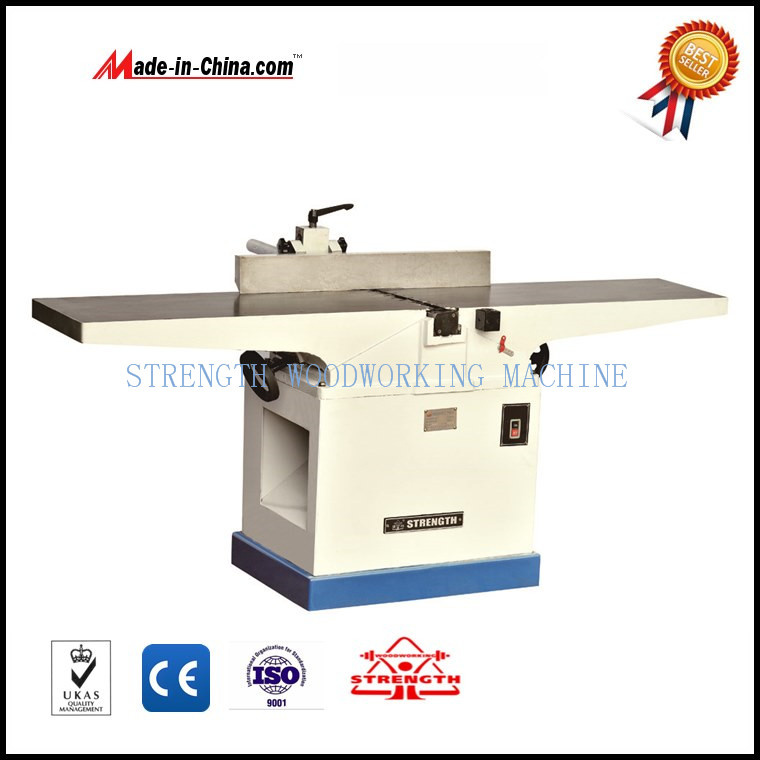

Production Description:Wood Jointer with Helical Cutter Head
Model: MBZ503L/MBZ504L| Main technical data | MBZ503L | MBZ504L |
| Max. working width | 300mm | 400mm |
| Max. planing depth | 5mm | 5mm |
| Cutter head planing diameter | ¢75mm | ¢100mm |
| Cutter head speed | 5500r/min | 5500r/min |
| Motor power | 2.2kw | 3kw |
| Workbench size | 1850*330mm | 1850*430mm |
| Machine weight | 380kg | 480kg |
Jointer planer main features:
1.high precision
2.long service time and durable quality
3.planing many kinds of the wood material
4.settting with helical cutter head
5.safty and high protection
6.high efficiency

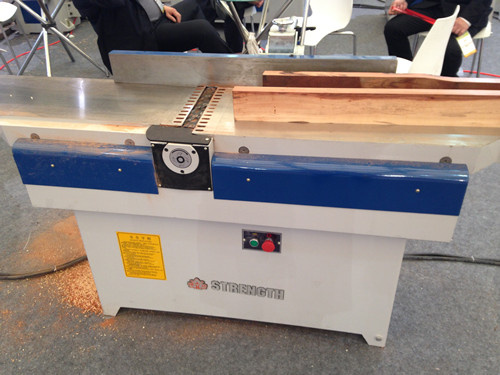

Products pictures:
We take the photoes 100% for the real machines

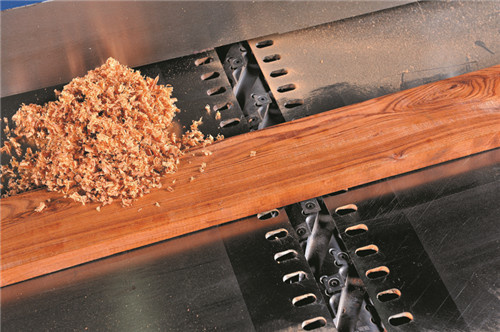

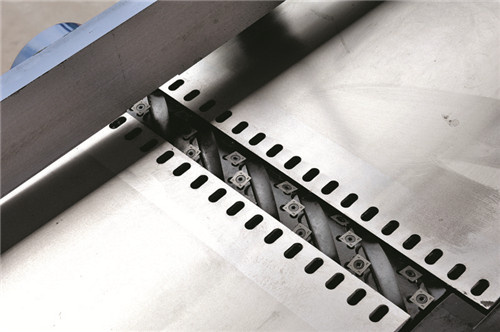

Jointer setting with Spiral cutter head
The blades Brand is TIGRA made in Germany
Production Function:
For planing wood surface
Company information:
Our manufacturer is specializing in the production of woodworking machinery in China. Products cover eight series and above forty types , like Planer Series as Press Planer, Surface Planer, Thickness planer , Double Side Planer; Four side planer; Saw Series as Rip Saw , single and Multiple Saw, Cutting saw, sliding table saw, etc.
More than 40 years development, we have professional team, technical advantage, quality guarantee, reasonable price and top-rate service.
FAQ:
Q:what is your leading time?
A:Within 7 days for motor 3 phase, 380V, 50Hz, 10-20 days if the motor is different.
Q:Where is your loading port?
A:Shanghai or Ningbo.etc, China port
Q:what are your payment term?
A:30% deposit and balance T/T before delivery or Alibaba Escrow
Q: What's your warranty time?
A: 12 months for machining parts and 6 months for electronic parts.
Jinghua Powerful(STRENGTH) Woodworking Machinery Co., Ltd., is an advanced enterprise of ministry & technology advanced enterprise of Zhejiang province. It lies in Yangbu town by the south of Qu River, the upper reach of Qianjiang River, which is the central section of Zhejiang province. Preponderance in location, convenient in traffic, with 03 provincial road & Hangjingqu autobahn pass through the town. The company occupies 78 thousand sq. M., with 31 thousand sq. M. Architectural area. The company, which is specialized in manufacturing "STRENGTH" brand woodworker machine series, has excellent technicians, complete machine equipments, advanced inspection & account method, and has passed ISO9001-2000 and CE System of Quality Certification. After thirty years development, the company enlarges gradually and has owned eight series, more than forty kinds of products from the original single product. It also accepts the order of special specs. The products are well sole all over the country and the Southeast Asia, among which the produce and sale quantity of single side planer is No. 1 China. The products are favorable to the consumers. With the improverment of the market demand, we will continue to develop new products to meet different consumers`requirementS.
"manufacture high quality products, create value for consumers" is our target.
"quality first, consumer foremost" is our tenet
We always embrace the market principle of "satisfy the consumer"
We believe "Qiangjin will boost its own development with powerful motility & bring powerful development to the consumers at the same time. "
We are looking forward to cooperating with you!
We are the manufacturer for woodworking machinery 40 years with good quality and best price.
Main machines has: 1, Wood Jointer; 2, Wood Single Planer; 3, Wood Double Sided Planer; 4, Wood Four Side Moulder; 5, Wood Rip Saw; 6, Wood Ede Trimming Saw; 7, Wood Multiple Rip Saw; 8, Wood Horizontal Band Saw.
