Professional Stage Sound Best Subwoofer Speaker Vcs

Name: Professional Stage Sound Best Subwoofer Speaker Vcs
Brand: tool-buy.com
SKU: 816645975
Availability: InStock
Rating: 4.7 (90 reviews)

Price:	US $ 1500-2000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Guangzhou Zsound Proaudio Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	VCS
Frequency Response:	38Hz-200Hz(±4dB) 25Hz-320Hz(-10dB)
Nominal Coverage:	Omnidirectional
Sensitivity (@1W/1m):	102dB Spl (40-200h) Spl
Power Rating (AES):	1200W
Nominal Impedance:	8ohm
Maximum Spl:	133dB(Continuous) 139dB(Peak)
Drivers Number:	2*15"(75mm Voice Coil)Woofer
Dimension (HWD):	613.5730700mm
Weights:	65kg
Connectors:	2*Nl4 Connectors
Noise:	<95dB
Hi-Fi:	Not Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Optional Combination
Speaker Material:	Wood
Application:	Commercial
Certification:	SGS
THD:	<0.005%
Monitor:	No Screem

Product Description

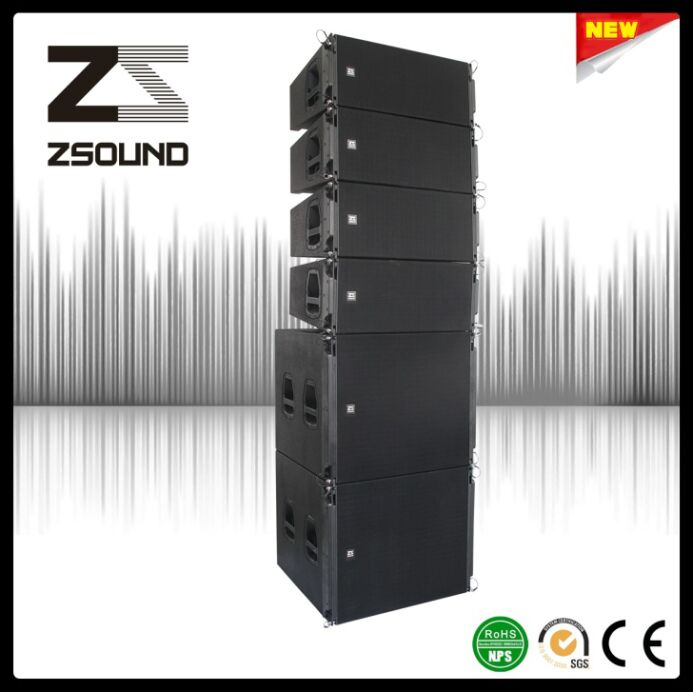

Line Array PA Woofer Dual 15 Inch Speakers Subwoofer

VCS subwoofer is a double 15 inch vented stereo, applied for various flow of language and
music sound boost applications, also can be used in all kinds of fixed installations. And VCM
line array full frequency match box can be extended low frequency response of the system.

VCS low frequency sound using the new bass unit, without any airflow noises while working in
ultra-high power, and use small volume, vented, horn preposition design,Small volume greatly
reduces the group delay of low frequency band, make sense of speed of the low frequency is
able to guarantee; Low-frequency unit prepositive horn structure to reinforce low-frequency
strength greatly:And large areas of inverting tube is increased the ultra-low frequency output,
and reduce the frequency of nonlinear distortion, so that the speed of the low frequency,
strength and thickness can have it all.

VCS is consist of two 15 "of low-frequency paper cone and inverter cabinet, on both sides of
the inverter hole to optimize structure of low frequency response, and strengthen the body.
and constructed by 18mm birch multi-plywood,the surface is finished with black textured water
paint.VCS has 4 hand cups on the sides, make it convenient to handle. Riggings on both sides
can be connected to the VCM directly. After wiring board have 2 loop quad WP4 socket
convenient to connect, and the speaker is covered with hexagon grill, with black sponge to
protect the drivers.

Zsound VCS Dual 15 Inch Audio System Line Array Subsonic Architecture

Features:

Soft and Low frequency elastic;
75mm voice coil long throw high power LF driver;
Small volume, vented, horn preposition design.

Specification:

TECHNICAL SPECIFICATION
Frequency Response:	38Hz-200Hz(±4dB) 25Hz-320Hz(-10dB)
Nominal Coverage:	Omnidirectional
Sensitivity (@1w/1m):	102dB SPL (40-200H) SPL
Power Rating (AES):	1200W
Nominal Impedance:	8Ohm
Maximum SPL:	133dB(continuous) 139dB(peak)
Drivers Number:	2*15"(75mm voice coil)woofer

PHYSICAL DATA
Dimension (HWD):	613.5730700mm
Weights:	65kg
Connectors:	2*NL4 connectors
Speaker Cables:	1-2+
Materials:	18mm birch multi-plywood splints
Finish:	Black water environmental elastically paint
Grille:	Black epoxy mesh grille with acoustically reticulated cloth
Rigging:	0 degree adjustable

Applications:

Touring performance/Live Show;
Theater/Cinema;
Stadium/gymnasium/sport facilities;
Auditorium/Church
Club/Bar/Live Music Venus;
Concert/Music Hall;
Airport/Square;
Fixed Installation Architecture.

Every year, Zsound took part in the Pro Audio Exhibition
around the world almost 10 times.

Zsound VCS Dual 15 Inch Audio System Line Array Subsonic Architecture

ZSOUND Pro Audio Technology co., Ltd is a company specializes in research,
development, production and trade of ZSOUND pro audio.
The ZSOUND was derived form a speaker lab found by 4 speaker enthusiasts, they were form
the same college and researched the brand new pro audio system together. From the driver of
speaker, they selected form a large number of drivers to find out the excellent on. In the case
of no suitable driver, they joint research with the speaker driver manufacturer to research the
new driver for the high-quality loudspeaker box. The experience of many years of system
debugging and the deep understanding of Pro audio system of the 4 people, had guided the
speaker's development direction.

Pro audio system is not only a simple combination of speaker, amplifier and processor, the
rational system design, installation, debugging and acoustical features are also the key to
reply the true sound. ZSOUND provides the whole Pro audio system hardware, meanwhile it
provides the system philosophy training. Philosophy system has already spread through the
many times of Pro audio system technical training.

Today, ZSOUND have a lot of series of loudspeaker, including LA series line array, S Series
sub-woofer, CM series coaxial monitor, M series monitor, CC series coaxial speaker, P series
multi-function speaker, V series speaker,K series entertainment speaker.All ZSOUND products
will have scientific design,accurate assembly and strict testing before being brought to marker,
most of the product are applied to touring performance and fixed installation, such as stadium,
theater, church,meeting room, music hall, bar, KTV, club, television stations and so on.

Zsound VCS Dual 15 Inch Audio System Line Array Subsonic Architecture

Zsound Advantage:

1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.

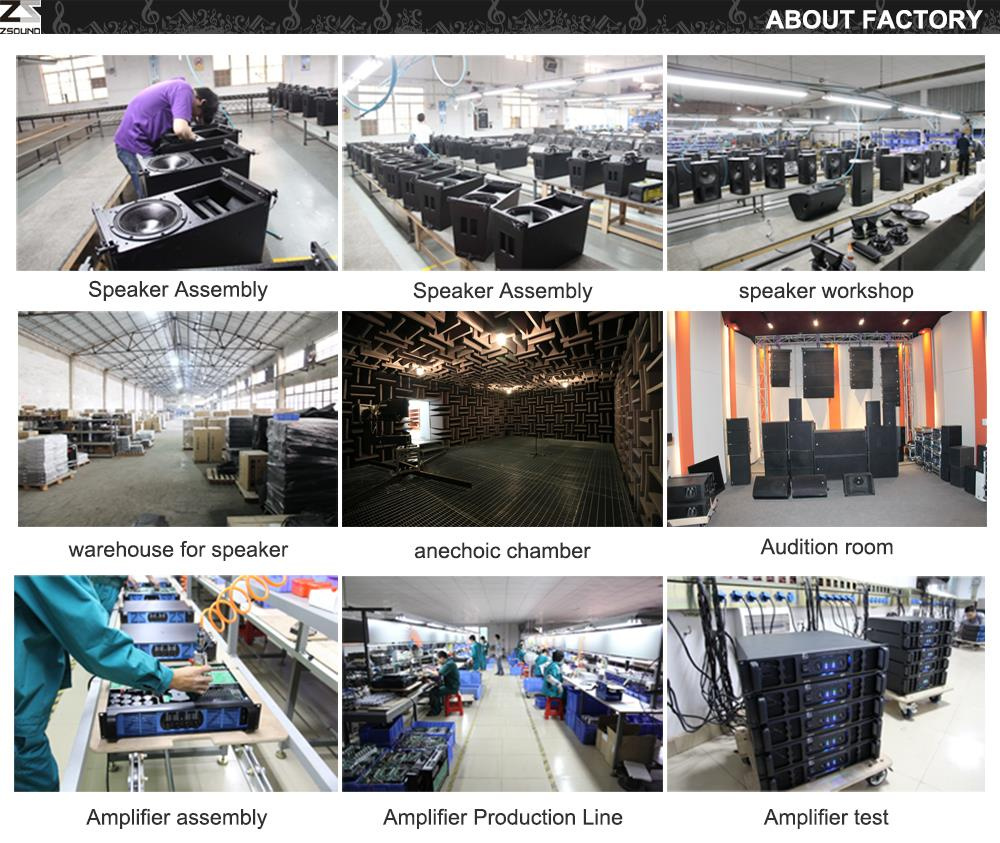

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.

Zsound VCS Dual 15 Inch Audio System Line Array Subsonic Architecture

FAQ:

Q1: How long is the warranty for the speakers?
A1: 1year warranty.

Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of
30% T/T deposit payment.

Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.

Q4: What's the MOQ?
A4: MOQ is 1pcs

Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .

Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time,
please rest assured that your information is also safe here.

Sunny Yan
Tel:0086 15818739656

Have a nice day!

Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.

Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.

During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.

What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance

In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.

After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.

Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
