| Price: | US $ 4700-6000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | YLB 1400 |
|---|---|
| Operating Pressure: | 160-180 Bar |
| Optimum Oil Flow: | 130-170 L/Min |
| Impact Rate: | 350-500 Bpm |
| Rod Diameter: | 140 mm |
| Applicable Carrier: | 20-26 Ton |
| Certification: | ISO9001: 2000 |
| Type: | Hydraulic Tool |
We can produce every model hydraulic breakers(OEM and ODM service are available), please contact me to get more informations you need.
Product description
Mining:Mining,second-time breaking
Metallurgy:Clearing slag,Demolition of furnace and foundation
Road:Repairing,Breaking,Foundation work
Railway:Tunneling,Demolition of bridge
Construction:Demolition of building and reinforced concrete
Ship repairing:Clearing clam and rust from the hull
others:Breaking Frozen mud
Parameter
| Description | Model | YLB 1400 |
| Operating weight | kg | 2042 |
| Operating pressure | bar | 160-180 |
| Optimum oil flow | L/min | 130-170 |
| Impact rate | bpm | 350-500 |
| Hose diameter | inch | 1 |
| Rod diameter | mm | 140 |
| Applicable carrier | ton | 20-26 |
| Energy calss | joule | 4200 |
| Valve Ass'y position | / | internal |
| YLB 1400 Breakers cover for excavator brand | Model |
| CAT | 320/321/322 |
| CASE | CX210/CX225/WX170 |
| HITACHI | EX210/EX220/EX230 |
| JCB | JS200/JS210/JS220 |
| KOBELCO | SK290/SK300/SK320 |
| KOMATSU | PC200/PC210/PC220 |
| VOLVO | EC210/EC230/EC240 |
| DOOSAN | DX210W/SOLAR220 |
| HYUNDAI | HX80/R2000W |
Features of our hydraulic breakers
1. New YLB series became lighter, stronger and more powerful than ever.
2. Enlarged the diameter of T/Bolt improved its durability.
3. Switched box housing to bending desigh for more durability.
4. Redesigned chisel pin has improved durability.
5. Enlarged chisel's diameter improved more powerful impact.
6. High energy and impact frequency(high performance).
7. High-performance optimized hydraulic unit.
8. Low maintenance, less down, long using life.
Company profile
Yantai Baicai Machinery Co., Ltd was estabilshed in 2004, our factory Mainly produces Soosan System hydraulic breakers, Furukawa system hydraulic breakers and spare parts in China. Supplying kinds of Cylinder Assy's to home and abroad.
Specializing in R&D Heavy-duty hydraulic breakers, we already successfully developed 210mm and 230mm heavy duty breakers in 2012. We choose material strictly and learn advance technology from Korea every 3 months also build a professional after-sale service team.
Export standard parts:
Two chisels,two hoses,one set of Nitrogen Charging kit, Nitrogen bottle and pressure gauge, one tool box with necessary maintenance tools and operation manuals as well.

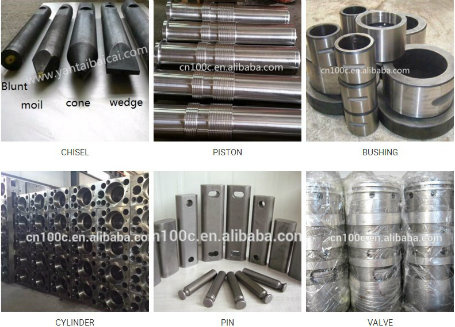

Spare parts
We provide various types of accessories for breaker, each part is carefully quality controlled. When clients need to update or repair hammer, insure that easy and accurate to install, all the spare parts are higher cost performance, help you more competitive in the market.
Exhibition show
2016 AMERICAN INTERNATIONAL MINING MACHINERY EXHIBITION
BAUMA CHINA
Advantage
1.Suitable for all models of excavator,skid steer loader and backhoe loader.
2.We will make or design hydraulic breakers as customer requests.
3.Because we are a manufacture and trading company ,the highest quality, competitive price and a perfect after-sales service should be provided to our customers.
Contact: Grace Wang
Tel:0086 18653503183
