PTFE Expansion Joint Vacuum Resistance
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
Vacuum Resistance |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Diameter(Mm): |
Dn15-Dn1600 |
| Nominal Bore(Inch): |
Nps1/2-Nps64 |
| Standard: |
JIS |
| Connection: |
Flange |
| Material: |
PTFE |
Product Description
PTFE Expansion Joint Vacuum ResistanceWe manufacture individually designed PTFE bellows for several applications. They are universally resistant against chemicals and high temperatures and may be modified for special cases of operation, e.g. with metal threaded bushings, flanges and inserts. Bellows differ in their manufacturing processes, functions and loading capacities. They may be used for the compensation of expansion and vibration, as a rod protection in corrosive environmental conditions, for flow of fluids in chemical and pharmaceutical applications and in control and stop valves. They are available with round, angular or sharp folds
Use occasion: It can be used to eliminate the extension of pipeline, container or equipment caused by climate change or swell or displacement caused by other reasons; And used as the vibration-relief device in the access of pump or the two ends of other high frequency machine to reduce or eliminate the vibration; Also used to absorb the deviation between design and actual installation.
Excellent performance: It solves the problem that the metal compensator has bad compensation ability and corrosion resistance to reduce the enterprise cost and promote the production benefits; Besides, it is reliable and has compact structure and high compensation ability, which can extend the using life of pipeline.

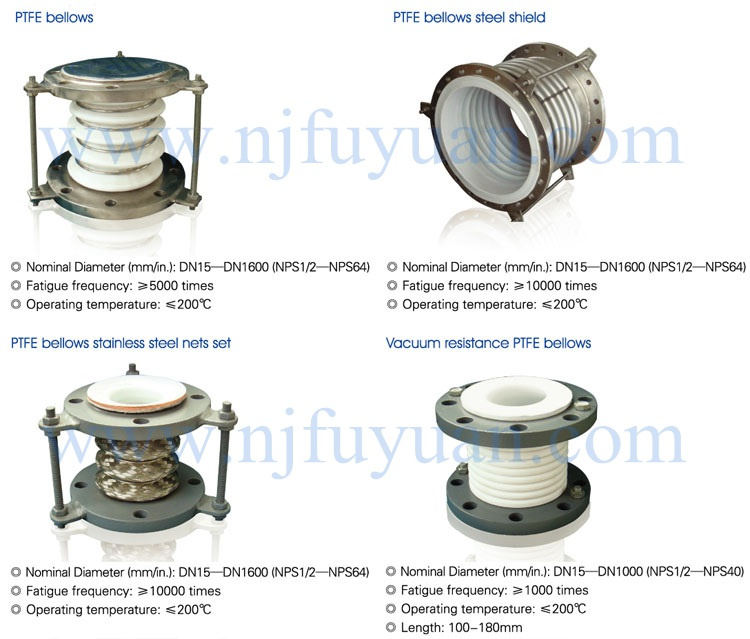

PTFE Bellows (Normal type):
l Nominal Diameter (mm/in.): DN 15~DN1600 (NPS1/2~NPS64)
l Fatigue frequency:≥5000 times
l Operating temperature:≤200°C
PTFE Bellows with steel shield: TYPE A
l Nominal Diameter (mm/in.): DN 15~DN1600 (NPS1/2~NPS64)
l Fatigue frequency:≥10000 times
l Operating temperature:≤200°C
PTFE Bellows with stainless steel nets: TYPE B
l Nominal Diameter (mm/in.): DN 15~DN1600 (NPS1/2~NPS64)
l Fatigue frequency:≥10000 times
l Operating temperature:≤200°C

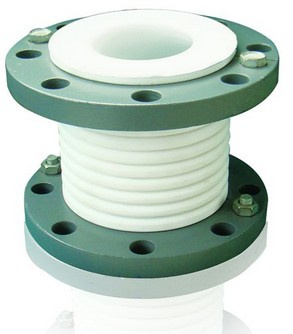

PTFE Bellows for Vacuum resistance (Negative pressure):
l Operation Pressure: -0.1MPa(-1bar)
l Nominal Diameter (mm/in.): DN 15~DN1000 (NPS1/2~NPS39)
l Fatigue frequency:≥10000 times
l Operating temperature:≤200°C
Special pieces of specific or non standard size can be manufactured on request.
As an expert manufacturer and supplier of chemical equipment and machinery since 2003,
Nanjing Fuyuan Chemical pipeline Equipment Co., Ltd continually develops and provides quality-stable chemical equipment to solve the problem of considering the need of both corrosion resistant and cost saving facing in process engineers, which have been widespread used in chemical, petrochemical, agrochemical, pharmaceutical, fine chemical, metallurgy etc. It has the fixed assets of over 50 million Yuan and the land area of 57000sqm.
The company has 308 staffs and 56 technical management personnel, including one mechanical equipment expert of Canada, one chemical technical expert of Japan.
Its high quality product are presently serving all parts of China and has been exported to America, Brazil, Japan, Korea, Mexico, Malaysia, Israel, Iran, Russia and other countries and regions.
The staff of high-trained technical personnel is willing to provide practical, low cost solution for most process problems.
The line of process equipments that is following:
1. Fluorocarbon Lined Equipment: PTFE lined Pipe and Fittings, Elbow, Tee, Cross, Reducer
2. PTFE/FEP lined Sight Glass, Bellows, Armored Expansion Joint and FEP lined Valves
3. Glass lined Equipment: Condenser, Film evaporator, Heat Exchangers
Other Plastic lined Equipment: Pipe and fittings, Columns, Reactors, Vessels, Tanks etc
4. Lining Materials: PTFE, FEP, PFA, PO, PE, PP and ECTFE (HALAR)
We pride ourselves in offering high levels of customer service and high integrity products. Our dedicated team will make us a world leader in sub-contract fluorocarbon PTFE lining to the OEM market.
Adhering to the operation principle of "Scientific management, all devotion, customer satisfaction and perfection pursuit" and the permanent commitment of "Be honest to every customer", we expect your precious opinions and welcome your guidance.
In the future, Nanjing Fuyuan Chemical Pipeline Equipment Co. Ltd will continue to constantly supply the best product and service, teaming with business partners to create a World-Class chemical equipment supplier.
Fuyuan is looking for global agent now!
