| Prod Model: |
FB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn25~2000 |
| Materials: |
A105+PTFE |
| Bellow: |
PTFE/PFA |
| Connection: |
Flange |
| Material: |
A105+PTFE |
Product Description

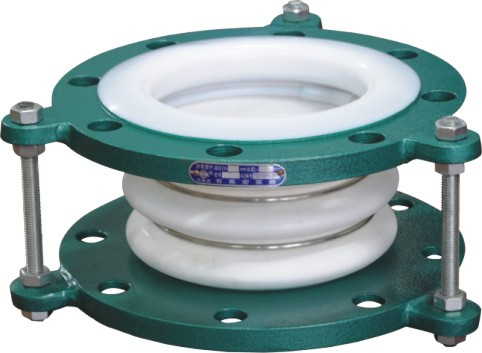

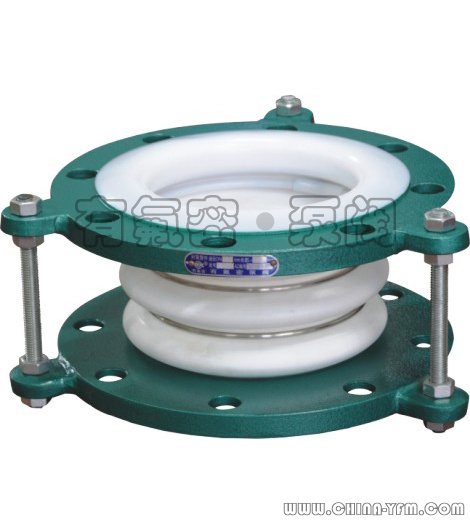

PTFE Lined Flange Compensator Expansion Joint
Technical Specification
Design and Manufacture Standard: HG/T 3985 ,GB/T 15700
Flange Standard: ASME B 16.5 ,HG/T 20592,DIN,JIS
Product Specification
Body Material: A105 ,SS304,SS316,SS316L
Lining Material: PTFE , EPDM+PTFE ,SS304+PTFE
Nominal Diameter: 1"-80"(DN25~DN2000)
Pressure Range: Class 150 , PN10 ,PN16
Product description:
1.Expansion joint is also called bellows or compensators, which are designed for axial, lateral and angular movements, misalignment and/or vibration in piping systems.
2.Expansion joints come with three convolutions as a standard. More than three convolutions can be customized and the more convolutions, the more movement an expansion joint will provide. Various reinforcements of rings and outer shells are available for high pressures, temperatures or vacuum performance. Tie rods and hinges are designed to limit maximum and minimum movements or preventing movement altogether in certain planes.
3.If there is no specific requirement for flange, it will be as per ANSI B16.5 and HG/T 20592 PN1.0MPa standard.
4.Lining material: PTFE, PFA etc.
5.Nominal diameter: DN25~DN3000
When the size of expansion joint is bigger than DN300, the type with stainless steel housing for vacuum resistant is recommend.
Pressure Range: Class 150 , PN10 ,PN16
We have more than 10,000 pcs on stock,which can be delivery in time and suitable for project.
Warmly welcome to visit our company.

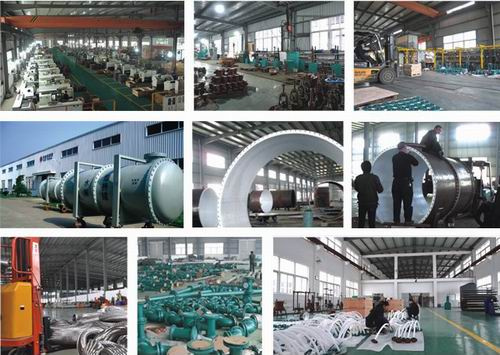

Established in 1989, Youfumi (YFM) manufactures and supplies PTFE lined products for the chemical, oil, gas, and pharmaceutical and associated process industries. Nowadays YFM is one of the leading manufacturers and wholesaler of PTFE lined products in China.
YFM specializes in PTFE/PFA/FEP/ETFE/PO/PP lined Butterfly valves, Ball valve and Plug valve, and also supplies PTFE lined gate valve, globe valve, check valve, diaphragm valve and all kinds of PTFE lined piping, which are tested to the latest manufacturing specifications of American & International standards organizations such as ANSI/ASME/DIN/JIS.
With the advanced production technology and excellent performance, many products of YFM become an outstanding symbol of anti-corrosion products in the fierce market competition in the industry.
YFM earned excellence reputation as a major supplier of corrosion-resistant forged valves for chemical and got many honours from both domestic and overseas. As for quality guarantee, YFM has acquired the CE certification and ISO9001 International Quality System Certification.
We put the product quality in priority all the time, in order to provide our customers with high quality products at a great value. So quality is our commitment, while competitive price, timely delivery and service is our promise to our valued customers.
Till now our products have sold around worldwide including America, Europe, Southeast Asia, Middle East and Africa. We have developed very good relationship with distributors, end users of worldwide. We sincerely welcome you to visit our company and look forward to serving your critical project needs. Hope we can become one of the best partners in your work.
Please visit our contact page to send us your requirements. Alternatively, please choose an option from the menu on the left to find out more about our PTFE/PFA lined products and services.
