Punch Press Machine/Power Press for Aluminum Sheet Hole
| Price: |
US $ 1000-69999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
JH21 |
| Safety Protection: |
Photoelectric Protection |
| Electrical: |
Chnt |
| Body: |
Cast |
| Function: |
Metal Processing |
| CNC Feeding System: |
Available |
| Worktable: |
Inclinable |
| Material: |
Aluminum, Ss, Ms, etc |
| Application: |
Metal Process |
| Color: |
Customizable |
| Product Name: |
Punch Press Machine/Power Press for Aluminum Sheet |
| Type: |
Deep Throat Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description
Punch Press Machine/Power Press for Aluminum Sheet Hole
With high rigidity design in machine frame, welded of quality steel sheet and treated by tension elimination, improve stability and reliability of precision of the machine.
Keep the transmission center and machine center in uniformity, guarantee the precision of pressing.
In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical two slid boards with balancer.
The crank, gear, connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable function.
Reliable high sensitive clutchtbrake and international up-to-date twin electromagnetic valve, overloading protector can guarantee the precision and safe production.
| No | Name | JH21-80T |
| 1 | Nominal force(KN) | 800 |
| 2 | Nominal force stroke(mm) | 5 |
| 3 | Slider stroke(mm) | 140 |
| 4 | Slider stroke times(time\min) | 60 |
| 5 | Maximum height for die loading | 320 |
| 6 | Adjustment range for die loading height | 80 |
| 7 | Distance between slider center line and the fuselage | 300 |
| 8 | Worktable size | 580*1000 |
| 9 | Work table blanking hole size | D2D200*40*D180 |
| 10 | Slider bottom size | 420*560 |
| 11 | Shank hole size | D50*Depth80 |
| 12 | Distance between columns(mm) | 640 |
| 13 | Bolster thickness(mm) | 120 |
| 14 | Tilting degree(degree) | 1640*1280*2700 |
| 15 | Motor(kw) | 7.5 |
Main Features

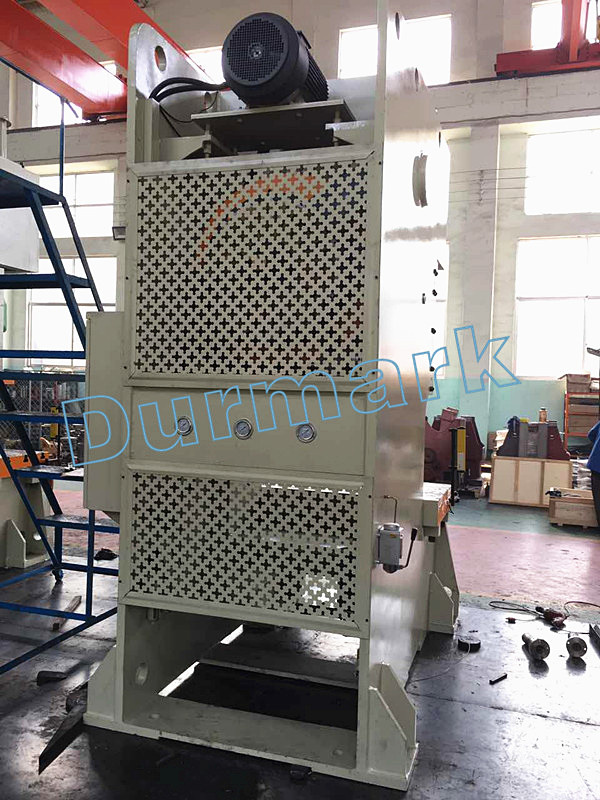

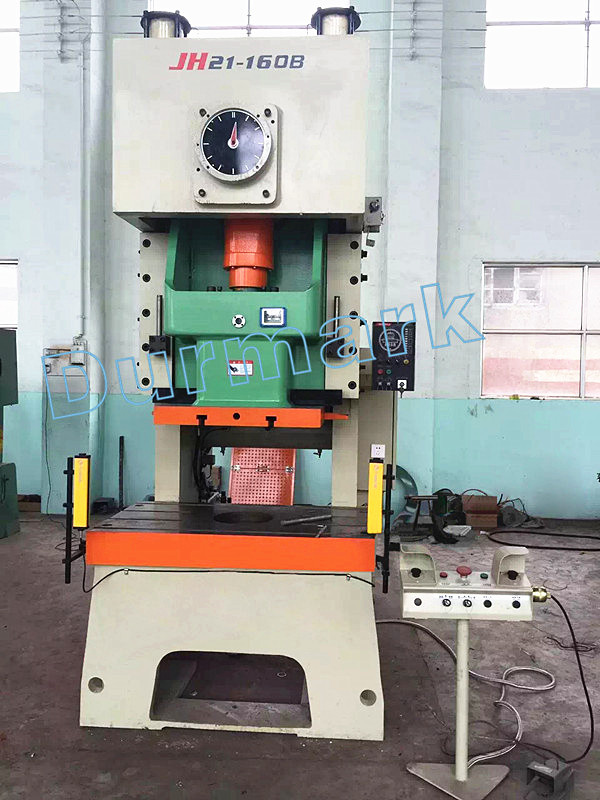

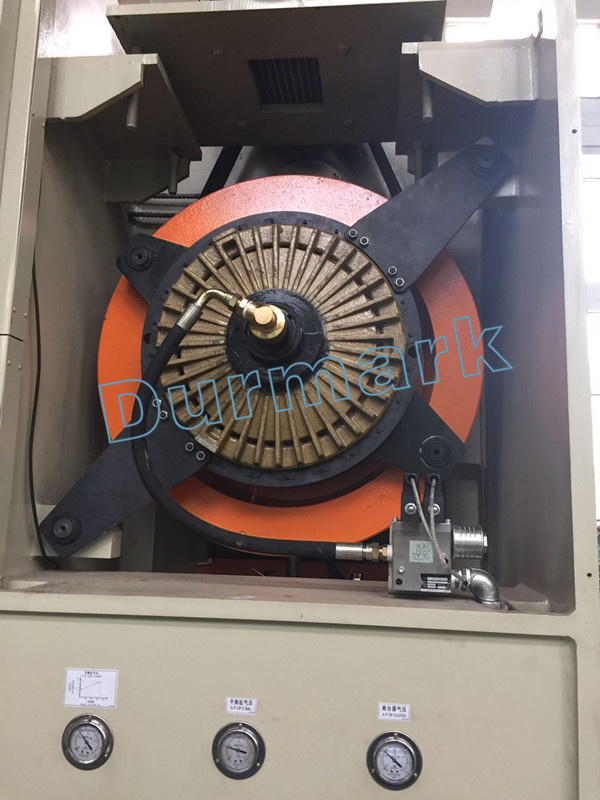

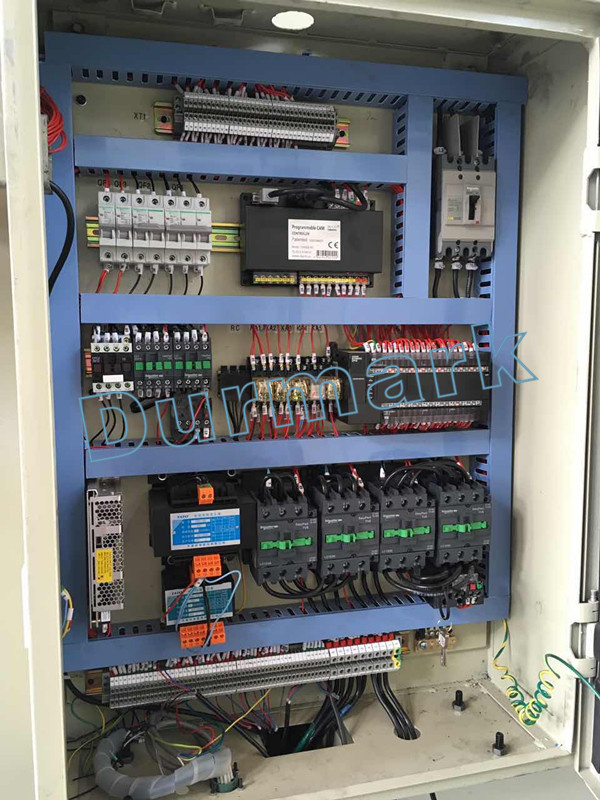

1.Steel welded body, tempering treatment, high rigidity, accuracy and stability;2.Vertical located crankshaft, compact structure;3.The crankshaft undergoes grinding treatment after high frequency quenching;4.Lengthened rectangular guideway with a surface of bronze plate;5.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise6.PLC control and imported safety dual valve;7.Wet clutch and hydraulic overload protector.Packing & Delivery Plastic film, wooden package, or as requirement.Delivery Detail: 15 daysDetailed Images

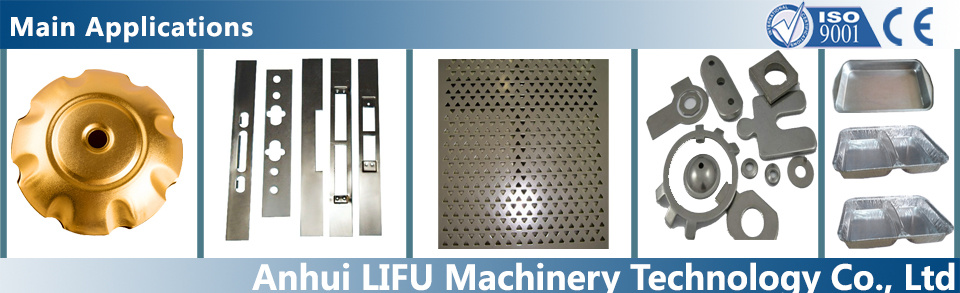

Main Application
Our ServicePre-sales Service:
1. Inquiry and consulting support.2. Sample testing support .3. Recommend the most suitable machine according to customer's purpose.4. Factory visiting welcomed.After-sales Service:
1. Training how to install the machine .2. Training how to use the machine .3. Warranty 1 year.4. Engineers available to service machinery oversea .FAQHow about your machine quality? We are worry about the quality.RE: Durmark company is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.Whether the machine price can be more discount?RE:1. Durmark always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.Contact
