| Price: | US $ 8000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Money Gram,Western Union |
| Prod Model: | JD-80A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

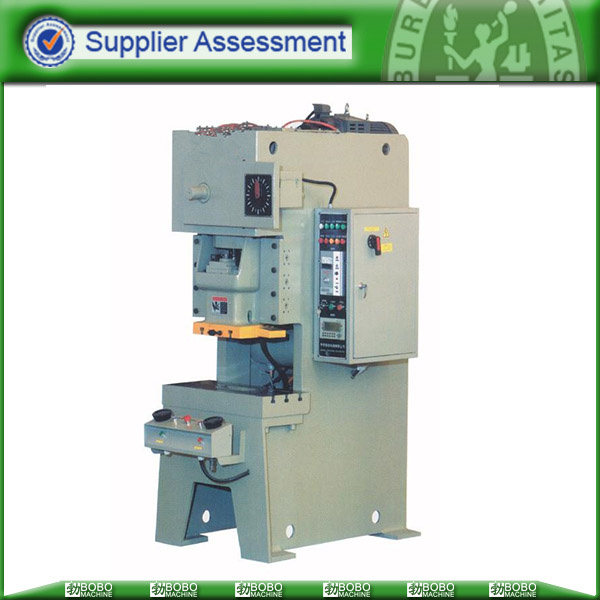

| Type: | General Punching Machine |
| Controlling Mode: | CNC |
| Automatic Grade: | Automatic |
| Power Source: | Mechanical Drive |
| Precision: | High Precision |
| J21-63A | JD21-63A | J21-80A | JD21-80A | JD21-100A | JD21-125A | JC21-160 | ||
| Capacity | KN | 630 | 630 | 800 | 800 | 1000 | 1250 | 1600 |
| Nominal Force | mm | 8 | 8 | 9 | 9 | 10 | 10 | 6 |
| Slide Stroke | mm | 120 | 120 | 130 | 130 | 140 | 140 | 160 |
| SPM | Min-1 | 50 | 50 | 45 | 45 | 38 | 38 | 40 |
| Max.Die Height | mm | 300 | 300 | 350 | 320 | 320 | 320 | 350 |
| Die Height Adjustment | mm | 80 | 80 | 100 | 100 | 100 | 100 | 100 |
| Between Slide Center & Frame | mm | 300 | 300 | 300 | 300 | 380 | 380 | 380 |
| Bolster(FB×LR) | mm | 570*760 | 570*760 | 580*860 | 580*860 | 710*1100 | 720*1200 | 740*1300 |
| Bolster Opening (Up Hole Dia.× Depth×Low Hole Dia.) | mm | Φ200*45*Φ180 | Φ200*45*Φ180 | Φ200*45*Φ180 | Φ200*45*Φ180 | Φ260*50*Φ220 | Φ260*50*Φ220 | Φ300*50*Φ220 |
| Bolster Thickness | mm | 90 | 90 | 100 | 100 | 120 | 120 | 150 |
| Bolster Opening (Dia.×FB×LR) | mm | Φ280*220*320 | Φ280*220*320 | Φ280*220*380 | Φ280*220*380 | Φ320*250*420 | Φ320*250*420 | Φ470 |
| 220*250 | 220*260 | 260*290 | 260*290 | |||||
| Slide Area(FB×LR) | mm | 280*320 | 280*320 | 280*380 | 280*380 | 420*560 | 420*560 | 580*770 |
| Shank Hole (Dia.×Dpth) | mm | Φ50*80 | Φ50*80 | Φ60*75 | Φ60*75 | Φ60*80 | Φ60*80 | Φ65*85 |
| Between Columns | mm | Steel 470 | 320 | Steel 515 | 410 | Steel630 | Steel 620 | 730 |
| Casting 320 | Casting 410 | Casting 580 | Casting 580 | |||||
| Motor Power | kw | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 15 |
| Outline Size(FB×LR×H) | mm | 1550*1410 | 1550*1410 | 1610*1470 | 1925*1470 | 1960*1335 | 2060*1600 | 2200*1550 |
