Punching Machine H Frame Straight Power Press

Name: Punching Machine H Frame Straight Power Press
Brand: tool-buy.com
SKU: 750326285
Availability: InStock
Rating: 4.4 (113 reviews)

Price:	US $ 10000-20000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shanghai Yingxin World Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	JW31
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Type:	Straight Side Press
Applications:	Auto Parts, Hardwares
Capacity Range:	25ton to 400ton
Power:	380V/50Hz/3phase
Clutch And Brake:	Wet Type Combined Pneumatic Clutch and Brake
Control System:	PLC
Lubrication System:	Auto Grease Lubrication Pump
Slide Guide:	8 Faces Higher Precision
Delivery Time:	30 Days
Warranty:	One Year
Type:	General Punching Machine
Controlling Mode:	CNC
Automatic Grade:	Automatic
Power Source:	Pneumatic
Precision:	High Precision

Product Description

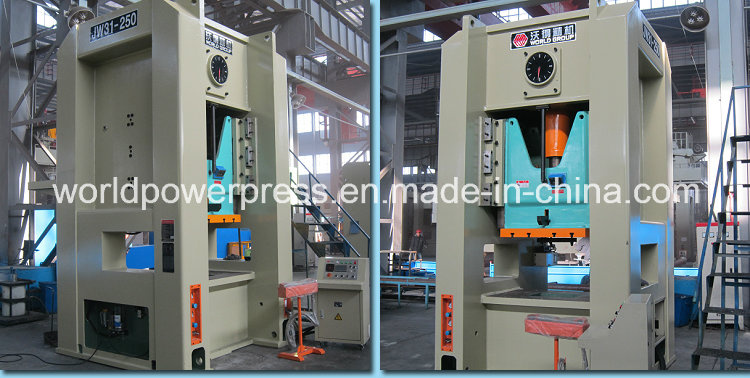

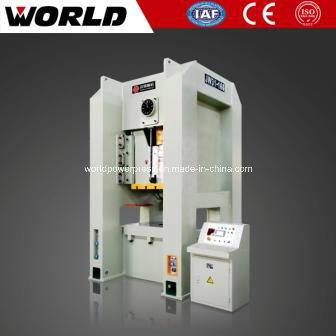

punching machine, single point straight press

JW31 straight side single crank press is applicable to light, thin material, for single, and progressive die application in blanking, piercing, bending, forming, interlink with ROT line or transfer unit. High rigidity frame, applications suitable for various kinds of stamping works.

Features:

1. The steel fabricated press frame in one piece and annealed for full stress-relieve.

2. Oil cooled combined clutch and brake.

3. Extra long 8 faces guide rails for high precision.

4. PLC control, hydraulic overload protected, auto lubrication system. 5. Motorised slide adjustment.

Standard Equipments: Optional Equipments:

1) Wet clutch 1) Dry clutch

2) PLC 2) Light curtain

3) Hydraulic overload protecting pump 3) Inverter

4) Touch screen 4) Variable speed motor

5) Cam controller 5) Foot pedal

6) Die height adjusted motor (JH21-60 and upon models) 6) Cushion

7) Auto lubrication system 7) Auto feeding shaft

8) Manual lubrication system 8) NC feeder

9) Double hand control panel 9) Die quick change device

10) Electronic crankshaft angle indicator

11) Predetermined counter

12) Balance cylinders for slide and upper die

13) Work light

14) Joint for air

15) Joint for miss-feeding

16) Absorbing pads

Warranty and service:
- one year warranty for whole press.
- all spare parts are available as we produce most of the parts in our factory.
- it is easy to get the electric parts as all are international famous brands.
- we can provide technical support via email, phone or video.
- we can send out engineers for service, installation or training with reasonable additional cost.
- English operation and maintenance manual is provided with the press.
- All safety warning tags and control panels are in English.

Our products range:
- J23 and JH23 inclinable eccentric press, capacity from 6.3ton to 125ton.
- JH21 c frame single crank press, capacity from 25ton to 400ton.
- JH31 semi-straight side single crank press, capacity from 110ton to 400ton.
- JW31 H frame single crank press, capacity from 110ton to 400ton.
- JH25 c frame double crank press, capacity from 110ton to 315ton.
- JW36 H frame double crank press, capacity from 110ton to 500ton.
- JX36 close type big table press with double crank, capacity from 400ton to 1000ton.
- JS36 close type gear press, capacity from 300ton to 1250ton.
- JS31 close type gear press, capacity from 160ton to 1000ton.
- hydraulic shearing machine
- hydraulic press brake and cnc press brake

Specifications of JW31 power press:

ITEM		UNIT	JW31-160	JW31-200	JW31-250	JW31-315	JW31-400	JW31-500
Nominal Capacity		KN	1600	2000	2500	3150	4000	5000
Slide Stroke		mm	180	200	220	220	250	250
Slide Strokes	Fixed	spm	40	35	30	30	25	20
Slide Strokes	Variable(optional)	spm	25-40	25-35	20-30	20-30	18-25	15-20
Max.Die Shut Height		mm	400	450	500	550	600	650
Die Shut Height Adjustment		mm	110	110	120	120	120	120
Side Hole Size	F-B	mm	650	750	800	850	900	1000
Side Hole Size	Height	mm	350	370	430	480	520	650
Distance Between Uprights		mm	1100	1200	1300	1350	1450	1600
Bolster Size	F-B	mm	650	750	800	850	900	1000
	L-R	mm	1000	1100	1200	1250	1350	1500
	Thickness	mm	165	180	190	190	200	220
Slide Bottom Size	F-B	mm	600	700	750	800	850	950
Slide Bottom Size	L-R	mm	750	850	950	1000	1100	1250
Bolster Surface Height		mm	1000	1100	1200	1200	1200	1200
Overall Dimensions	F-B	mm	2400	2600	2820	2920	3050	3340
	L-R	mm	1900	1960	2250	2150	2370	2700
	Height	mm	3400	3850	4300	4400	4600	4800
Motor Power		KW	15	18.5	22	30	37	45
Weight(approximate)		kg	18000	23500	29500	37500	39500	51000

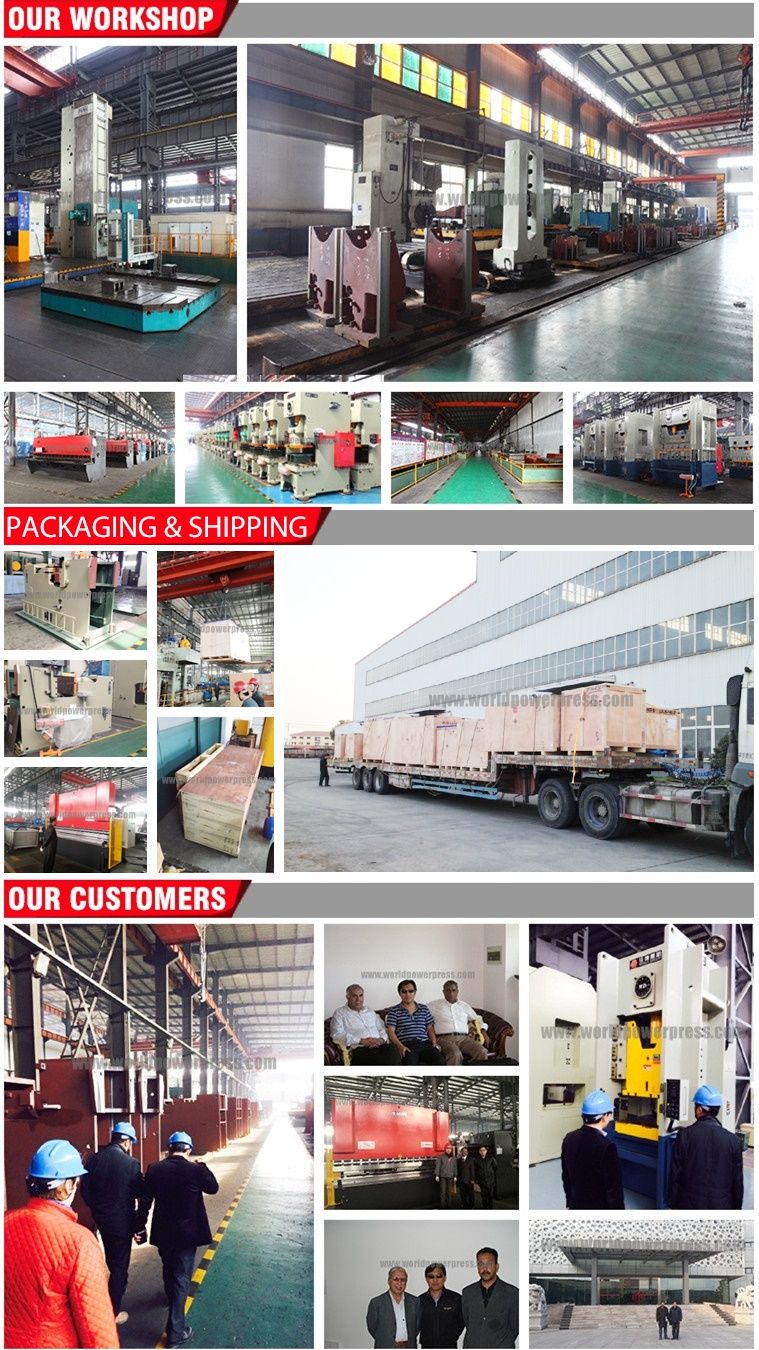

Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.

We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.

We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.

Installation Support

We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
