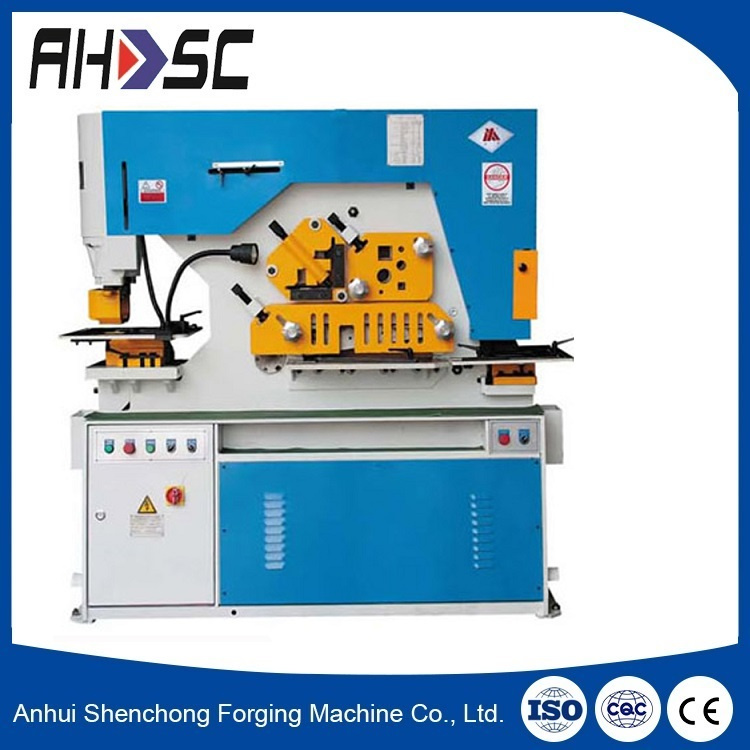

Punching Shearing Cutting and Punching Machine, Power Punching Machine
Price: |
US $ 4800-5300/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
Q35Y Series |
Machine Body: |
Steel Plate Welded Structure |
Work Table: |
Casting |
Crankshaft: |
45 Steel Forgings, Hardened Surface |
Flywheel: |
Casting Ht200 |
Main Power: |
Siemens From Germany |
Hydraulic System: |
Rexroth Germany |
Switches, Buttons, Lights: |
Schneider Electric SA |
AC Contactor: |
Schneider Electric SA |
Votage: |
220V/380V/415V(Optional) |
Safety: |
Ce and IP54 |
Type: |
Deep Throat Punching Machine |
Controlling Mode: |
Artificial |
Automatic Grade: |
Automatic |
Power Source: |
Mechanical Drive |
Precision: |
Normal Precision |
Product Description

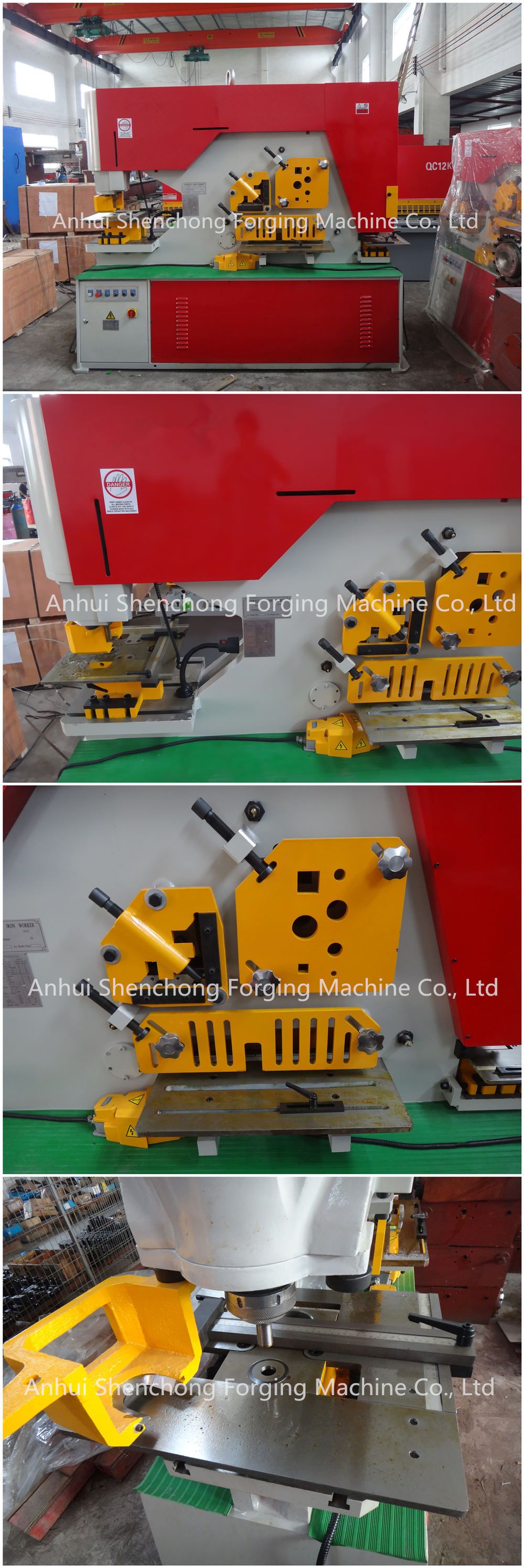

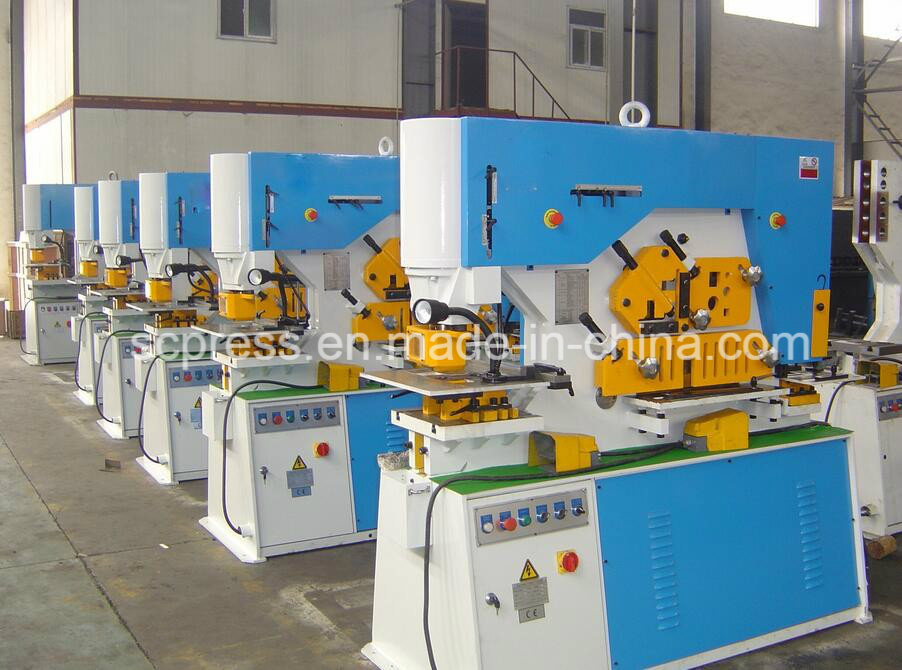

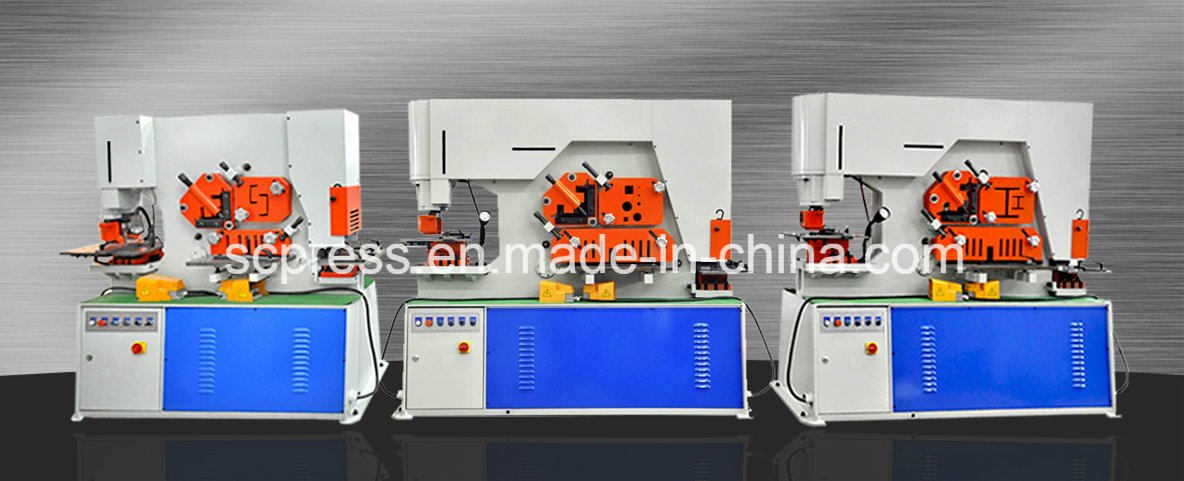

MeHydraulic Iron Worker Multifunction punching and cutting Machine The structure of the Hydraulic Iron Worker |
Q35Y Series Hydraulic Iron Worker, Totally European design,The machine are strong and easy to use machines which are able to can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on. Bamboo Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine Will serve any grueling fabrication shop for decades to come. The machine by the European Union CE certification and ISO quality system certification |
Hydraulic System 1.Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch - Rexroth,Germany. 2.All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance 3.Being able to work under rated load continuously,stable working and high precision. |
Electric & Safety Interlock: |
- 1.Electrical components are from European,in accordance with international standards,reliable safety,long life,good anti-interference ability,a
- 2.radiation unit is fitted in electrical cabinet.
- 3.Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
- 4.Emergency stops on machine and foot switch for safety,Foot pedal conforming to CE regulation.
|
2.Slider is a cast box structure and rigid. Collapse of the slider-style installation of pressure overload protection device, simple structure,if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage. |
3.Die height adjustment of slider with manual mode, using V shaped slider guide rail, easy adjustment |
Technical SpecificationModel | Unit | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
Pressure | Tons | 55 | 85 | 120 | 140 |
Max.cutting thickness | mm | 16 | 20 | 25 | 30 |
Plate strength | N/mm2 | ≤450 | ≤450 | ≤450 | ≤450 |
Cutting angle | degree | 7° | 8° | 8° | 8° |
Sheraing size of one stroke) | mm | 16*250 or 8*400 | 20*330 or 10*480 | 25*330 or 16*600 | 30*355 or 20*600 |
Ram stroks | mm | 80 | 80 | 80 | 80 |
Number of strokes | cpm | 8 | 8 | 6 | 6 |
Throat depth | mm | 300 | 355 | 400 | 600 |
Punching thickness | mm | 16 | 20 | 25 | 26 |
Max.Punching diameter | mm | 25 | 30 | 35 | 38 |
Power of main motor | kw | 4 | 5.5 | 7.5 | 11 |
Overall dimensions(L*W*H) | mm | 1640*730*1770 | 1860*800*1900 | 2355*960*2090 | 2680*1040*2300 |
Weight of machine | Kg | 1700 | 2000 | 4800 | 6800 |
Profile | Round Bar | Square Bar | Equal Angle | T-Bar | joistq | Channel |
90°Shearing | 45°Shearing | 90°Shearing | 45°Shearing |
Q35Y-16 | 45mm | 40*40mm | 125*125*12mm | 50*50*5mm | 120*120*12mm | 60*60*8mm | 126*74*5mm | 126*53*5.5mm |
Q35Y-20 | 50mm | 50*50mm | 140*140*12mm | 50*50*5mm | 140*140*12mm | 70*70*10mm | 160*86*8mm | 160*60*6.5mm |
Q35Y-25 | 60mm | 50*50mm | 160*160*14mm | 50*50*5mm | 160*160*14mm | 80*80*10mm | 200*102*9mm | 210*75*9mm |
Q35Y-30 | 65mm | 55*55mm | 180*180*16mm | 60*60*6mm | 180*180*16mm | 80*80*10mm | 280*124*12mm | 280*86*12mm |
ShenChong Forging Machine Co., Ltd. is committed to bringing high standard of professionalism, integrity and service in order to achieve a high reputation in the manufacturing & processing industry. We are a professional manufacturer of National Mechanical Industry, which produces press brake, shearing, section forging machines. The registered capital is RMB 6, 000, 000.
Shenchong occupies 20, 000 square meters workshop and office place. At present, the Company is staffed with 200 employees, 70% of which have junior college education background. During the producing of high-tech machine in the long run, the Company is not only able to supply a full range of CNC products, but also foster a strong skilled and talented team. The Company boasts to have its own R&D facilities, the strongest R&D capabilities in China.
Based on the advanced international management mode, our company brings pays more attention to the machine designs and quality of raw materials. In the process of prospecting its modern corporate system, the Company has attached importance on and given full play to the large-scale production, specialization in its development, standardization of its management, network construction for its sales and distribution, full and complete product lines in R&D, independent IPR, quality of services and knowledge increase of the employees; And it has gained advantages in science and technologies, quality and market share through state-of-the-art management, technical innovationm, equipment. We believe that we are a competitive supplier in our field and we warmly welcome your inspection.
