Push and Pull Type Hydraulic Quick Coupling
| Price: |
US $ 3.0-4.0/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
S4, S5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: 04,06,08,10,12,16,20,24,32: |
Surface Finished: White or Yellow Zinc |
| Type: |
Hydraulic Power Units |
Product Description

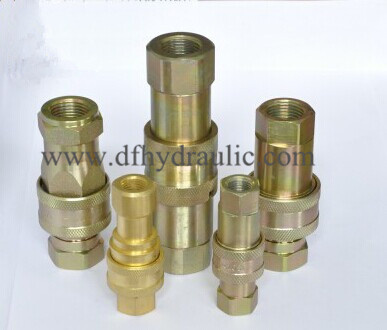

Push And Pull Type Hydraulic Quick Coupling(Steel)
Applications: The S5 and S5C Series brings to the industry a proven design for use on construction equipment, forestry equipment agricultural machinery, and oil tools.
Specifications:
Body Size(in)1/2
Rated Pressure(PSI)3000
Rated Flow(GPM)12
Temperature Range(std seals)-20C to +100C
Standard seal material is NitrileBuna-N(Nitrile)
S5 and S5C Series Couplings feature:
1. Double acting sleeve for one handed push-to-Connect operation when coupler is clamp or bulkhead mounted.
2. Poppet valves available to prevent uncoupled leakage.
3. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
4. Critical parts are hardened for durability.
5. Dependable ball-locking mechanism holds the mating halves together.
6. Socket and plug are precision machined from solid bar stock.
7. LSQ-S5 series conforms to the standard of ISO5675.8. Compatible with PAPKER 4250 Series, FASTER CPV-CNV Series.
Performance: Test Fluid: Oil-200SUS, 1GPM=3.78L/Min, 1PSID=0.0069MPa.

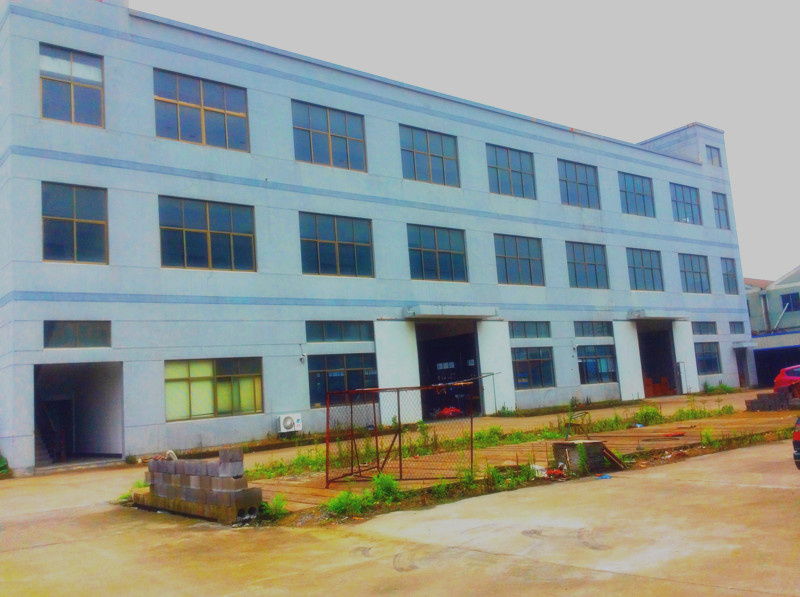

Yuyao DingFeng HyDraulic Co., Ltd. As a professional manufature and exporter, Yuyao Dingfeng Hydraulic Co., Ltd was established in 2007, located in the south bank of Hangzhou Gulf Bridge which is the longest bridge in the world, near the NingboBeilun Port, have convenient transportation.
We can produce all kinds of EATON and SAE standard fittings and adapters.
We specialized in exploiting, manufacturing and selling fluid flow system. Dingfeng products includes: All kinds of hydraulic hose fittings, adapters, hydraulic hose, high pressure hose assemblies and other metal parts, as well as the agent for related fluid joint products. We also provide OEM service.
These products are mainly used in aerospace, automotive, shipbuilding, medicine, chemicals, petroleum and other areas.
We are dedicating to manufacture good quality products and provide high level service to win the market and our customers' trust. Our products are very popular in American, Europe, Japan, Australia and so on. Welcome new and old customers, from home and abroad, to invest and cooperate with us.
With the belief of "keep improvement, pursue higher", we strive to create a splendent future with you by our excellent products and satisfy service!
